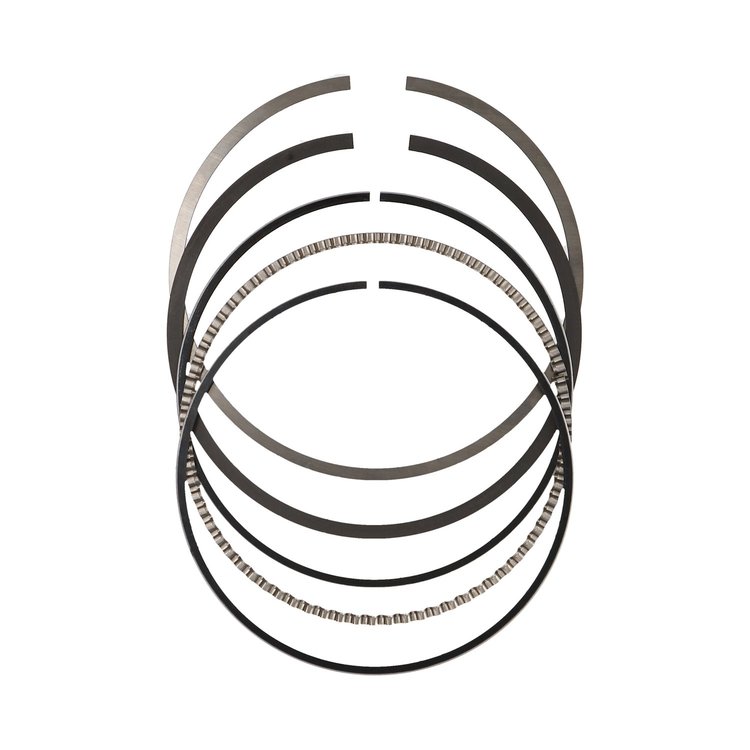

JE Pistons JC11F6-3405 Features:

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Bore Diameter: 3.405 in.
• Ring Type: 3 Ring
• File Fit: Yes
• Top Ring Axial Height: 1.50 mm
• Top Ring Radial Width: 0.153 in.
• Top Compression Ring Thickness: 0.0591 in.
• Top Ring Facing Material: Chrome
• Top Ring Material: Ductile Iron
• Top Ring Shape: Barrel Face, D-wall, Neutral
• Second Ring Axial Height: 1.50 mm
• Second Ring Radial Width: 0.161 in.
• Second Compression Ring Thickness: 0.0591 in.
• Second Ring Facing Material: Phosphate
• Second Ring Material: Iron
• Oil Ring Axial Height: 4.00 mm
• Oil Ring Radial Width: 0.145 in.
• Oil Ring Thickness: 0.158 in.
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: Full Seal, Flex Vent
• Ring Set Thickness: 0.0591 in. Top x 0.0591 in. 2nd x 0.158 in. Oil
• Engine Type: ICE
