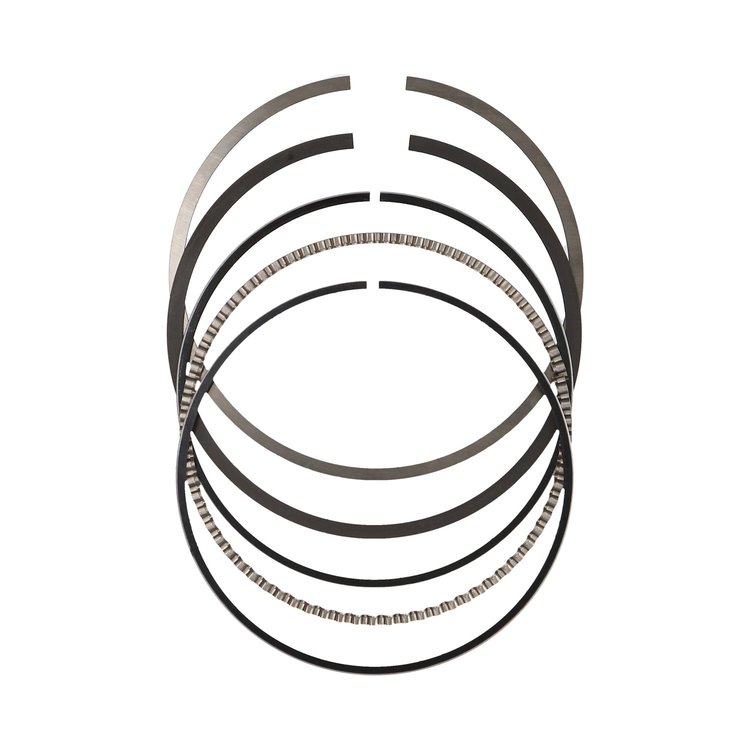

JE Pistons JG1004-3366 Features:

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Bore Diameter: 3.366 in.
• Ring Type: 3 Ring
• File Fit: Yes
• Top Ring Axial Height: 1.00 mm
• Top Ring Radial Width: 0.126 in.
• Top Compression Ring Thickness: 0.0394 in.
• Top Ring Facing Material: Nitride
• Top Ring Material: Carbon Steel
• Top Ring Shape: Barrel Face, Back Cut, Neutral
• Second Ring Axial Height: 1.20 mm
• Second Ring Radial Width: 0.142 in.
• Second Compression Ring Thickness: 0.0472 in.
• Second Ring Facing Material: Phosphate
• Second Ring Material: Ductile Iron
• Second Ring Shape: Napier, Back Cut, Neutral
• Oil Ring Axial Height: 2.80 mm
• Oil Ring Radial Width: 0.128 in.
• Oil Ring Thickness: 0.110 in.
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: Flex Vent
• Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
• Engine Type: ICE
