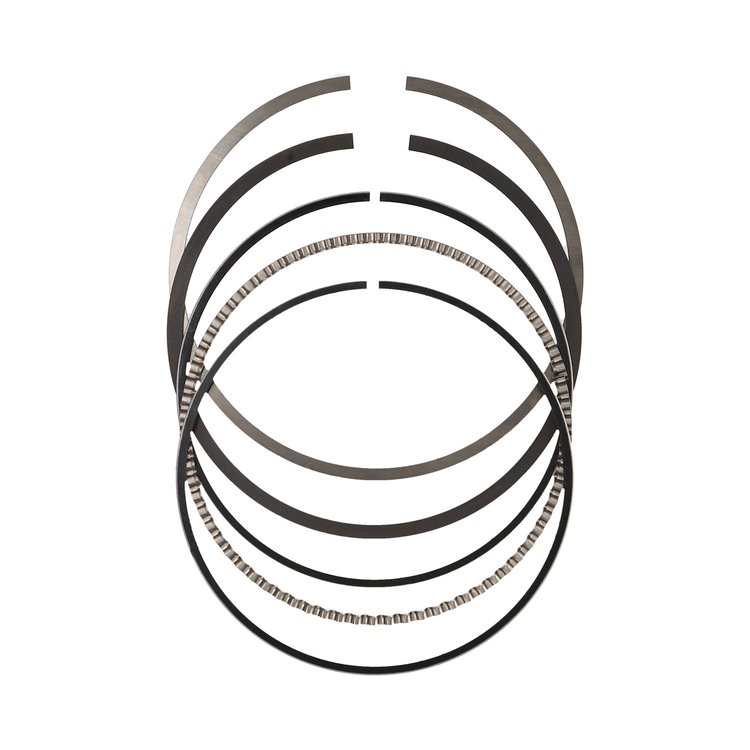

JE Pistons JG2704-3376 Features:

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Bore Diameter: 3.376 in.
• Ring Type: 3 Ring
• File Fit: Yes
• Top Ring Axial Height: 1.20 mm
• Top Ring Radial Width: 0.127 in.
• Top Compression Ring Thickness: 0.0472 in.
• Top Ring Facing Material: Nitride
• Top Ring Material: Carbon Steel
• Top Ring Shape: Barrel Face, Back Cut, Neutral
• Second Ring Axial Height: 1.50 mm
• Second Ring Radial Width: 0.155 in.
• Second Compression Ring Thickness: 0.0591 in.
• Second Ring Facing Material: Chrome
• Second Ring Material: Iron
• Second Ring Shape: Tapered Undercut-NonContinous Neutral
• Oil Ring Axial Height: 3.00 mm
• Oil Ring Radial Width: 0.117 in.
• Oil Ring Thickness: 0.118 in.
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: SS50U Style
• Ring Set Thickness: 0.0472 in. Top x 0.0591 in. 2nd x 0.118 in. Oil
• Engine Type: ICE
