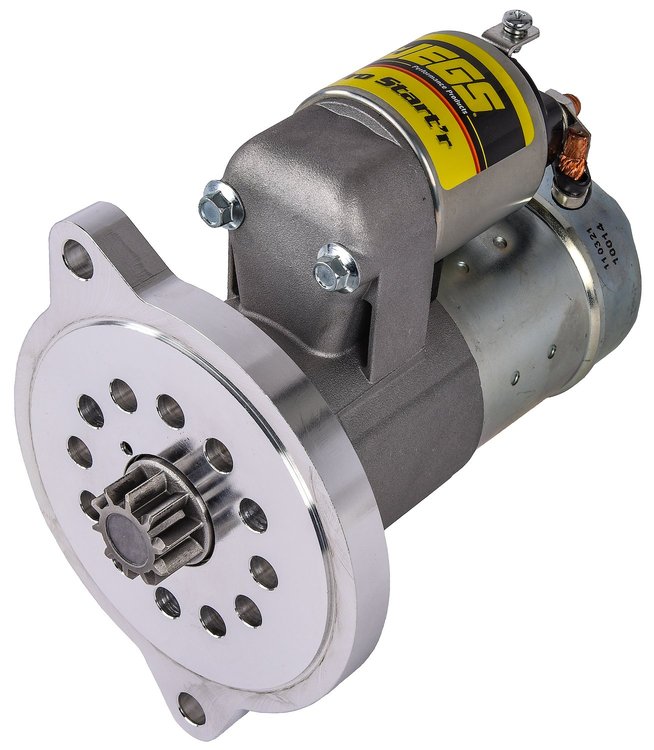

Hitachi-Style Mini Starter for Small Block Ford 289, 302, 351W

Vehicle Info Needed

JEGSPART NUMBER: 555-10014

Hitachi-Style Mini Starter for Small Block Ford 289, 302, 351W

Name: Hitachi-Style Mini Starter for Small Block Ford 289, 302, 351W
Brand: JEGS
SKU: 555-10014
Price: 164.99 USD
Availability: InStock

^$164⁹⁹$173.99You Save$9.00

More than 10 available

Ships Today

Lowest Price Guarantee

Hitachi-Style Mini Starters
Small Block Ford

Mini Starter

Small Block Ford 289, 302 & 351W

157/164 Tooth

3/4 in. Offset Configuration

6:1 Gear Reduction

11:1 Compression

1.4 kW

1.7 HP

7.44 lbs.

Natural Finish

Complete your engine upgrade with a JEGS 10014 Hitachi-style mini starter for Small Block Ford. Producing up to 160 ft. lbs. of torque, this starter can easily crank engines up to 11:1 compression. This compact unit combines space-saving and high power output resolving two issues in one package.

JEGS 555-10014 Hitachi-Style Mini Starter Features:

Fits Small Block Ford 289, 302, and 351W engines
Fits both 157 and 164-tooth flywheels and flexplates
Cranks over engines with up to 11:1 compression ratio
Billet Aluminum adjustable mounting block with indexable rotation
Compact Design
Lighter in weight than factory starters at 7.44 lbs
Made with high-quality components
Includes (1) Shim (1/16 in. Thick)
3/4th ring gear depth, please verifywhat ring gear depth is correct for your application

JEGS 555-10014 Hitachi-Style Mini Starter Dimensions:

Overall: 6 1/2 in. W x 7 1/2 in. L x 5 in. H
Mounting hole spacing: 5 1/2 in.
Electrical post size: M8-1.25

Mini Starters with Mega Power

JEGS Heavy-Duty Mini Starters are designed with 1.4kW, a 3.7:1 gear ratio, full ball bearings, and the power to crank up to 16:1 compression engines. They will clear most oversized kick-out oil pans. Weighing around 12 pounds, these starters use an aluminum adapter with adjustable mounting positions. Shims and mounting hardware included

Part TypeStarter

Product LineJEGS Mini Starters

BrandJEGS

Package Height5.9

Package Width6.3

Package Length10.4

Weight8.0 PG

Part CategoryPerformance Parts

Starter FinishNatural

Starter RotationStandard

Starter StyleMini Hitachi

Maximum Recommended Compression Ratio11.0:1

Mounting Block MaterialAluminum

Flywheel/Flexplate Tooth Quantity157/164-Tooth

Adjustable Mounting BlockYes

Part FitmentSemi Universal

RemanufacturedNo

Gear Reduction Ratio6.10:1

NotesStarter has a 3/4 in. offset and fits applications with automatic transmissions using a 157 or 164 tooth ring gear or manual transmissions using a 157 tooth ring gear. This replaces OEM starters with a nose that extends 2-3/8 in. past the mounting surface. 12 position rotation. 1.7 hp. 1.4 kw. 160 lb.ft. of torque. 6.760 in. overall length.

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the graphs PDF File
