1-Wire Micro Mini GM Alternator [12-Volt, 55 Amp]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-10135

1-Wire Micro Mini GM Alternator [12-Volt, 55 Amp]

$18899$204.99You Save$16.00
5 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Small Block Chevy/Big Block Chevy Low-Mount Kit Billet Aluminum

JEGS

Small Block Chevy/Big Block Chevy Low-Mount Kit Billet Aluminum

Part Number : 555-50601
$8699$101.99
You Save$15.00
Small Block Chevy Mid-Mount Kit Billet Aluminum

JEGS

Small Block Chevy Mid-Mount Kit Billet Aluminum

Part Number : 555-50602
$8399$88.99
You Save$5.00
Remote Battery Cable Kit [1-Gauge, 3/8 in. Battery Terminal Size]

JEGS

Remote Battery Cable Kit [1-Gauge, 3/8 in. Battery Terminal Size]

Part Number : 555-10290
$12499$129.99
You Save$5.00
Starter Heat Insulator 7" x 24"

JEGS

Starter Heat Insulator 7" x 24"

Part Number : 555-32000
$2399$26.99
You Save$3.00

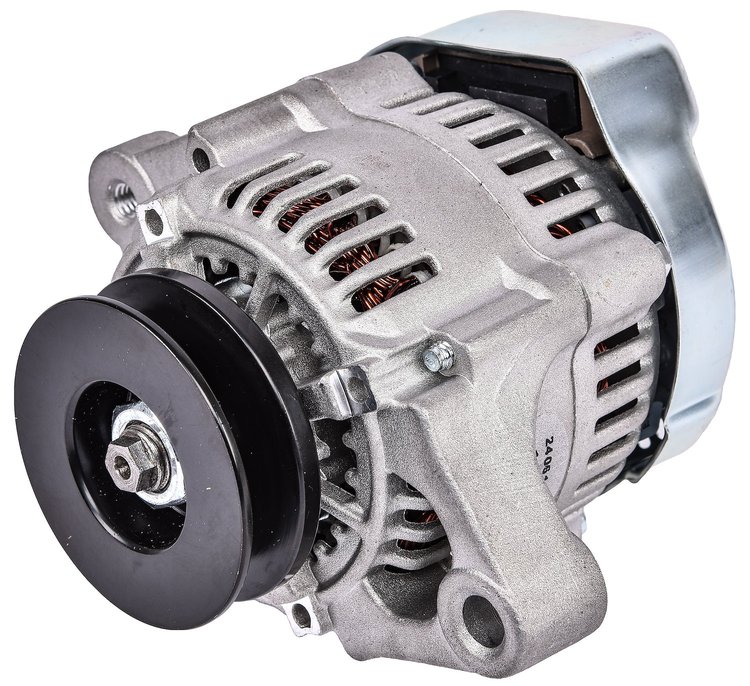

1-Wire Micro Mini GM Alternator
  • 55 Amp
  • 12-Volt

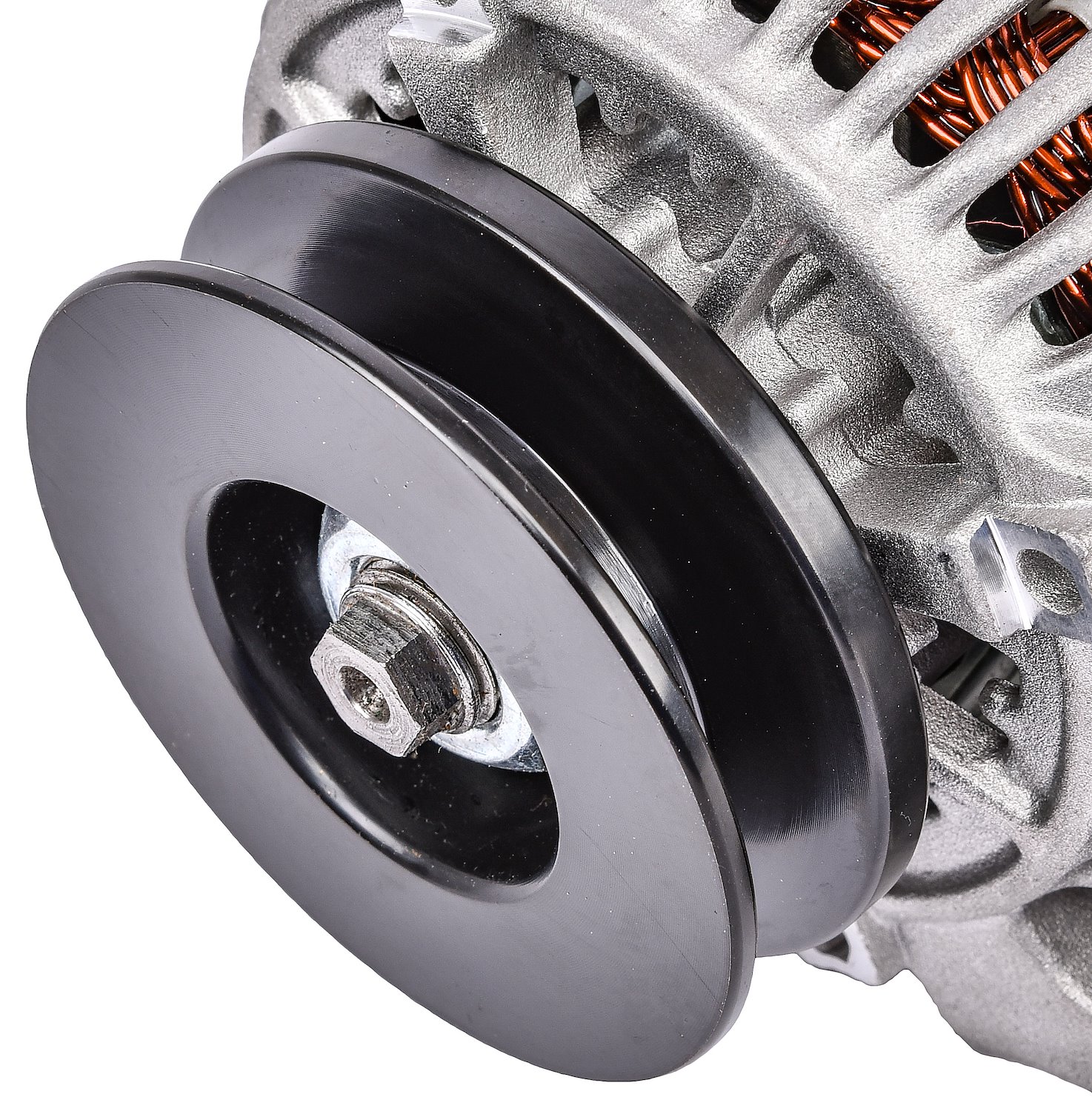

  • Single One Groove V-Belt Pulley
  • 5.43 in. c-c Mounting Holes
  • Sold Individually

    JEGS 1-Wire Alternators

    A one-wire alternator has a turn-on point (sometimes called "cut in", which is typically about 1200 engine RPM). We have developed rotor poles and stator stacks that carry a higher magnetism thus providing an instant regulator cut in without engine acceleration. All of our 1-wire alternators are manufactured with this exclusive low cut-in feature at 880 engine RPM which is much lower than any other alternator (of its type) sold. This is the speed at which the internal sense circuitry connects the battery to the voltage regulator, thereby turning the alternator on. Once the voltage regulator turns on, the alternator will remain charging until the engine comes to a complete stop.

    JEGS 555-10135 GM Micro Mini 1-Wire Alternator Features:

    • Nippondenso Style alternator
    • 1-Wire hook-up makes installation a breeze
    • The perfect alternator for applications with limited space
    • Up to 5 lbs. weight savings over traditional alternators

    JEGS 555-10135 GM Micro Mini 1-Wire Alternator Notes:

    • Requires use of appropriate low or mid-mount alternator bracket (sold separately).
    • Low mount units will not clear stock front crossmember, steering, and sway bar due to below crank centerline positioning. Check for potential clearance issues before ordering.

    JEGS 555-10135 GM Micro Mini 1-Wire Alternator Dimensions:

    • GM Micro Mini Easy Hook-Up 1-Wire Alternators

      JEGS Micro Mini 1-wire GM Alternators offer additional clearance and up to 5 lb weight savings over full-size alternators. Available for 12-Volt or 16-Volt charging systems. Features an internal regulator. Easily installed by connecting 1-wire from the alternator to the positive side of the battery.

    Part TypeAlternator
    Product LineJEGS 1-Wire Micro Mini GM Alternators
    BrandJEGS
    Package Height6.6
    Package Width6.9
    Package Length7.9
    Weight6.9 PG
    Part CategoryPerformance Parts
    Voltage Compatibility12
    One-Wire CapableYes
    Pulley IncludedYes
    Alternator Brackets IncludedNo
    Pulley StyleV-Belt Pulley
    Advertised Amperage Output55 amps
    Regulator IncludedYes
    Alternator FinishNatural
    Belt IncludedNO
    Part FitmentSemi Universal
    Regulator StyleInternal
    Alternator Case StyleNippondenso
    Package Qty1
    Package TypeEA
