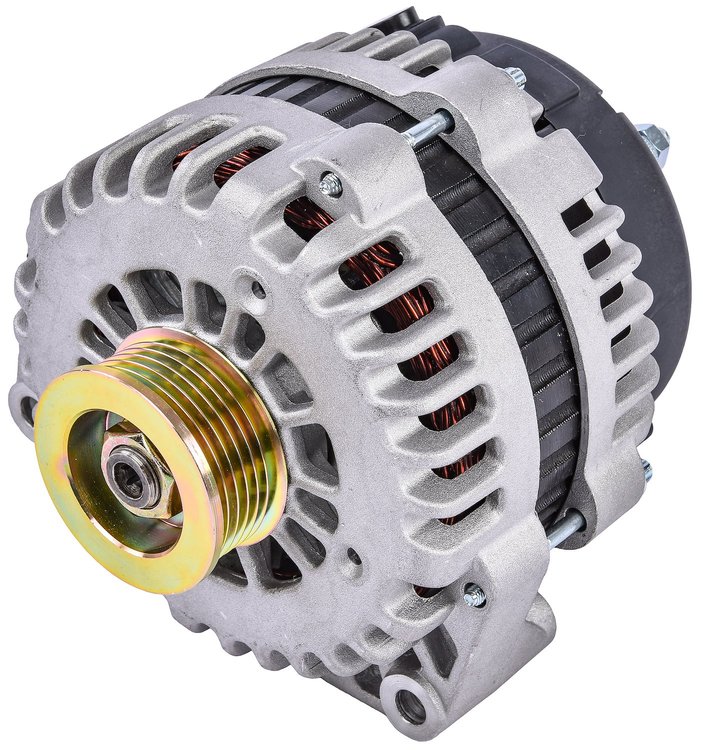

1-Wire GM Alternator 145 AMP Output Serpentine Pulley [Natural Finish]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-10164

1-Wire GM Alternator 145 AMP Output Serpentine Pulley [Natural Finish]

$30999$340.99You Save$31.00
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Alternator Ground Wire Kit [10 Gauge]

JEGS

Alternator Ground Wire Kit [10 Gauge]

Part Number : 555-10141
$560$6.99
You Save$1.39
Rubber Grommet Assortment Kit 125 Pieces

JEGS

Rubber Grommet Assortment Kit 125 Pieces

Part Number : 555-10365
$919$9.99
You Save$0.80
High-Output Alternator Wiring Kit

JEGS

High-Output Alternator Wiring Kit

Part Number : 555-10510
$3399$37.99
You Save$4.00
50 Amp Fuse with Block & Cover Made in the USA

JEGS

50 Amp Fuse with Block & Cover Made in the USA

Part Number : 555-10520
$1279$15.99
You Save$3.20

Natural Finish 145 AMP
1-Wire GM Alternator
  • LS-Series
  • 145 AMP Output
  • 12 Volt
  • GM 12S
  • Internal Regulator
  • 5/16 in. -18 (.3125 in.) Stud Terminal Size
  • Natural Finish
  • Includes:

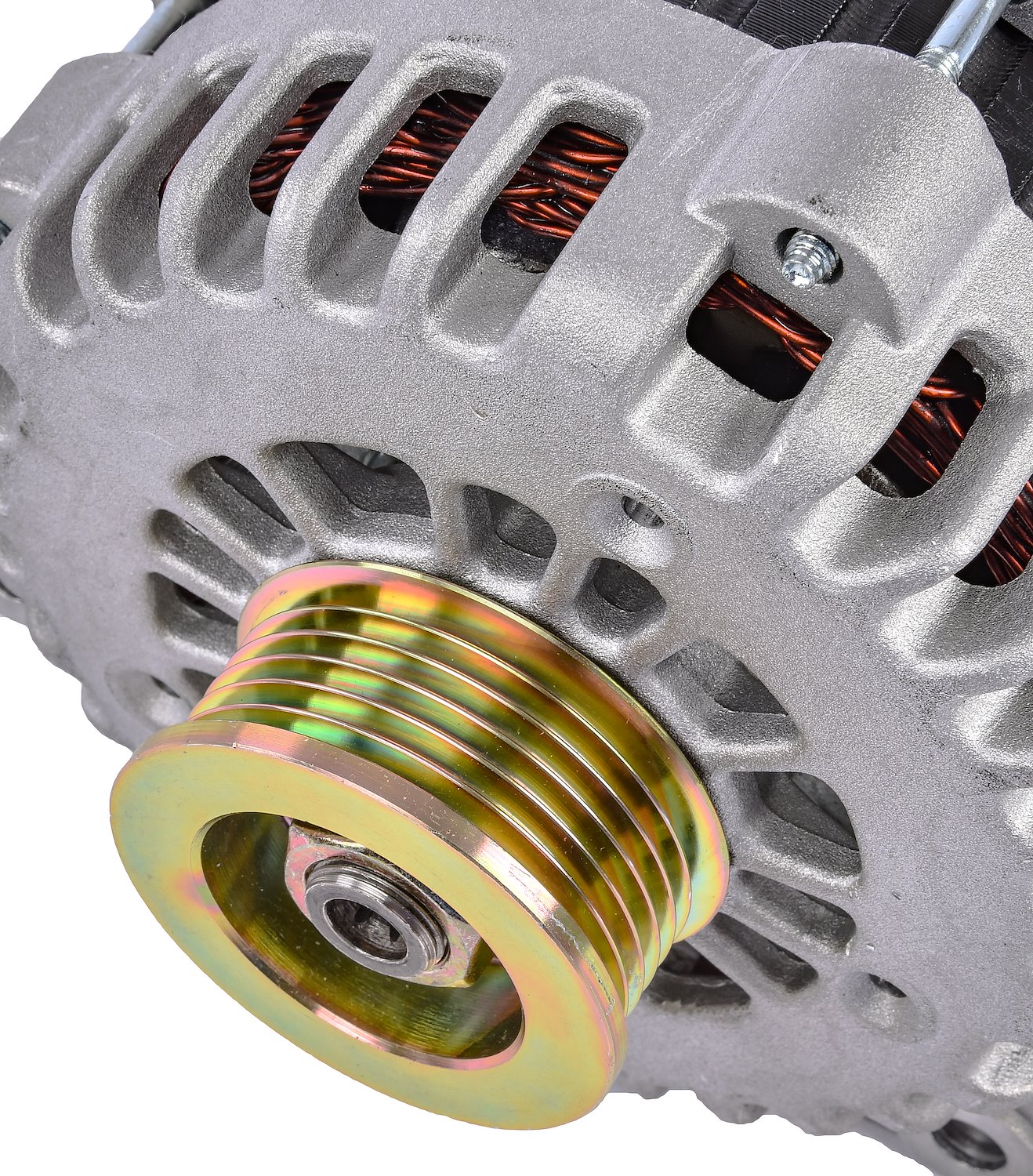

    • 2 in. O.D. Single 6-Rib Serpentine Pulley


    JEGS 10164 1-Wire Alternator:

    One-wire alternators have a turn-on point (sometimes called "cut in"), typically about 1200 engine RPM. JEGS has developed rotor poles and stator stacks that carry a higher magnetism to provide an instant regulator "cut in" without engine acceleration. Our 1-wire alternators are manufactured with an exclusive low "cut in" of 880 engine RPM, which is much lower than any other alternator of its type. This is the speed at which the internal sense circuitry connects the battery to the voltage regulator and turns on the alternator. Once the voltage regulator engages, the alternator will stay on and charge until the engine stops completely.

    JEGS 555-10164 1-Wire GM Alternator Features:

    • Simple 1-wire installation: connect one wire from the alternator to the battery, and you're done
    • Manufactured with an exclusive low "cut in" of 880 engine rpm, which is much lower than any other alternator of its type to begin turning on and charging
    • Specifications: 145 amp output, 12-volt, GM 12S design, internal regulator
    • Chrome-plated for great looks and long life
    • Single Groove V-Belt Pulley with Cooling Fan
    • Made with high-quality components

    FAQ

    Does a 1 wire alternator need to be grounded?

    • Yes, grounding is essential for optimal performance. Ensure a solid connection between the alternator case and the engine block to establish a proper ground for the GM 1-wire alternator, like the JEGS 10164.

    Do I need a voltage regulator with a 1-wire alternator?

    • No, a GM 1-wire alternator, such as the JEGS 10164, eliminates the need for an external voltage regulator. Its simplified design integrates the regulator internally for a straightforward installation process.

    What gauge wire for one wire alternator?

    • For a GM 1-wire alternator, like the JEGS 10164, a 4-gauge wire is recommended to ensure efficient power transfer. Adequate wiring promotes optimal charging performance for your vehicle.

    What is the advantage of a one-wire alternator?

    • The primary advantage is simplicity. JEGS GM 1-wire alternators streamline installation with a single-wire setup, reducing wiring complexity. This makes them an excellent choice for easy and efficient charging system upgrades.
  • Part TypeAlternator
    BrandJEGS
    Package Height7.1
    Package Width7.5
    Package Length8.3
    Weight15.4 PG
    Part CategoryPerformance Parts
    Voltage Compatibility12
    One-Wire CapableYes
    Pulley IncludedYes
    Alternator Brackets IncludedNo
    Pulley StyleSerpentine Pulley
    Advertised Amperage Output145 amps
    Regulator IncludedYes
    Alternator FinishNatural
    Belt IncludedNO
    Part FitmentSemi Universal
    Regulator StyleInternal
    Alternator Case StyleGM 12si
    Package Qty1
    Package TypeEA
