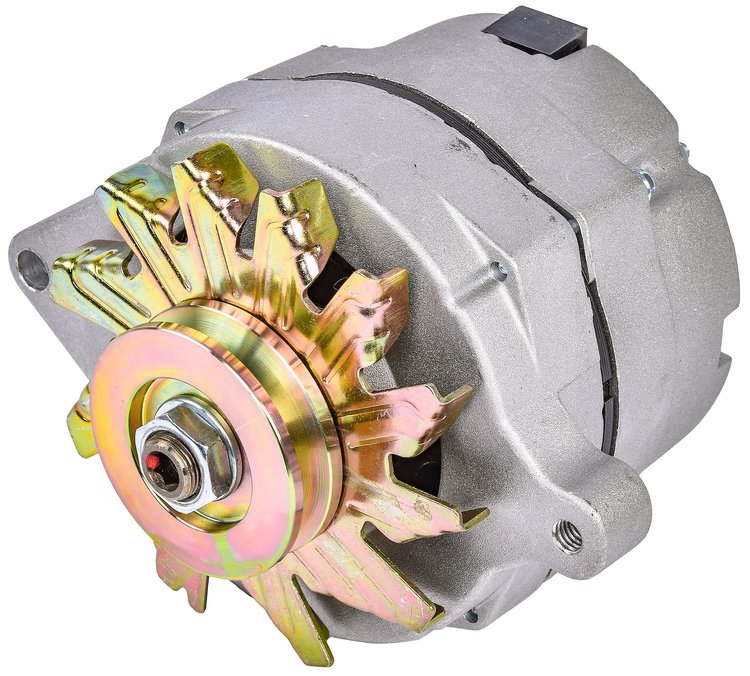

Ford 1-Wire Alternator, 140 amp Output with V-Belt Pulley [Natural Finish]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-10166

Ford 1-Wire Alternator, 140 amp Output with V-Belt Pulley [Natural Finish]

$17499$192.99You Save$18.00
9 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

High-Output Alternator Wiring Kit

JEGS

High-Output Alternator Wiring Kit

Part Number : 555-10510
$3399$37.99
You Save$4.00
50 Amp Fuse with Block & Cover Made in the USA

JEGS

50 Amp Fuse with Block & Cover Made in the USA

Part Number : 555-10520
$1279$15.99
You Save$3.20
Alternator Ground Wire Kit [10 Gauge]

JEGS

Alternator Ground Wire Kit [10 Gauge]

Part Number : 555-10141
$560$6.99
You Save$1.39
Premium Red 8 Gauge Automotive Wire

JEGS

Premium Red 8 Gauge Automotive Wire

Part Number : 555-10841
$3399$36.99
You Save$3.00

Natural Finish 140 AMP
Ford 1-Wire Alternator
  • 140 amp Output
  • 12 Volt
  • GM 10Si Style
  • Internal Regulator
  • 5/16 in. -18 (.3125 in.) Stud Terminal Size
  • Natural Finish
  • Includes:
    • Single Groove V-Belt Pulley
    • Fan without Baffle

      JEGS 10166 Ford 1-Wire 140 amp GM 10Si Style Alternator with single groove v-belt belt pulley has a natural aluminum finish and only requires a 12-volt power source to operate. This direct bolt-in Motorcraft alternator replacement features an exclusive low cut-in of 880 engine RPM, allowing it to quickly charge without having to rev your engine like other units of its type that typically have a 1200 RPM cut-in to initiate the alternator charging circuit.

      JEGS 555-10166 Ford 1-Wire Alternator Features:

      • Simple 1-wire installation: connect one positive wire from the alternator to the battery, and you're done
      • Motorcraft Upgrade
      • 140 amp Output GM 10Si Style Alternator Designed to Fit Ford Applications
      • 1-Wire Hook Up
      • Low RPM Charge Output
      • Internal Regulator

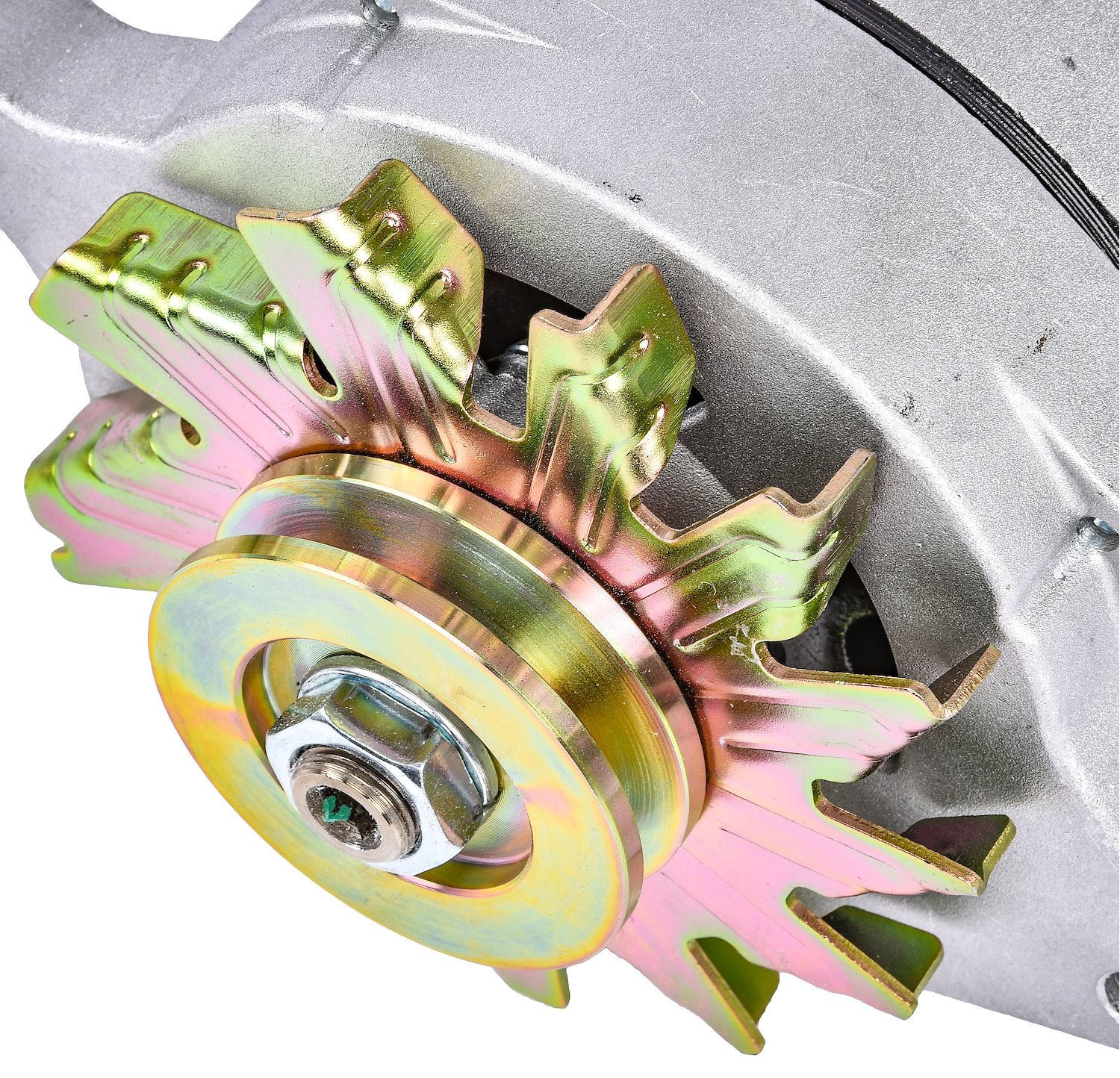

      • 3/8 in. W x 2.330 in. O.D. Single Groove V-Belt Pulley with Cooling Fan without Baffle
      • Adjusting Ear with 3/8 in.-16 Threads
      • Incorporates a 3 in. Mounting Spool Like Original Ford Alternators
      • Easy bolt-on no modifications required (Uses Existing Mounting Brackets)
      • Natural Aluminum Finish

      JEGS 555-10166 Ford 1-Wire Alternator Features:

      • To help speed up your installation we recommend these JEGS wiring kits.
      • High-Output Alternator Wiring Kit with 8 Gauge wire 555-10510
      • Alternator Ground Wire kit with 10 gauge wire 555-10141
    • Part TypeAlternator
      BrandJEGS
      Package Height6.7
      Package Width7.4
      Package Length7.8
      Weight12.95 PG
      Part CategoryPerformance Parts
      One-Wire CapableYes
      Advertised Amperage Output140 amps
      Alternator Case StyleGM 10si
      New Or RemanufacturedNew
      Groove Quantity1
      Alternator FinishNatural
      Belt IncludedNO
      Regulator StyleInternal
      Case MaterialAluminum
      Voltage Compatibility12
      Terminal Connection Quantity1-Wire
      Pulley TypeV Belt
      Pulley IncludedYes
      Pulley Belt TypeV-Belt
      Alternator Brackets IncludedNo
      Pulley StyleV-Belt Pulley
      Pulley Outside Diameter2.330 (59.182 mm)
      Pulley FinishYellow zinc
      Regulator IncludedYes
      QuantitySold individually
      Alternator Pulley Attachment StyleBolt-on
      Alternator Fan IncludedYes
      Part FitmentSemi Universal
      Pulley MaterialSteel
      Pulley Groove Quantity1
      Package Qty1
      Package TypeEA
