![Master Battery Disconnect Switch [300 Amps Continuous]](https://www.jegs.com/images/mini_750/500/555/555-103050.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-103050

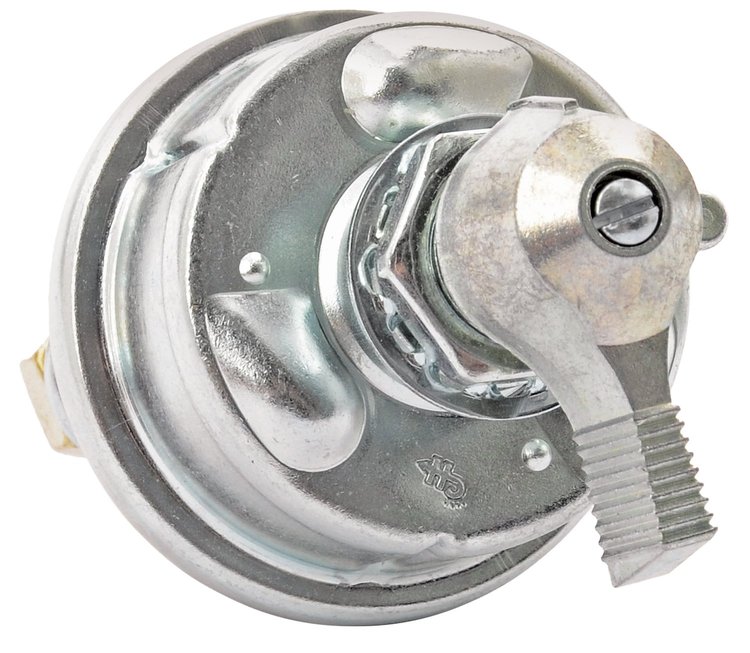

Master Battery Disconnect Switch [300 Amps Continuous]
$9399$103.99You Save$10.00
4 left in stock
Ships Today
Lowest Price GuaranteeMaster Battery Disconnect Switches
Master Battery Disconnect Switch6-36 V DC 300 Amps Continuous 4-Post, 1/2 in.-20 & 10-32 threads Manual Rotary Without On/Off Face Plate
Features:
- Single Pole, Two Positions: Off-On.
- NHRA Required remote battery disconnect switch for trunk mounted batteries.
- UL Listed: UL listed Rating: 12 V DC.
- Rating: 6-36 Volt DC; Large studs: 300 amps continuous, 2000 amps intermittent 30 sec. On, 3 min. Off. Small Studs: 20A continuous
- Actuator: Single Throw Chrome Lever.
- Mounting Stem: 3/4 in.-16 thread, fits panels up to 1/4 in. thick.
- Terminals: (2) 1/2 in.-20 Copper studs & (2) 10-32 Brass Studs.
- Case: Plated Steel.
- Installation: Through hole - Clearance for 3/4 in. dia. mounting stem.
Includes:
- (1) Disconnect Switch
- (1) Switch lever
- (1) Switch Lever Screw
- (2) 1/2 in.-20 thread Brass Terminal Nuts
- (2) 1/2 in. Terminal Lock Washers
- (2) 10-32 thread Steel Terminal Nuts
- (2) 10-32 Terminal Lock Washers
Part TypeBattery Disconnect Switch
BrandJEGS
Package Height4.3
Package Width4.4
Package Length4.7
Weight1.35 PG
Part CategoryAccessories
Part FitmentUniversal
Package Qty1
Package TypeEA
