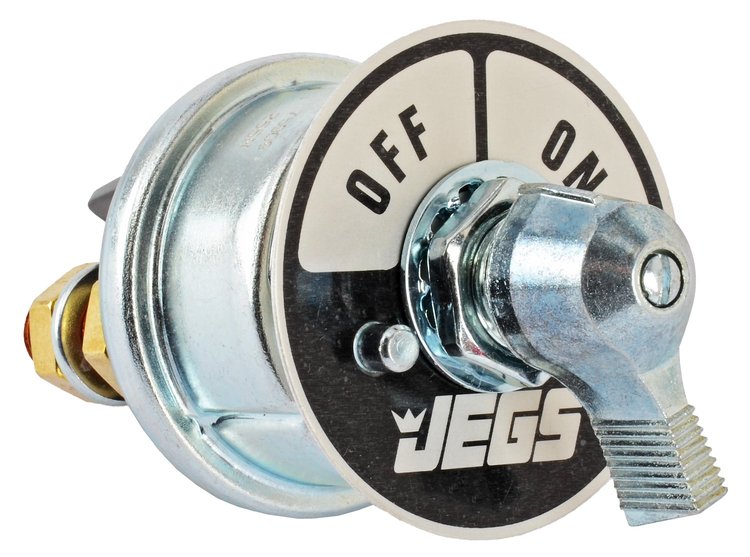

JEGS 555-10307 Master Battery Disconnect Switch Includes:

• (1) Disconnect Switch
• (1) On/Off Face Plate
• (1) Switch lever
• (1) # 8 Switch Lever Screw
• (2) 1/2 in.-20 thread Brass Terminal Nuts
• (2) 1/2 in. Terminal Lock Washers

JEGS 555-10307 Master Battery Disconnect Switch Features:

• Save your battery with a turn of a switch
• Designed to cut off electrical power to help against electrical fires and offers theft protection when your vehicle is not in use
• Simple to install and gives you the ability to cut power at a moment's notice
• Mandated by the NHRA for racing vehicles equipped with alternators
• Specifications: 6-36 V DC, 300 Amp continuous, 2000 Amp momentary
• Single Pole, Two Positions: Off-On; Disconnects battery circuit only
• Anti-rotation locator pin enables ease of mounting
• NHRA Required remote battery disconnect switch for trunk mounted batteries.

JEGS 555-10307 Master Battery Disconnect Switch Specs:

• UL Listed: Not listed
• Rating: 6-36 Volt DC; Large studs: 300 Amp continuous, 2000 Amp intermittent 30 sec. On, 3 min. Off.
• Actuator: Single Throw Chrome Lever.
• Mounting Stem: 3/4 in. -16 thread, fits through 1/4 in. thick panel.

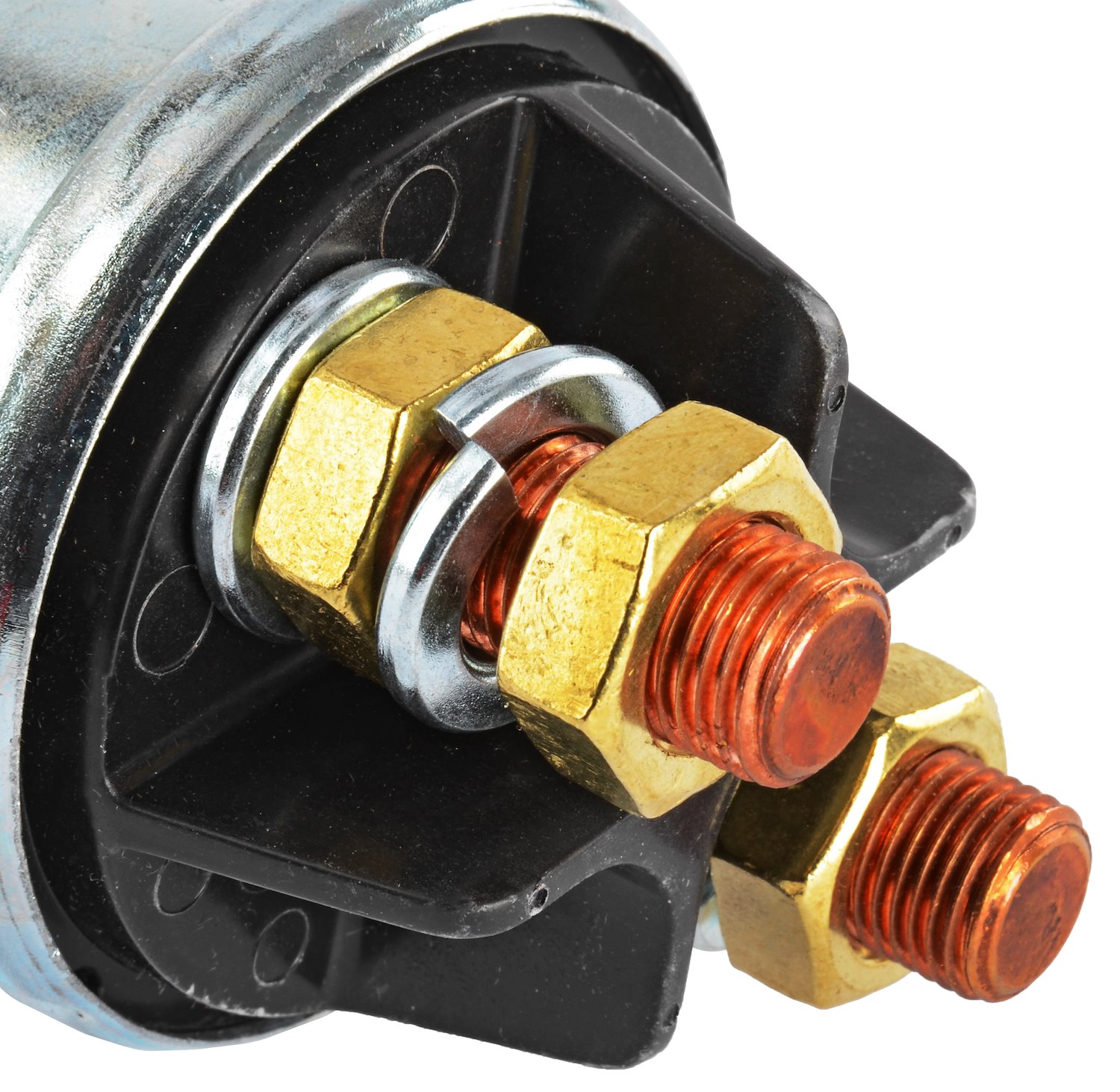

• Terminals: (2) 1/2 in.-20 thread Copper Studs
• Case: Plated steel.
• Installation: Through hole - Clearance for 3/4 in. dia. mounting stem.

FAQ

What is the purpose of a battery disconnect switch?

• Efficiently cuts off power to prevent battery drain
• Enhances safety during vehicle storage or maintenance

How do I choose a battery disconnect switch?

• Consider the amp rating - options include 300 amp disconnect
• Choose based on your vehicle's power requirements

What is a battery master switch?

• A device that controls the power flow in the battery circuit
• Essential for isolating the battery during non-use

Where should a power disconnect switch be located on the battery circuit?

• Install near the battery for quick access
• Ensure it is easily reachable in case of emergencies
