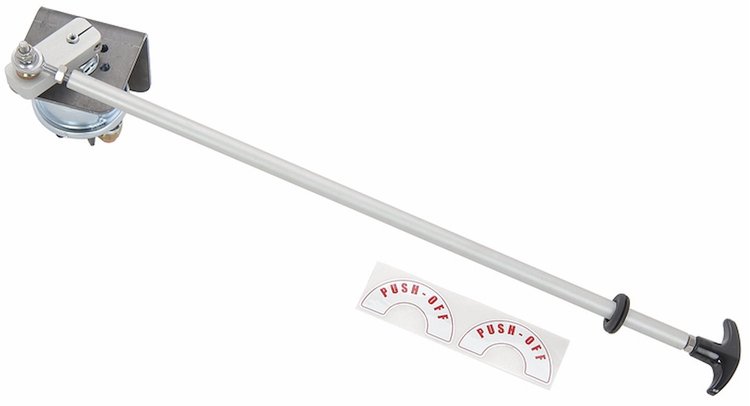

Push-Pull Battery Disconnect Switch Compatible with 12 Volt Systems
InfoVehicle Info Needed
JEGSPART NUMBER: 555-10372

Push-Pull Battery Disconnect Switch Compatible with 12 Volt Systems

$7299$80.99You Save$8.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Automotive/Marine-Type Battery Relocation Kit

JEGS

Automotive/Marine-Type Battery Relocation Kit

Part Number : 555-10278
$18399$199.99
You Save$16.00
Remote Battery Cable Kit [1-Gauge, 3/8 in. Battery Terminal Size]

JEGS

Remote Battery Cable Kit [1-Gauge, 3/8 in. Battery Terminal Size]

Part Number : 555-10290
$12499$129.99
You Save$5.00
Battery Terminal Cover Set For use on All Top-Post Batteries

JEGS

Battery Terminal Cover Set For use on All Top-Post Batteries

Part Number : 555-10304
$833$8.99
You Save$0.66
Through-Panel Connector Red

JEGS

Through-Panel Connector Red

Part Number : 555-10313
$2199$24.99
You Save$3.00

Push-Pull Battery Disconnect Switches
Battery Disconnect Switch
  • Compatible with 12 V Systems
  • 125 Amp Switch (20 Amp Continuous/125 Amp Momentary)
  • Includes:
    • 17 7/8 in. Push-Pull Rod
    • Switch Mounting Bracket
    • T-Handle
    • "Push Off" Decal
  • Sold Individually

    JEGS 555-10372 Battery Disconnect Switch Includes:

    • (1) Disconnect Switch
    • (1) Push-Pull Rod : 17 7/8 in. L x 1/2 in. O.D. with 1/4 in.-20 & 1/4 in.-28 threaded ends
    • (1) Rod End: 1/4 in.-28 thread & 1/4 in. I.D. mounting hole
    • (1) Set Screw: 1 in. L x 1/4 in.-28 thread
    • (1) 1/4 in.-28 thread nut
    • (1) 1/4 in.-20 thread nut
    • (1) 1/4 in.-20 thread nyloc nut
    • (1) 1/4 in. flat washer
    • (1) 1 3/4 in. x 1/4 in.-28 thread bolt
    • (1) Sleeve: Flat, 5/8 O.D. x 1/4 in. I.D.
    • (1) Sleeve: Tapered, 5/8 O.D. x 1/4 in. I.D.
    • (1) # 8 cap screw
    • (1) Aluminum Switch Arm
    • (1) Switch Mounting Bracket
    • (1) Ergonomic T-Handle
    • (1) Rubber Grommet
    • (1) "Push Off" Decal

    JEGS 555-10372 Battery Disconnect Switch Features:

    • Designed to cut off electrical power to help against electrical fires and offers theft protection when your vehicle is not in use
    • Push/pull rod for easy shut down
    • Single Pole, Two Positions: Off-On; Disconnects battery circuit only.

    JEGS 555-10372 Battery Disconnect Switch Specs:

    • UL listed: UL listed Rating: 12 V DC
    • Switch Rating: 12 V DC; 20 amp continuous, 125 amp intermittent 15 sec. On, 5 min. Off (UL rating
    • Switch Terminals: (2) 3/8 in.-24 thread copper studs
    • Switch Actuator: Aluminum Single Throw lever with Push-Pull Rod
    • Switch Mounting Stem: Brass, 3/4 in.-16 thread, 23/32 in. long, fits supplied mounting bracket
    • Switch Contacts: Copper
    • Switch Case: Plated steel
    • Installation: L Mounting Bracket can be located almost anywhere
  • Part TypeBattery Disconnect Switch
    BrandJEGS
    Package Height4.1
    Package Width4.5
    Package Length19.6
    Weight2.45 PG
    Part CategoryAccessories
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
