20-Circuit Universal Wiring Harness

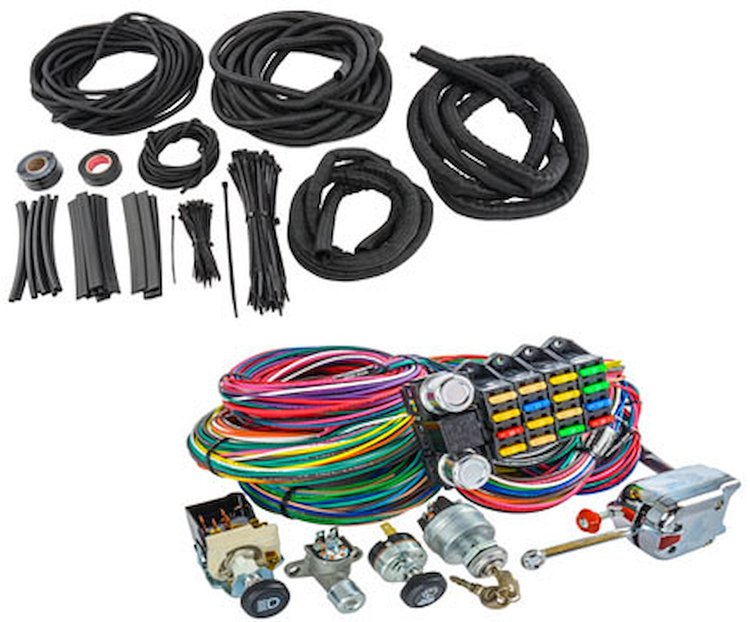

Universal Wiring Harness & Switch Kit with Woven Braid Chassis Kit
  • 20 Circuit
  • Includes:
    • Wiring Harness
    • Dimmer Switch
    • Headlight Switch
    • Windshield Wiper Switch
    • Turn Signal Switch
    • Woven Braid Chassis Kit

      Wiring for:

      • Horn
      • Radio
      • Power Windows
      • Power Door Locks
      • Lights (Headlights, Taillights, Parking Lights, Dome Light, Brake Lights, 3rd Brake Light, Gauge Lights, Backup Lights, and License Plate Light)
      • Turn Signals, Hazard Lights, and High-Beam Indicators
      • Windshield Wipers
      • A/C and Heater
      • Charging System
      • Ignition System/Coil/Starter
      • Neutral Safety Switch
      • Gauges (Fuel Level, Oil Pressure, Speedometer, Tachometer, Voltmeter, and Water Temperature)
      • Electric Cooling Fan
      • Electric Fuel Pump
      • Cigarette Lighter
      • Firewall Grommet
      • Cable Ties
      • Crimp Terminals

      Wiring Harness Easy Kit Includes:

    • Quality Wiring Harnesses at Affordable Prices

      JEGS Universal Wiring Harnesses fit almost any car or truck with a front-mounted engine and fuse block located under the dash near the steering column. These wiring harnesses are available in 14-Circuit and 20-Circuit models and require limited space under the dash for mounting. Our kits use premium quality high-temperature GXL coated copper stranded wire for reliability.

      Show More

      GXL wire has a temperature rating of -59 degree F (-51 degree C) to 257 degree F (125 degree C) and is resistant to moisture, grease, oil, gasoline, most acids and solvents. Each wire is color-coded and labeled for easy identification during installation and to simplify even further all wires are attached to the fuse block. Every attached terminal is machine crimped and hand-soldered making the best connections possible. Each fuse block includes a horn relay, turn signal relay, hazard flasher and standard ATO fuses. Wiring harnesses will work with a dash mounted or steering column mounted ignition switch and also have optional connectors for common GM-style accessories, such as dimmer switch, hazards, and alternator. For vehicles that don't use GM accessories, simply omit the extra connectors during installation. The installation instructions show how to make all connections for GM, Ford, and Chrysler vehicles.

    Part TypeWiring Harness
    Product LineJEGS Universal Wiring Harnesses
    BrandJEGS
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
