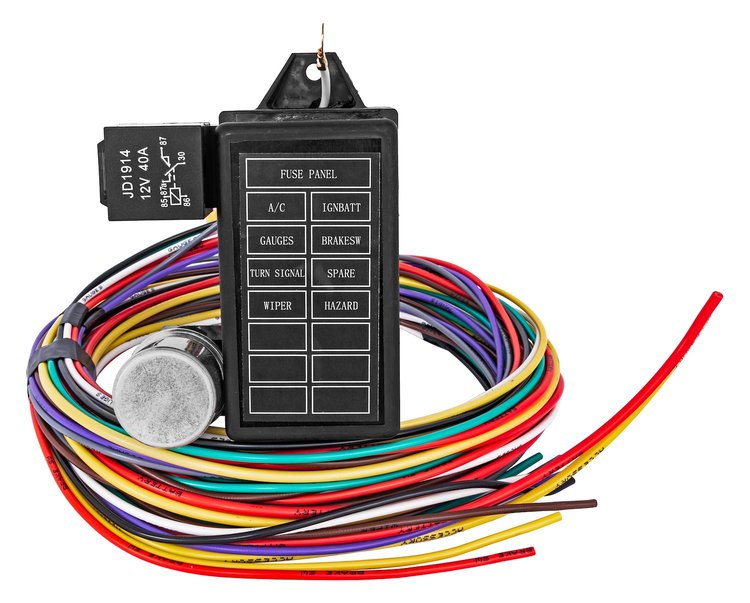

Universal Wiring Harness [8-Circuit with Fuse Block]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-10417

Universal Wiring Harness [8-Circuit with Fuse Block]

$11499$126.99You Save$12.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

105-Piece Heat Seal Crimp Connector Kit

JEGS

105-Piece Heat Seal Crimp Connector Kit

Part Number : 555-10700
$5199$57.99
You Save$6.00
61-Piece Heat Shrink Tubing Kit [Black]

JEGS

61-Piece Heat Shrink Tubing Kit [Black]

Part Number : 555-10630
$2699$29.99
You Save$3.00
Crimp Connector Kit [160 Pieces]

JEGS

Crimp Connector Kit [160 Pieces]

Part Number : 555-10705
$1599$17.99
You Save$2.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00

8-Circuit Universal Wiring Harness
Universal Wiring Harness
  • 8-Circuit
  • High-Quality Prelabeled Wires for Easy Installation
  • Will Work with GM Steering Column
  • Fuse Block with 8 Standard ATO Fuses
  • Fuse Block Includes Relays & Flashers
  • Easy to Follow Instructions

    JEGS 555-10417 Universal Wiring Harness [8-Circuit with Fuse Block] Includes:

    • (1) Ignition switch connector
    • (6) 14/16ga butt splices
    • (2) Headlight connectors
    • (10) 1/4 in. terminals
    • Instruction manual
    • (4) Fuse panel mounting legs
    • (11) Column plug terminals
    • (2) 12/14ga butt splices
    • (1) Dimmer switch connector
    • (1) Alternator plug
    • (1) 1 in. firewall grommet
    • (1) 6 in. jumper wire
    • (1) Early model column connector
    • (1) Fusible link
    • (4) Fuse panel mounting bolts
    • Zip Ties
    • (4) Ring terminals

    JEGS 555-10417 Universal Wiring Harness [8-Circuit with Fuse Block] Supported Circuits:

    • Turn Signal & Wiper
    • Radio & Ignition
    • Gauges
    • Fuel Pump & Back-up
    • Hazards
    • Headlights
    • Stop & Horn
    • Coil



    • Quality Wiring Harnesses at Affordable Prices

      JEGS Universal Wiring Harnesses fit almost any car or truck with a front-mounted engine and fuse block located under the dash near the steering column. These wiring harnesses are available in 14-Circuit and 20-Circuit models and require limited space under the dash for mounting. Our kits use premium quality high-temperature GXL coated copper stranded wire for reliability.

      Show More

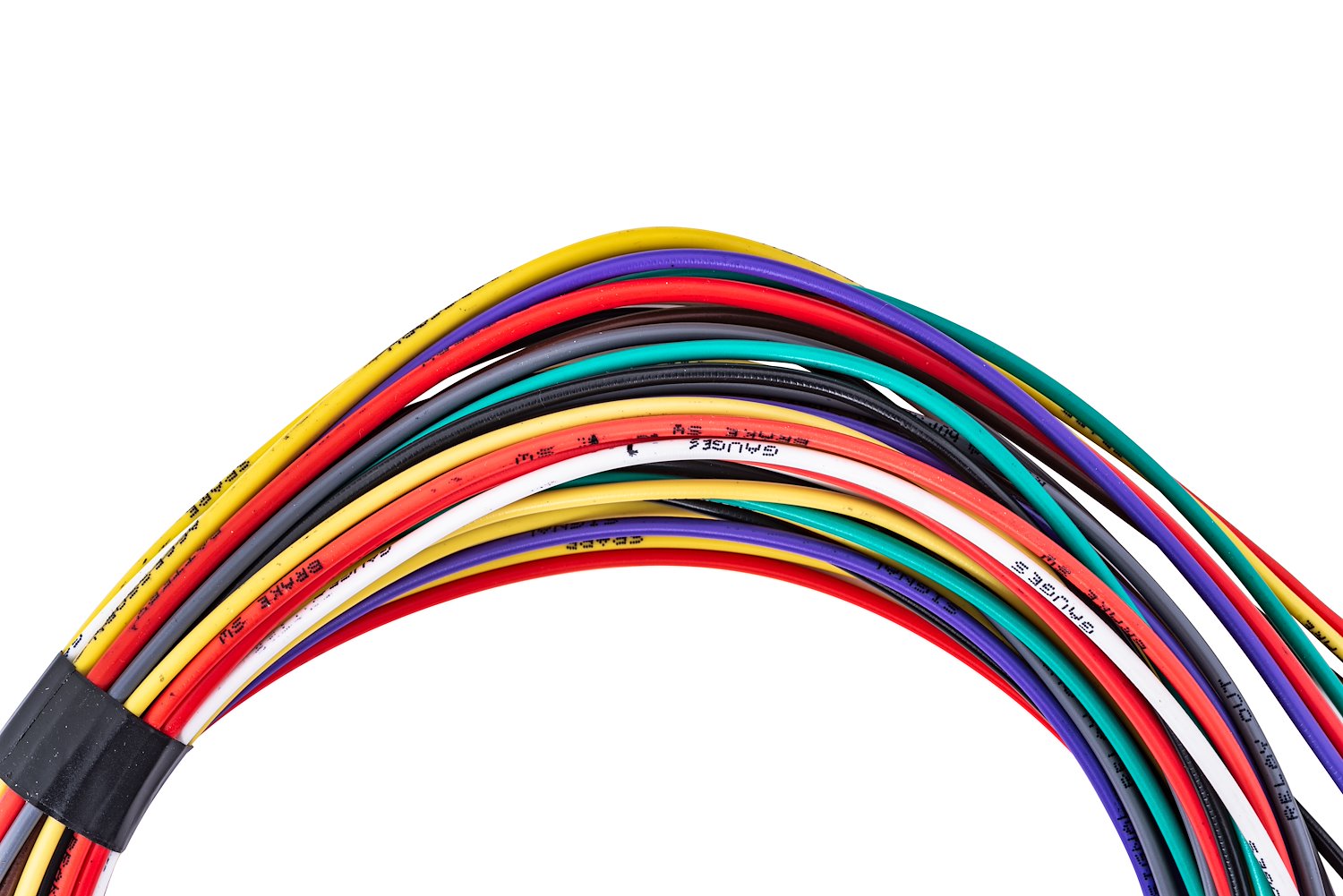

      GXL wire has a temperature rating of -59 degree F (-51 degree C) to 257 degree F (125 degree C) and is resistant to moisture, grease, oil, gasoline, most acids and solvents. Each wire is color-coded and labeled for easy identification during installation and to simplify even further all wires are attached to the fuse block. Every attached terminal is machine crimped and hand-soldered making the best connections possible. Each fuse block includes a horn relay, turn signal relay, hazard flasher and standard ATO fuses. Wiring harnesses will work with a dash mounted or steering column mounted ignition switch and also have optional connectors for common GM-style accessories, such as dimmer switch, hazards, and alternator. For vehicles that don't use GM accessories, simply omit the extra connectors during installation. The installation instructions show how to make all connections for GM, Ford, and Chrysler vehicles.

    Part TypeChassis Wiring Harness
    Product LineJEGS Universal Wiring Harnesses
    BrandJEGS
    Package Height5.1
    Package Width8.2
    Package Length9.9
    Weight2.4 PG
    Part CategoryPerformance Parts
    Type8 Circuit
    Circuit Quantity8
    Fuse Block LocationFront
    Fuse StyleATO/ATC
    MaterialGXL coated copper stranded wire
    Part FitmentUniversal
    Fuse Block IncludedYes
    Package Qty1
    Package TypeEA
