![Standard Fuse Block with LED Indicators [10-Pole, Long Design]](https://www.jegs.com/images/mini_750/500/555/555-10448.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-10448

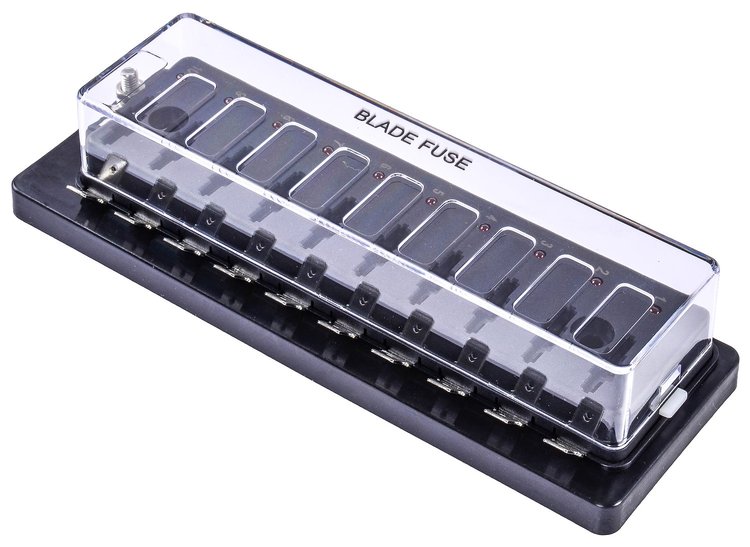

Standard Fuse Block with LED Indicators [10-Pole, Long Design]
$4199$46.99You Save$5.00
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteeStandard Size Blade Fuse Blocks
Spade Terminals
Spade Terminals
- Standard Fuse Block
- 10-Pole
- Long Design
- LED Indicators
- 30 amp Circuit
- 100 amp Max Input
- APR/ANR Standard Blade Fuse
- Quick Connect Spade Terminals
- 7.28 in. x 2.46 in. x 1.59 in.
- (Fuses NOT Included)
- Features an easily identifiable led light for each circuit which will illuminate if you have a blown fuse
- Each circuit is rated at 30 amps while the fuse block is rated at a total of 100 amps maximum input
- Designed to be used with apr/ato/atc standard blade fuses, available separately
- Constructed from a chemical-resistant thermoplastic polymer with a clear weather-resistant polycarbonate cover
- Specifications: 7.28 “ x 2.46 “ x 1.59 “ dimensions, 30 amp circuit, 100 amp max input, 10-pole
Always Know Which Fuse is Blown
JEGS LED Indicator Fuse Blocks feature an easily identifiable LED light for each circuit which will illuminate if you have a blown fuse. Available in 4, 6 and 10-Pole units; each circuit is rated at 30 amps while the fuse block is rated at a total of 100 amps maximum input. These Mini and Standard Fuse Blocks are designed with screw or spade quick-connect terminals for ATM/APM Mini fuses or APR/ATO/ATC Standard fuses. Constructed from a chemical-resistant thermoplastic polymer with a clear weather-resistant polycarbonate cover, JEGS Fuse Blocks will give your wiring a complete professional look. Note: Fuses, Terminals and wiring sold separately.
Show More
Features:
- LED Indicators Identify a Blown Fuse
- 30 Amp Circuits, 100 Amps Max Input
- Chemical & Weather-Resistant
Part TypeFuse Block
Product LineJEGS LED Indicator Fuse Blocks
BrandJEGS
Package Height1.9
Package Width3.5
Package Length7.6
Weight0.4 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Circuit Isolating Relay IncludedNo
Mounting Bracket IncludedNo
Hardware IncludedNo
Flashers IncludedNo
Horn Relay IncludedNo
Part FitmentUniversal
Fuses IncludedNo
Package Qty1
Package TypeEA
