JEGS 555-10536 Fan Controller Features:

• Probe should be mounted close to the coolant/water inlet
• For use of fans up to 20 Amp continuous draw
• Activates the electric fan when the A/C is on for maximum A/C performance and engine cooling
• Provision for a manual override switch
• Can be used with all single electric fans
• Control module is potted for water resistance and protected from vibration
• Adjusts with a small, flat blade screwdriver

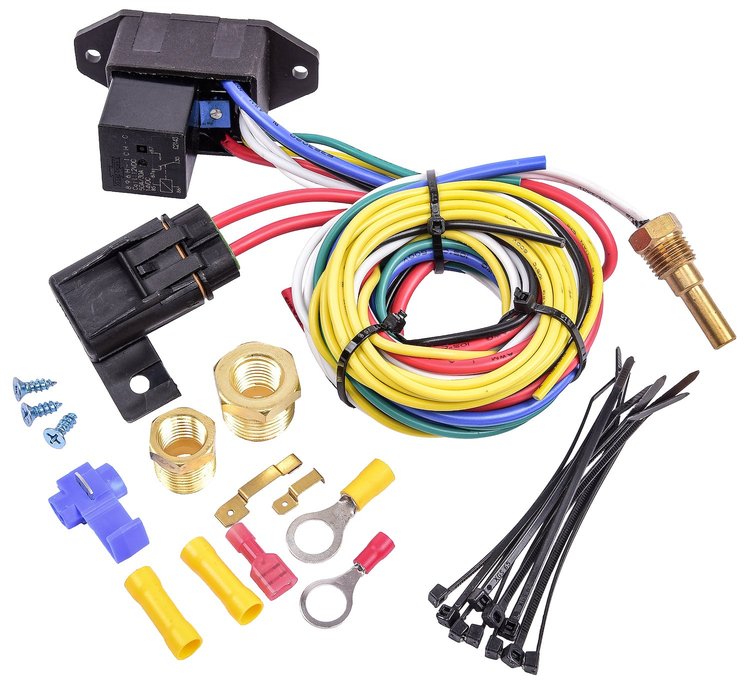

JEGS 555-10536 Fan Controller Includes:

• 3/8 in. NPT and 1/2 in. NPT adapter bushings
• (10) Black Cable Ties
• (3) #8 x 7/16 in. OAL Screws
• (1) 12-10 Gauge Ring Terminal
• (1) 22-16 Gauge Ring Terminal
• (1) 22-16 Gauge Female Spade Connector
• (1) 22-16 Quick Splice
• (2) 12-10 Gauge Butt Connectors
• (2) Spade Fuse Adapters
