One-Way Fluid Check Valve [-10 AN, Blue]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-150013

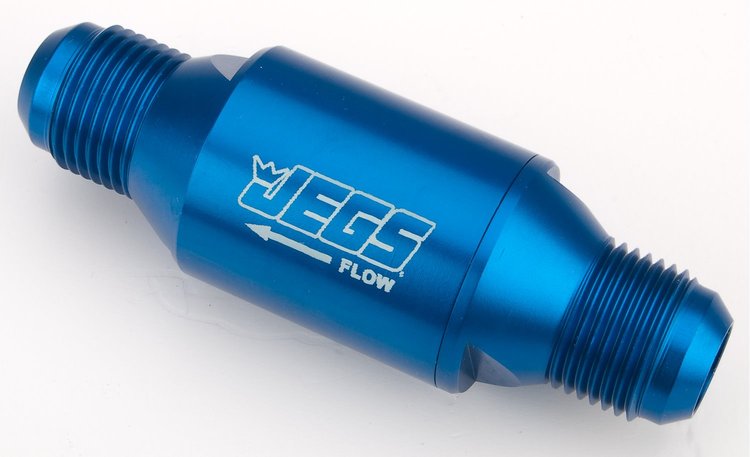

One-Way Fluid Check Valve [-10 AN, Blue]

ShippingShips on 04/08/2027
Lowest PriceLowest Price Guarantee

One-Way Fluid Check Valve, Blue
One-Way Fluid Check Valve
  • -10 AN
  • Opening Pressure: 5 PSI
  • Operating Pressure Range: 5-1500 PSI
  • Operating Temperature: -30-Degrees to 400-Degrees F
  • Overall Length: 3.75"
  • Billet Aluminum
  • Blue Anodized Finish

    JEGS 555-150013 -10 AN One-Way Check Valve Features:

    • JEGS check valves are less restrictive due to our hinged PTFE flapper design and double-coiled stainless steel torsion spring
    • Prevents the flow back of fuel, coolant, or oil
    • Designed to operate and last longer in the harshest environments with minimal flow restriction
    • Compatible with most fuels, including alcohol, methanol and bio-diesels, coolants, and oils
    • Internal leakage is less than 1 D.P.M. (drip per minute)

      • Check Valves to Keep Your Pressure From Bleeding Off

      JEGS One-Way Fluid Check Valves will prevent the flow back of fuel, coolant, or oil. The PTFE flapper is designed to operate and last longer in the harshest environments with minimal flow restriction. Compatible with most fuels (including alcohol, methanol, and bio-diesels), coolants, and oils.

    Part TypeCheck Valve
    Product LineJEGS One-Way Fluid Check Valves
    BrandJEGS
    Part CategoryPerformance Parts
    Check Valve MaterialBillet aluminum
    Outlet Size-10 AN
    Inlet Size-10 AN
    Outlet QuantityOne
    Check Valve FinishBlue anodized
    Fitting Attachment 2Male Threads
    Fitting Attachment 1Male Threads
    Inlet AttachmentMale AN
    Check Valve TypeOne-way
    Outlet AttachmentMale AN
    Fitting Size 2-10 AN
    Inlet QuantityOne
    Fitting Size 1-10 AN
    Package Qty1
