Note: The filter is on the Inlet side of the fuel pump.

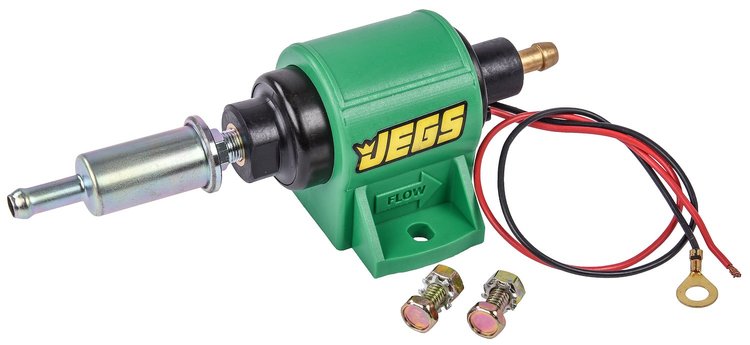

Includes:

• (1) 35 GPH 12 Volt Diesel Fuel Pump
• (1) 100 Micro Fuel Filter
• (2) 1/4 in. - 20 Thread 7/16 in. Hex Bolts
• (2) 1/4 in. - 20 Thread Nuts & Lock Washers
• 16-Gauge Power (with 1/4 in. pre-attached ring terminal) & Ground Wire

Fuel Pump Dimensions:

• Canister Diameter: 2 in.
• Body Length: 2 5/8 in.
• Overall Length: 5 in.
• Center to Center Mounting: 2 1/2 in.
• Inlet Size: M10 - 1.0 Male Thread
• Outlet Size: 5/16 in. Hose Barb

Fuel Filter Dimensions:

• Canister Diameter: .768 in.
• Body Length: 1 1/2 in.
• Overall Length: 3 in.
• Inlet Size: 5/16 in. Hose Barb
• Outlet Size: M10 - 1.0 Male Thread
