JEGS 555-159070 Universal Marine Electric Fuel Pump Features:

JEGS Marine Universal Electric Fuel Pump always delivers fuel at the correct pressure and flow rate that each specific application demands. These units are manufactured using all new components and endure meticulous quality control and testing procedures to provide a fuel pump that gives you optimum performance and long life.

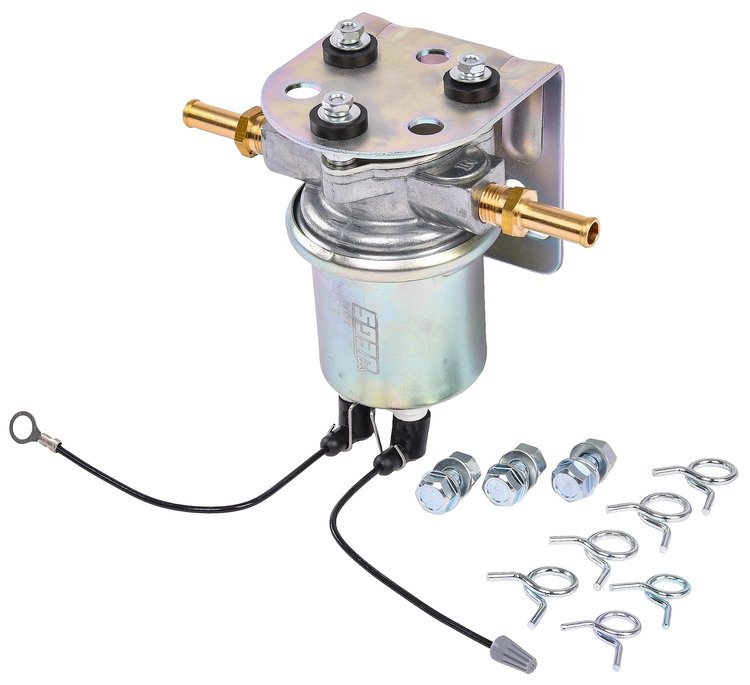

JEGS 555-159070 Universal Marine Electric Fuel Pump Includes:

• (1) Fuel Pump
• (1) Mounting Bracket
• (2) 3/8 in. Hose Barb x 1/4 in.-18 NPT Male Thread Fittings with 5/8 hex for tightening
• (3) 5/16 in. - 18 Thread x 3/4 x 1/2 in. hex Bolts
• (3) 5/16 in. - 18 Thread x 1/2 in. hex nuts
• (3) 10 -32 Thread x 3/8 hex nuts
• (3) 3/16 in. ID x 1/2 in. OD Flat Washers
• (3) 5/16 in. ID x 5/8 in. OD Flat Washers
• (3) 3/8 in. ID x 1/2 in. OD Split (Lock) Washer
• (3) 3/16 in. ID x 5/16 in. OD Split (Lock) Washer
• (4) 1/2 in. Spring Clamps
• (2) 3/8 in. Spring Clamps
• (1) Spring Clip
• (3) Vibration dampers (for mounting)
• (2) 14-gauge wire leads with 1/4 in. female post connectors (ground lead has 5/16 in. pre-assembled ring terminal)

JEGS 555-159070 Universal Marine Electric Fuel Pump Dimensions:

• Inlet: 1/4 in.-18 NPT Female Thread
• Outlet: 1/4 in.-18 NPT Female Thread
• Pump Housing Diameter: 2 3/8 in.
• Pump Housing Height: 4 in.
• Overall Width: 3 3/8 in.
• Overall Height: 4 1/4 in.

JEGS 555-159070 Universal Marine Electric Fuel Pump Mounting Bracket Dimensions:

• Bracket Width: 3 3/16 in.
• Bracket Height: 3 7/16 in.
• Fuel Pump Mounting Pattern: 2 1/4 in.
• Bracket Mounting Center to Center: 1 3/4 in. & 2 3/8 in.
