Universal Electric Fuel Pump [50 GPH]

Name: Universal Electric Fuel Pump [50 GPH]
Brand: JEGS
SKU: 555-159071
Price: 95.99 USD
Availability: InStock

^$95⁹⁹$105.99You Save$10.00

Ships on 09/15/2026

Lowest Price Guarantee

Universal Fuel Pump

Universal Electric Fuel Pump

12V DC

50 GPH

4-8 psi Free Flow Output

1/4 in.-18 NPT Inlet/Outlet

3/8 in. Hose Barb Inlet/Outlet

Includes:

Mounting Bracket
Mounting Hardware

JEGS 555-159701 Universal Electric Fuel Pump delivers 50 GPH of fuel at 8-psi. This electric fuel pump has a built-in fuel-pressure regulating valve that regulates fuel pressure from 4-8 psi, making it the perfect replacement for street vehicles with a worn-out mechanical or electric fuel pump. JEGS universal fuel pump is self-priming and can be installed on almost any vehicle with a 12V electrical system. We recommend a JEGS 555-15040 in-line fuel filter when installing this pump to help prevent premature wear.

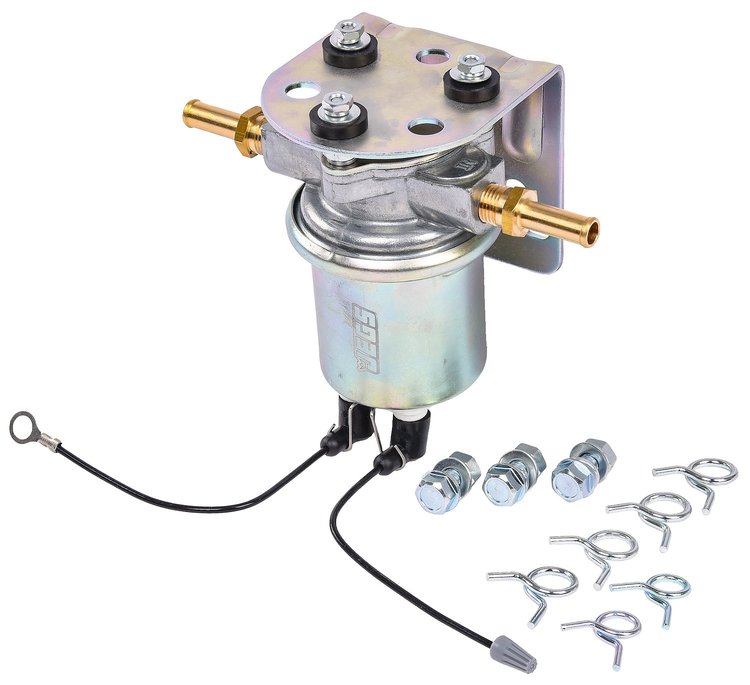

JEGS 555-159071 Electric Fuel Pump Includes:
- (1) Fuel Pump
- (1) Fuel pump mounting bracket
- (3) Fuel Pump rubber isolators
- (3) 5/16 in. flat washers for fuel pump mounting bracket studs
- (3) 10-32 Nuts for mounting bracket to fuel pump studs
- (3) 10-32 flat washers for mounting bracket to fuel pump studs
- (3) 10-32 split lock washers for mounting bracket to fuel pump studs
- (3) Fuel pump mounting bracket bolts: 5/16 in.-18 x 3/4 in. L self-tapping with 1/2 in. hex washer head
- (3) 5/16 in. split lock washers for fuel pump mounting bracket bolts
- (3) 5/16 in. nuts for fuel pump mounting bracket bolts
- (2) 1/4 in. NPT x 3/8 in. O.D. hose barb connectors for inlet & outlet connections
- (2) 5/16 in. I.D. spring clamps
- (4) 3/8 in. I.D. spring clamps
- (1) Fuel pump push on positive electrical connector with 5 in. of 14 gauge wire
- (1) Fuel pump push on negative electrical connector with 5 in. of 14 gauge wire and 5/16 ring terminal
- Electrical connection wire retainer clip
JEGS 555-159071 Electric Fuel Pump Dimensions:
- Inlet: 1/4 in.-18 NPT Female Thread
- Outlet: 1/4 in.-18 NPT Female Thread
- Pump Housing Diameter: 2 13/32 in.
- Pump Housing Height: 4 in.
- Overall Width: 3 3/8 in. at Inlet/Outlet
- Overall Height: 5 3/4 in. from top of mounting stud to bottom of electrical connection
JEGS 555-159071 Electric Fuel Pump Mounting Bracket Dimensions:
- Bracket Width: 3 1/4 in.
- Bracket Height: 3 1/2 in.
- Fuel Pump Mounting Pattern: 2 1/4 in.
- Bracket Mounting Center to Center Pump Mounting Studs: 1 3/4 in. & 2 3/8 in.

High-Flow Fuel Performance

JEGS Universal Electric Fuel Pumps are manufactured using quality materials for ultimate performance. These are easy to install and feature a durable, compact design that diminishes the chance of vapor lock and flooding. Units are available in 35, 42, 50 & 72 GPH (Gallons Per Hour). It’s not about the size of the pump; it’s about how much volume they can flow.

Part TypeElectric Fluid Pump

Product LineJEGS Universal Electric Fuel Pumps

BrandJEGS

Package Height4.3

Package Width4.5

Package Length5.75 in (146.05 mm)

Weight3.6 PG

Part CategoryPerformance Parts

Fitting MaterialBrass

Inlet Size1/4NPT

Wire Quantity2

Outlet Quantity1
