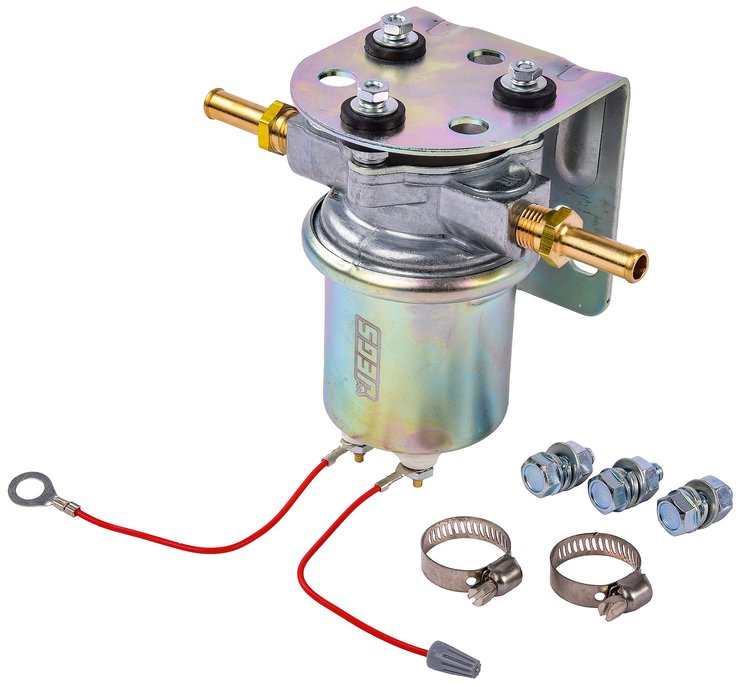

JEGS 555-159072 Universal Electric Fuel Pump delivers 50 gph of fuel at 8-psi. This electric fuel pump has a built-in fuel-pressure regulating valve that regulates fuel pressure from 6-8 psi, making it the perfect replacement for street vehicles with a worn-out mechanical or electric fuel pump. JEGS universal fuel pump is self-priming and can be installed on almost any vehicle with a 12 V electrical system.

JEGS 555-159072 Universal Electric Fuel Pump Includes:

• (1) Fuel Pump
• (1) Mounting Bracket
• (2) 3/8 in. Hose Barb x 3/8 in.-18 NPSF
• (3) Bolts: 5/16 in. -18 x 3/4 in.
• (3) Lock washers: 5/16 in.
• (3) Flat washers: 5/16 in.
• (3) Nuts: 5/16 in. -18
• (3) Nuts: 10 -32
• (3) Lock washers: 3/16 in.
• (3) Flat washers: 5/16 in.
• (2) Spring Clamps
• (3) Vibration dampers (for mounting)
• (2) 14-Gauge wire leads ends
• (1) Twist-on wire connector

JEGS 555-159072 Universal Electric Fuel Pump Dimensions:

• Pump Housing Diameter: 2.402 in.
• Pump Housing Height: 4 in.
• Overall Width: 3 3/8 in. at Inlet/Outlet
• Overall Height: 5 3/4 in. from top of mounting stud to bottom of electrical connection

JEGS 555-159072 Universal Electric Fuel Pump Mounting Bracket Dimensions:

• Bracket Width: 3 1/4 in.
• Bracket Height: 3 1/2 in.

FAQ

Does GPH on a fuel pump matter?

• The Gallons Per Hour (GPH) rating indicates the fuel pump's flow capacity. It matters to ensure your engine receives an adequate fuel supply. The JEGS 555-159072 provides a reliable 50 GPH.

Do I need a fuel pressure regulator with an electric fuel pump?

• Yes, a fuel pressure regulator is recommended. It helps maintain a consistent and safe fuel pressure, preventing over-pressurization. Consider the JEGS 555-159072 with a compatible fuel pressure regulator for optimal performance.

How does a universal fuel pump work?

• A universal electric fuel pump, like the JEGS 555-159072, draws fuel from the tank and delivers it to the engine at the required pressure. It ensures a steady fuel supply, enhancing engine performance.

Can you replace a mechanical fuel pump with an electric fuel pump?

• Yes, you can replace a mechanical fuel pump with an electric fuel pump. It offers advantages like precise fuel delivery and flexibility in installation. Ensure compatibility and follow proper installation guidelines.
