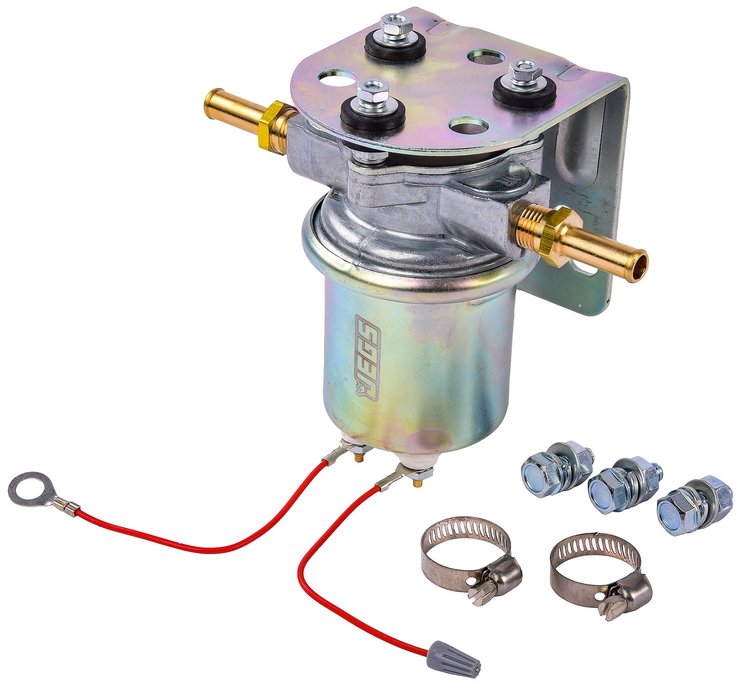

Get your boat back on the water with the JEGS 159075 universal marine electric fuel pump. This externally mounted unit uses a rotary vane pump design to deliver a consistent flow. With a set 2 psi fuel pressure, this pump is intended for carbureted applications. Easily installed with the included mounting bracket, wires, and barbed hose ends. Spend more time enjoying the water and not working on your boat.

Includes

• (1) Fuel Pump
• (1) Mounting Bracket
• (2) 3/8 in. Hose Barb x 1/4 in.-18 NPT
• (3) Bolts: 5/16 in. -18 x 3/4 in.
• (3) Lock washers: 5/16 in.
• (3) Flat washers: 5/16 in.
• (3) Nuts: 5/16 in. -18
• (3) Nuts: 10 -32
• (3) Lock washers: 3/16 in.
• (3) Flat washers: 5/16 in.
• (2) Spring Clamps
• (3) Vibration dampers (for mounting)
• (2) 14-Gauge wire leads ends
• (1) Twist-on wire connector

Fuel Pump Dimensions:

• Inlet: 1/4 in.-18 NPT Female Thread
• Outlet: 1/4 in.-18 NPT Female Thread
• Pump Housing Diameter: 2.402 in.
• Pump Housing Height: 4 in.
• Overall Width: 3 1/2 in.
• Overall Height: 5 3/4 in.

Mounting Bracket Dimensions:

• Bracket Width: 3 1/4 in.
• Bracket Height: 3 1/2 in.
