JEGS 555-159123 Fuel Pressure Regulator

Our universal mount billet fuel pressure regulator is ideal for turbocharged engines and will keep your fuel pressure where it needs to be when under boost. This unit includes a vacuum port you connect to your carburetor hat, and the engine vacuum will adjust the fuel pressure to the amount of boost pressure applied. An extra-large diaphragm ensures consistent pressure and eliminates issues of creep and fall-off.

JEGS 555-159123 Fuel Pressure Regulator Features:

• Fuel pressure to boost pressure ratio: 1:1 (For every pound of boost, an equivalent pound of fuel pressure is added)
• The durable anodized coating protects from corrosion

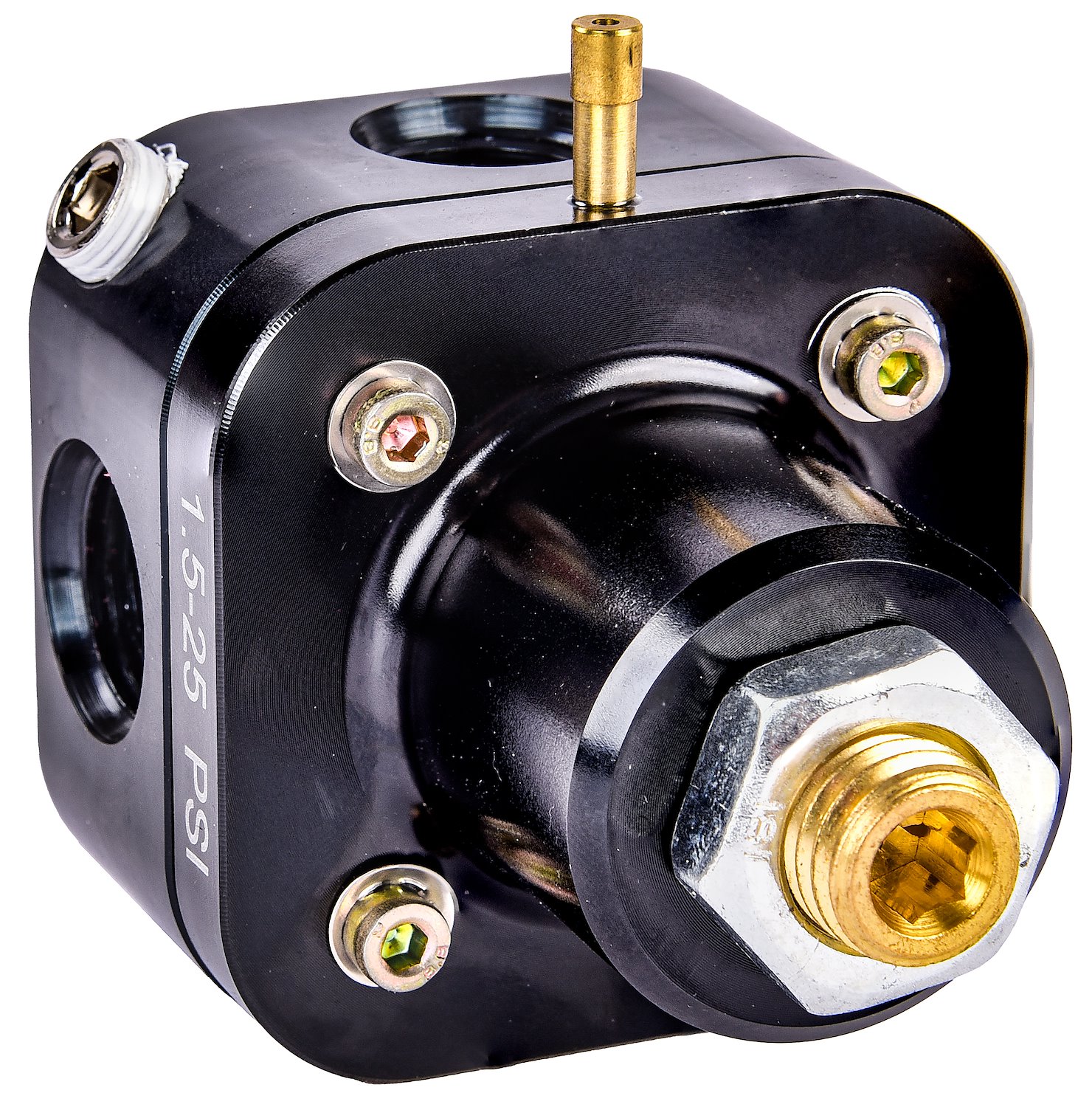

• The pressure is easily adjusted with the top-mounted Allen-head screw. Lock in place with the supplied nut.
• 1/8 in. NPT port plug can be removed to add a fuel pressure gauge
• Ports:
  • (1) Vacuum/Boost Reference
  • (1) -8 AN O-Ring Inlet (side)
  • (1) -8 AN O-Ring Return (bottom)
  • (3) 3/8 in. NPT Outlets (side)
  • (1) 1/8 in. NPT Gauge Port

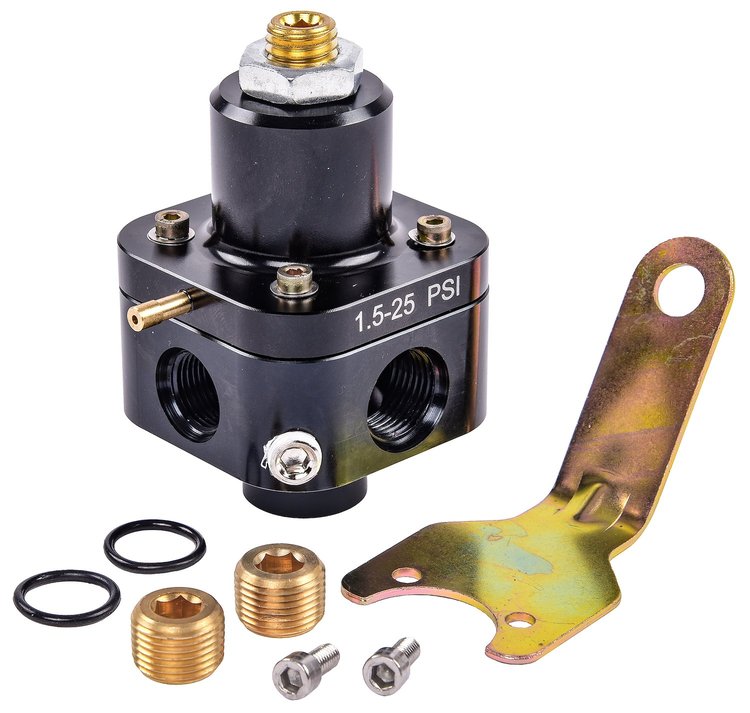

JEGS 555-159123 Fuel Pressure Regulator Includes:

• (1) Mounting bracket
• (2) Mounting screws [M5-0.8 mm]
• (2) O-rings
• (2) 3/8 in. NPT Plugs

JEGS 555-159123 Fuel Pressure Regulator Notes:

• This fuel pressure regulator is for carbureted applications only
• The mounting bracket can be installed in different orientations

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
