Made in USA

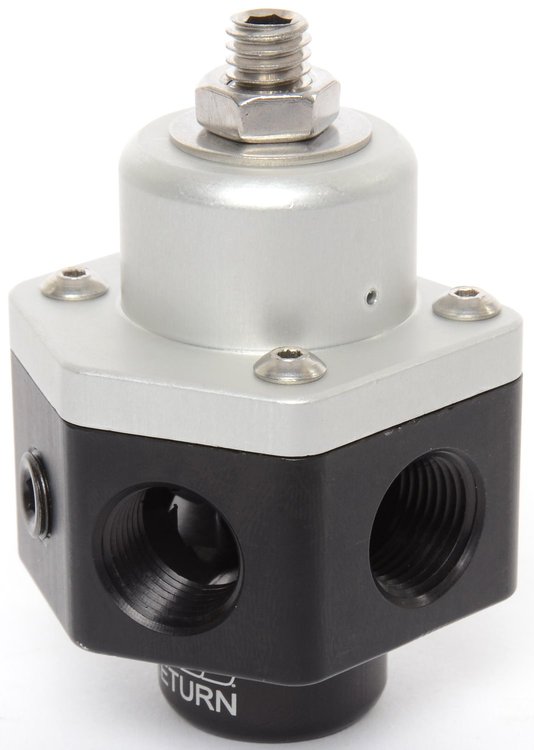

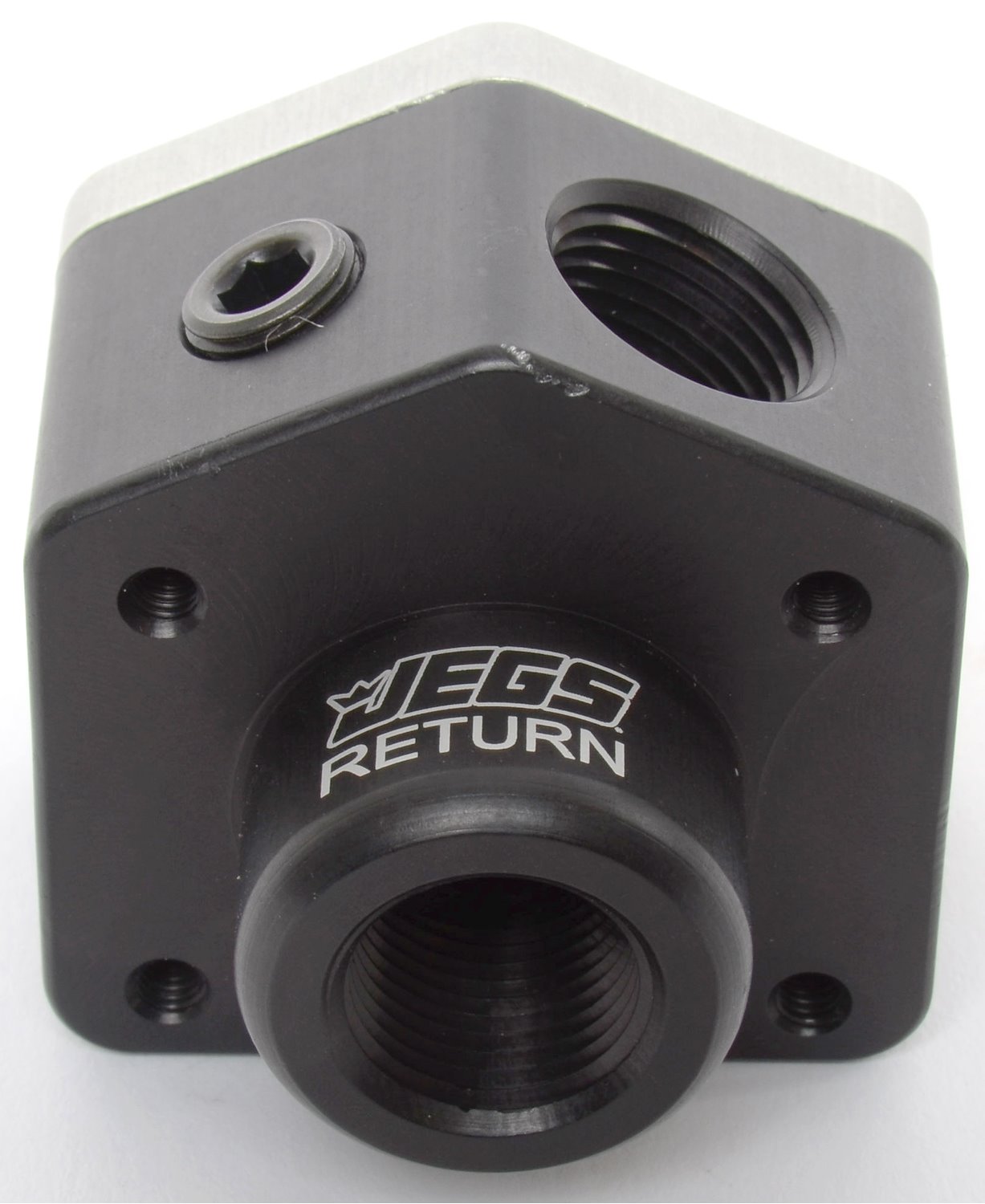

2-Port Pressure Regulator w/Return 5-12 PSI Outlet Pressure
InfoVehicle Info Needed
JEGSPART NUMBER: 555-15909

2-Port Pressure Regulator w/Return 5-12 PSI Outlet Pressure

$9499$104.99You Save$10.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

3/8" NPT Inlet Pressure Regulator
2-Port Pressure Regulator w/Return
  • Outlet Pressure: 5-12 PSI
  • 3.75" H x 2" W x 2.5" D
  • (1) 3/8" NPT Inlet Port
  • (2) 3/8" NPT Outlet Ports
  • (1) 3/8" NPT Bypass Port
  • (1) 1/8" NPT Auxiliary Port
  • Gasoline Applications

    • Maintains steady flow and precise pressure at all times with a maximum inlet pressure of 20 psi and outlet pressure adjustable from 5-12 psi
    • Port sizes: (1) 3/8" npt inlet port, (2) 3/8" npt outlet ports, (1) 3/8" npt bypass port, (1) 1/8" npt auxiliary port
    • Dimensions: 3.75" high x 2" wide x 2.5" deep
    • Black/silver finish for great looks and long life
    • Includes mounting bracket and hardware to help complete installation

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeFuel Pressure Regulator
    BrandJEGS
    Package Height3.4
    Package Width4.4
    Package Length5.7
    Weight0.8 PG
    Part CategoryPerformance Parts
    Regulator FinishBlack
    Outlet Size3/8NPT
    Inlet Size3/8NPT
    Boost/Vacuum Rise Ratio0.042361111
    Outlet Quantity2
    QuantitySold individually
    Boost/Vacuum Reference PortNo
    RebuildableN/A
    Inlet AttachmentFemale Threads
    Mounting Bracket IncludedYes
    Gauge PortYes
    Return Fitting Size3/8NPT
    Outlet AttachmentFemale Threads
    Regulator LocationInline
    Fittings IncludedNo
    Inlet QuantityOne
    Pressure Range (Psi)5-12
    Part FitmentUniversal
    Regulator StyleReturn
    Return AttachmentFemale Threads
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
