Complete Wiring Blueprint for Your Ford Restoration Project

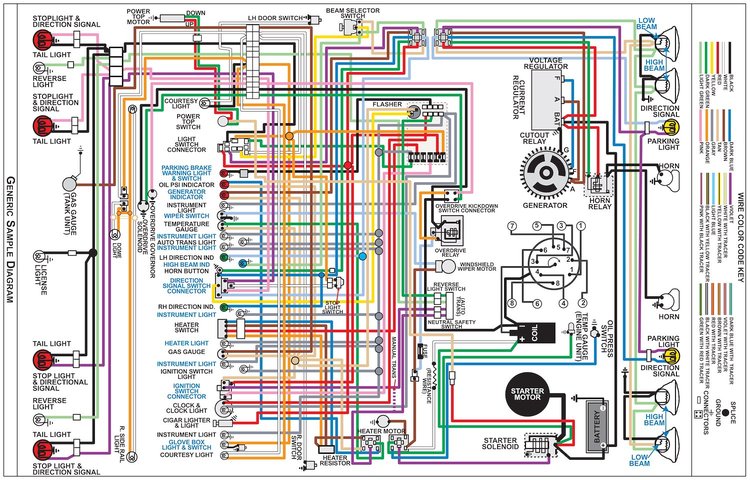

With a JEGS factory-color wiring diagram, you will be able to re-wire or trace down an electrical issue in your classic Ford with ease. Whether it be a Falcon, Fairlane, Galaxie, Comet, Zephyr, Mustang, etc., each application-specific schematic includes interior and exterior lights, engine bay, starter, ignition and charging systems, firing order, gauges, under dash harness, and more—including tracers where applicable. Available for hundreds of classic car and truck models, the large 17 in. x 11 in. size makes for easy reading, and the heavy-duty lamination protects from greasy hands. Pin them up in your shop for a quick reference.
