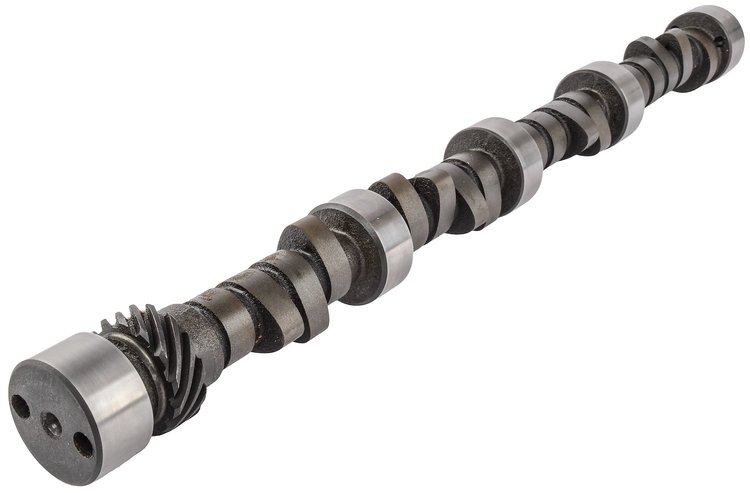

Hydraulic Flat Tappet Camshaft for 1957-1985 Chevy 262-400
InfoVehicle Info Needed
JEGSPART NUMBER: 555-200006

Hydraulic Flat Tappet Camshaft for 1957-1985 Chevy 262-400

$14299$154.39You Save$11.40
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

1957-1985 Chevy 262-400
Camshaft Only
    Hydraulic Flat Tappet Camshaft
  • 1957-1985 Chevy 262-400
  • Lift: .488"/.488"
  • Adv. Duration: 292°/292°
  • RPM Range: 3000-6200
    Includes:
  • (4oz.) Assembly Lube

    Intake Exhaust
    Advertised Duration 292° 292°
    Duration @ .050" 234° 234°
    Valve Lift w/ 1.5 Rocker Arms 0.488 0.488
    Valve Lift @ Cam 0.325 0.325
    Max Lift Angle 109° 119°
    Lobe Separation 114°
    Cam Timing @ .050" - Opens 8° ATDC 56° BBDC
    Cam Timing @ .050" - Closes 46° ABDC -8° BTDC

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandJEGS
Package Height2.7
Package Width2.7
Package Length23.7
Weight8.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)234
QuantitySold individually
Exh. Duration Advertised (Deg)292
Int. Centerline (Deg)109
Engine Make/SizeChevy Small Block (262-400)
Int. Duration @ .050 In. (Deg)234
Exhaust Valve Lift0.488 in (12.395 mm)
Exh. Centerline (Deg)119
Intake Valve Lift0.488 in (12.395 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)114
Rpm Range3000-6200
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Valve Springs RequiredYes
Package Qty1
Package TypeEA
