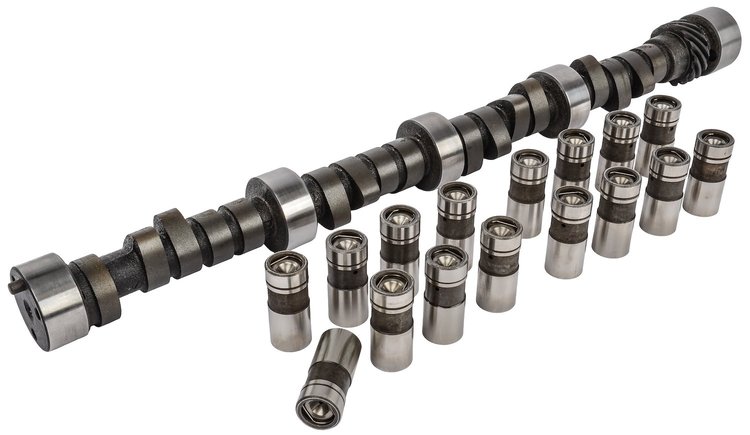

Hydraulic Flat Tappet Camshaft & Lifters
• 1957-1985 Chevy 262-400
• Lift: .488"/.488"
• Adv. Duration: 292°/292°
• RPM Range: 3000-6200
  Includes:
• (4oz.) Assembly Lube


• Increased peak horsepower and broader torque range over stock camshafts
• Fits 1957-1985 small block chevy engines such as 262, 283, 307, 327, 350, 383 (stroker), 400 and others using the popular platform
• Specifications:lift: 0.488"/0.488" , duration @ 0.050": 234°/234° , advertised duration: 292°/292° , lobe separation: 114°
• Power band rpm range is 3,000 rpm to 6,200 rpm
• Made in usa with high quality materials and assembly

	Intake	Exhaust
Advertised Duration	292°	292°
Duration @ .050"	234°	234°
Valve Lift w/ 1.5 Rocker Arms	0.488	0.488
Valve Lift @ Cam	0.325	0.325
Max Lift Angle	109°	119°
Lobe Separation	114°
Cam Timing @ .050" - Opens	8° ATDC	56° BBDC
Cam Timing @ .050" - Closes	46° ABDC	-8° BTDC

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
