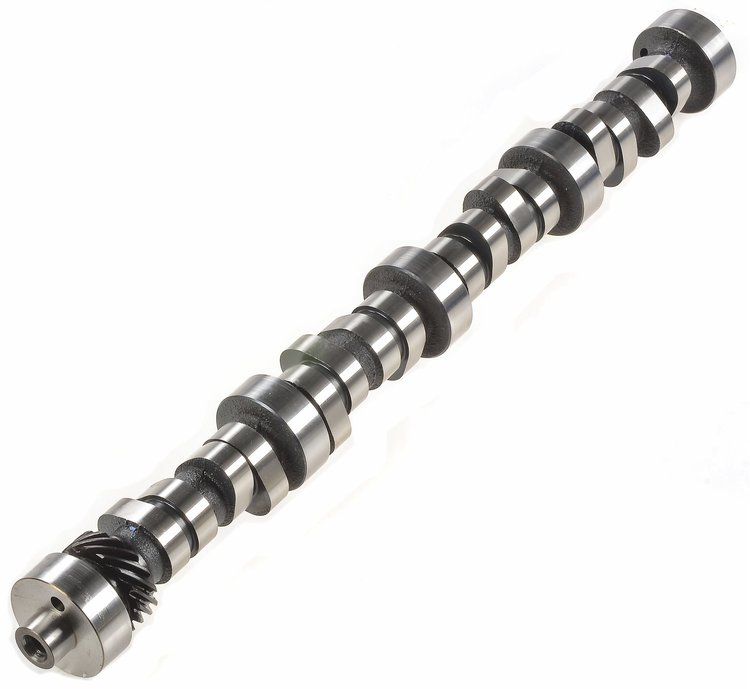

Hydraulic Roller Camshaft for 1989-1995 Ford 5.0L/5.8L
InfoVehicle Info Needed
JEGSPART NUMBER: 555-200540

Hydraulic Roller Camshaft for 1989-1995 Ford 5.0L/5.8L

$34499$374.99You Save$30.00
8 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block Ford
Hydraulic Roller Camshaft
  • 1989-1995 Ford 5.0L/5.8L
  • Lift: 0.499 in./0.510 in.
  • Duration @ 0.050 in.: 220 Degrees/226 Degrees
  • Advertised Duration: 285 Degrees/292 Degrees
  • Lobe Separation: 112 Degrees
  • RPM Range: 2000-5500 RPM

    Camshaft Specifications

    JEGS 555-200540 Hydraulic Roller Camshaft Notes:

    • Valve Lift when using 1.6:1 rocker arm ratio
    • Specially designed to be used in engines originally produced with OEM roller tappets
    • Use with Firing Order 1-3-7-2-6-5-4-8
    • For use with a mass air induction system
    • Non-roller cam blocks require a roller cam conversion kit M-6253-A50
    • Use with Ford 5.0L Distributor or similar gear on other distributors

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCamshaft
    BrandJEGS
    Package Height2.7
    Package Width2.8
    Package Length23.8
    Weight9.86 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)226
    QuantitySold individually
    Exh. Duration Advertised (Deg)292
    Int. Centerline (Deg)108
    Engine Make/SizeFord Small Block (5.0L/5.8L)
    Int. Duration @ .050 In. (Deg)220
    Exhaust Valve Lift0.51 in (12.954 mm)
    Exh. Centerline (Deg)116
    Intake Valve Lift0.499 in (12.675 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)285
    Lobe Separation (Deg)112
    Rpm Range2000-5500
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Valve Springs RequiredYes
    Package Qty1
    Package TypeEA
