Made in USA
B303 Camshaft Trans: 5-Speed
InfoVehicle Info Needed
FORD PERFORMANCEPART NUMBER: 397-M-6250-B303

B303 Camshaft Trans: 5-Speed

$39099
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block

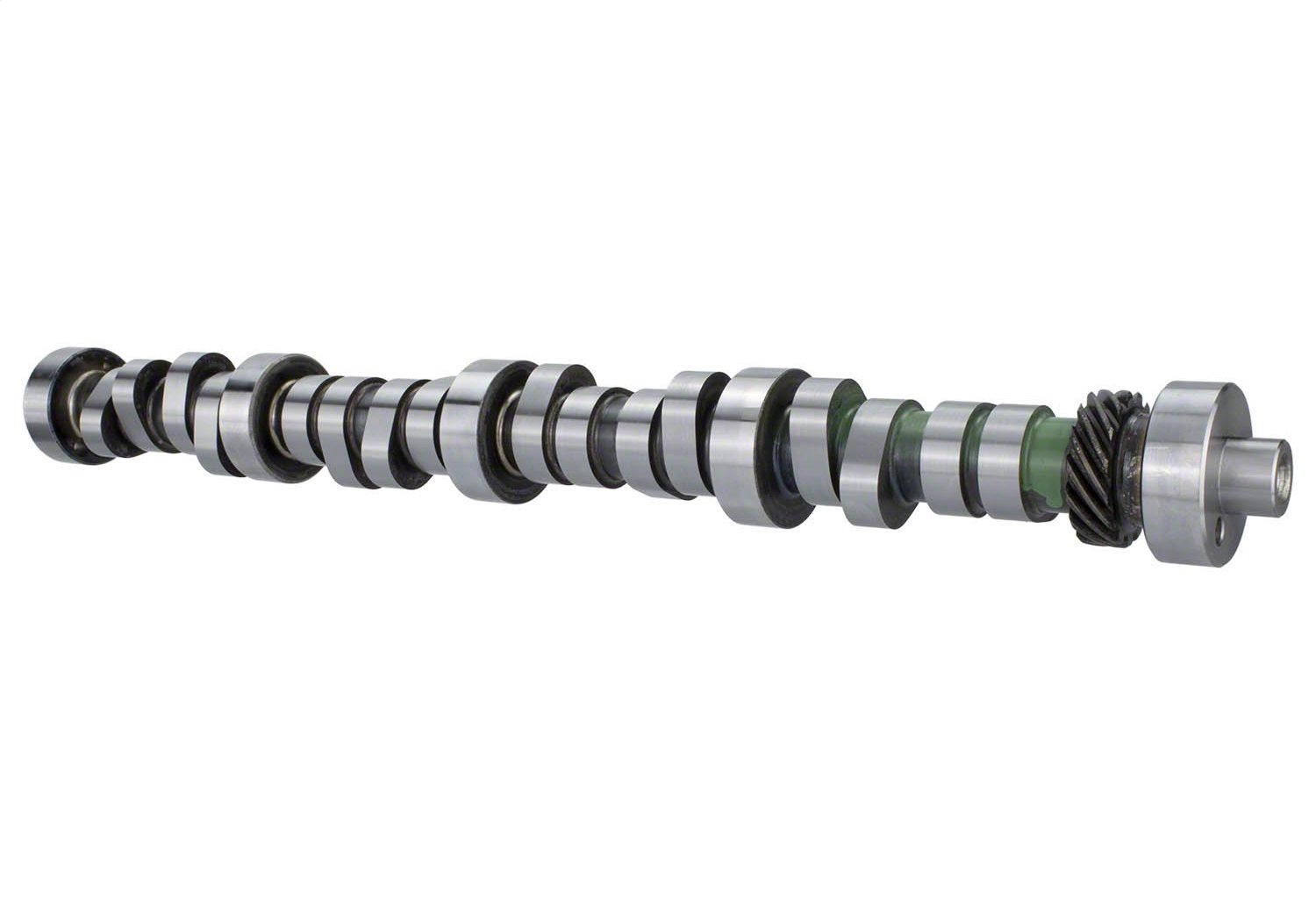

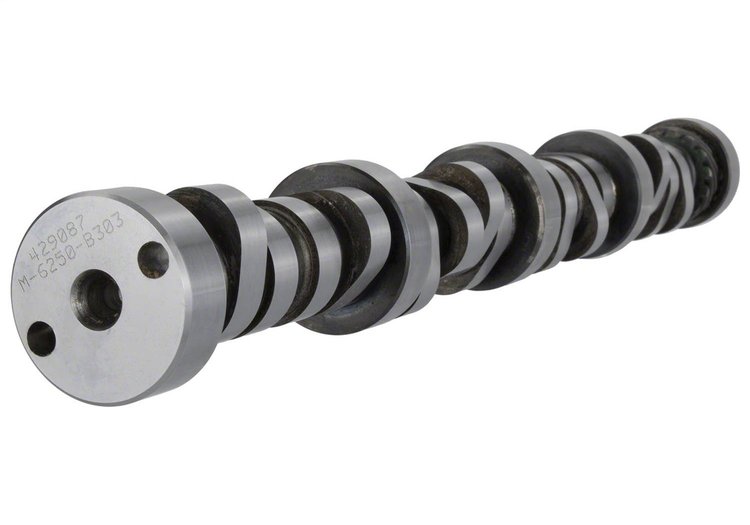

    B303 Camshaft
  • Trans: 5-Speed
  • Notes: Fair Idle, Good Low-End Torque, Significant Top-End Power Above 4,000 RPM

  • Cam Specifications


    Over the years, racing has become big business for teams, sponsors, and manufacturers around the world. However, "grassroots" motorsports remain at the core of Ford's DNA. Grassroots performance began with Ford and has become a part of American culture. The Model A is the most modified car in history, and enthusiasts the world over continue to embrace Ford, Mercury, and Lincoln cars and trucks from the 1930s right on through to today. Road racers, drag racers. circle track competitors and street rodders have channeled, stepped-on, hopped-up, chopped down and modified their favorite cars to excel on the street, at the track, and in car shows. The Ford Mustang immediately became part of this culture when it was introduced in 1964-and remains a staple of grassroots performance to this day. In 2014, Mustang marks 50 years of winning, and has driven its way into racing history. Moreover, the car's appeal is universal; a recent European study identified Mustang as the most desirable classic car in Europe. Motorsports continue to evolve, with advances in technology and greater demand for smaller powertrains, as well as growing appetite for new formats like Rally Cross and Drifting. How it develops in the next 50 years remains to be seen, but we intend to be there to celebrate it, thanks to passionate enthusiasts like you, who have driven the success of Ford, Ford Racing and Mustang since the beginning.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Requires Upgraded Valve Springs
  • Valve Spring Requires 120 lbs V. Seat Press. Min. 295 lbs Open
  • On EFI Perf Camshafts Work Only w/Mass Air Induction Syst.
Part TypeCamshaft
BrandFORD PERFORMANCE
Package Height1.7
Package Width3.1
Package Length27.4
Weight10.61 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberM-6250-B303
Exh. Duration Advertised (Deg)284
Engine Make/SizeFord 5.0L/302
Intake Valve Lift With Factory Rocker Arm Ratio (I0.48
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range3,000-6,000
Intake Valve Lift0.481 in (12.217 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)112
Rpm Range1600-5600
Advertised Duration284 int./284 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.48
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.480 int./0.480 exh.
QuantitySold individually
Exhaust Valve Lift0.48 in (12.192 mm)
Advertised Intake Duration284
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration284
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./224 exh.
Valve Springs RequiredYes
Vendor Part NumberM-6250-B303
Package Qty1
Package TypeEA
