Vehicle Info NeededJEGSPART NUMBER: 555-28660

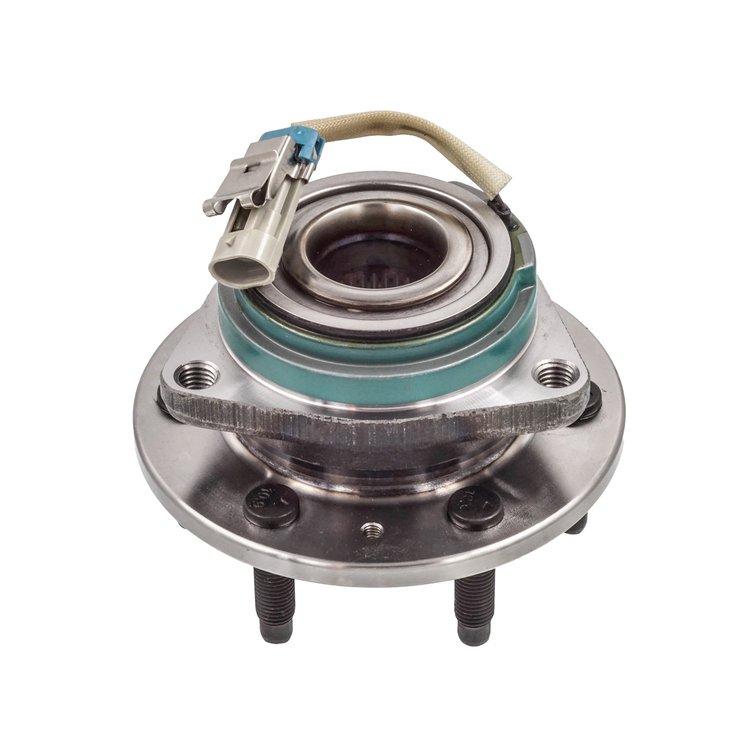

Wheel Bearing and Hub Assembly Fits Select 2004-2011 Cadillac Models
$4899
Ships on 03/12/2027
Lowest Price GuaranteeCadillac
Wheel Bearing and Hub AssemblyFits Select 2004-2011 Cadillac Models See Fitment Tab for All Applications Lugs - 6 Torque to 118Ft.-lbs/160Nm.
JEGS 555-28660 Note:
- If the included torque specification guide does not list your specific vehicle, please refer to your vehicle manufacturer’s service manual or owner’s manual for the correct torque specifications. This product is designed as a direct OE replacement; however, proper installation procedures and torque values should always be verified for your specific application.
Part TypeWheel Bearing and Hub Assembly
BrandJEGS
Package Height6.5
Package Width6.5
Package Length7.0
Weight8.26 PG
Part CategoryReplacement Parts
Wiring Harness IncludedNo
Abs Sensor Ring IncludedYes
Number Of Bolts To Knuckle3
Flange Bolt Size (In)1.54
Gasket Or Seal IncludedYes
Total Hub Height (Mm)108
Mounting Hole Quantity4
Lug Bolts Included6
Abs Sensor IncludedYes
Hub Centerbore Diameter (Mm)115
Driven Or Non-DrivenDriven
Flange Bolt Thread SizeM12-1.50
Wheel Stud Quantity6
Abs Connector ShapeOval
Hub Centerbore Diameter (In)4.53
Number Of Mounting Bolts To Knuckle3
Abs Sensor Ring TypeSensor
Wheel Stud IncludedYes
Hub Diameter (In)5.73
Flange Bolt Size (Mm)39
Total Hub Height (In)4.26
Part FitmentDirect Fit
Number Of Abs Sensor Ring Teeth47
Package Qty1
Package TypeEA
