Vehicle Info NeededJEGSPART NUMBER: 555-29409

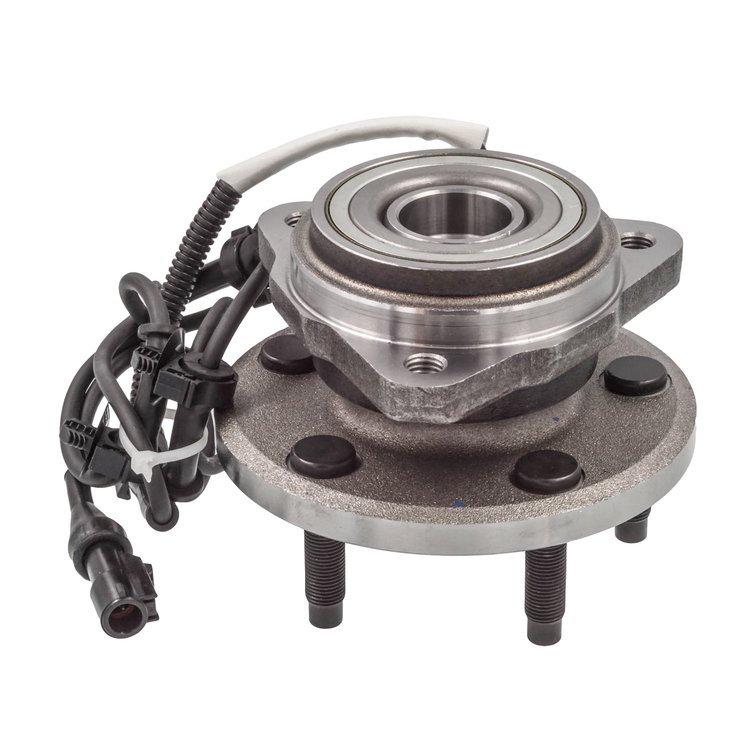

Wheel Bearing and Hub Assembly Fits Select 1995-2011 Ford, Mazda, Mercury Models
$5499
Ships on 03/15/2027
Lowest Price GuaranteeFord, Mazda, Mercury
Wheel Bearing and Hub AssemblyFits Select 1995-2011 Ford, Mazda, Mercury Models See Fitment Tab for All Applications 4WD Torque to 184Ft.-lbs/250Nm.
JEGS 555-29409 Note:
- If the included torque specification guide does not list your specific vehicle, please refer to your vehicle manufacturer’s service manual or owner’s manual for the correct torque specifications. This product is designed as a direct OE replacement; however, proper installation procedures and torque values should always be verified for your specific application.
Part TypeWheel Bearing and Hub Assembly
BrandJEGS
Package Height6.75
Package Width6.75
Package Length7.25
Weight10.0 PG
Part CategoryReplacement Parts
Wiring Harness IncludedYes
Abs Sensor Ring IncludedYes
Number Of Bolts To Knuckle3
Flange Bolt Size (In)1.48
Gasket Or Seal IncludedYes
Total Hub Height (Mm)121
Mounting Hole Quantity5
Lug Bolts Included5
Abs Sensor IncludedYes
Hub Centerbore Diameter (Mm)114
Driven Or Non-DrivenDriven
Flange Bolt Thread Size1/2-20
Wheel Stud Quantity5
Abs Connector ShapeRound
Hub Centerbore Diameter (In)4.5
Number Of Mounting Bolts To Knuckle3
Abs Sensor Ring TypeSensor
Wiring Harness Length51
Wheel Stud IncludedYes
Hub Diameter (In)5.88
Flange Bolt Size (Mm)37
Total Hub Height (In)4.77
Part FitmentDirect Fit
Number Of Abs Sensor Ring Teeth54
Package Qty1
Package TypeEA
