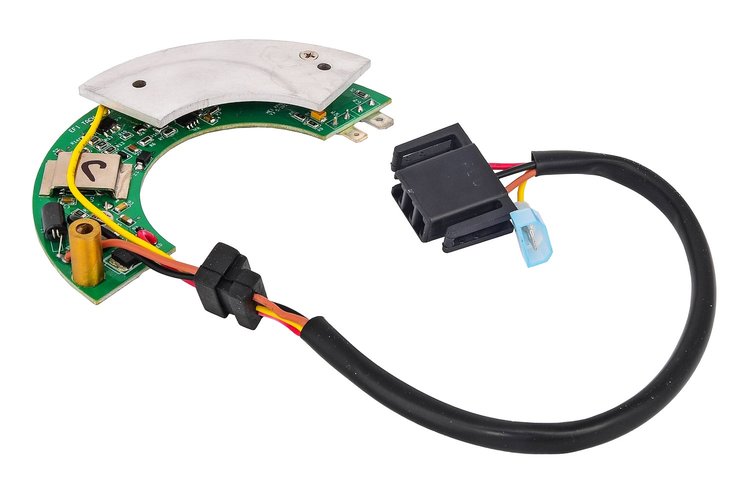

JEGS 555-40062 GM HEI High-Output Module Features:

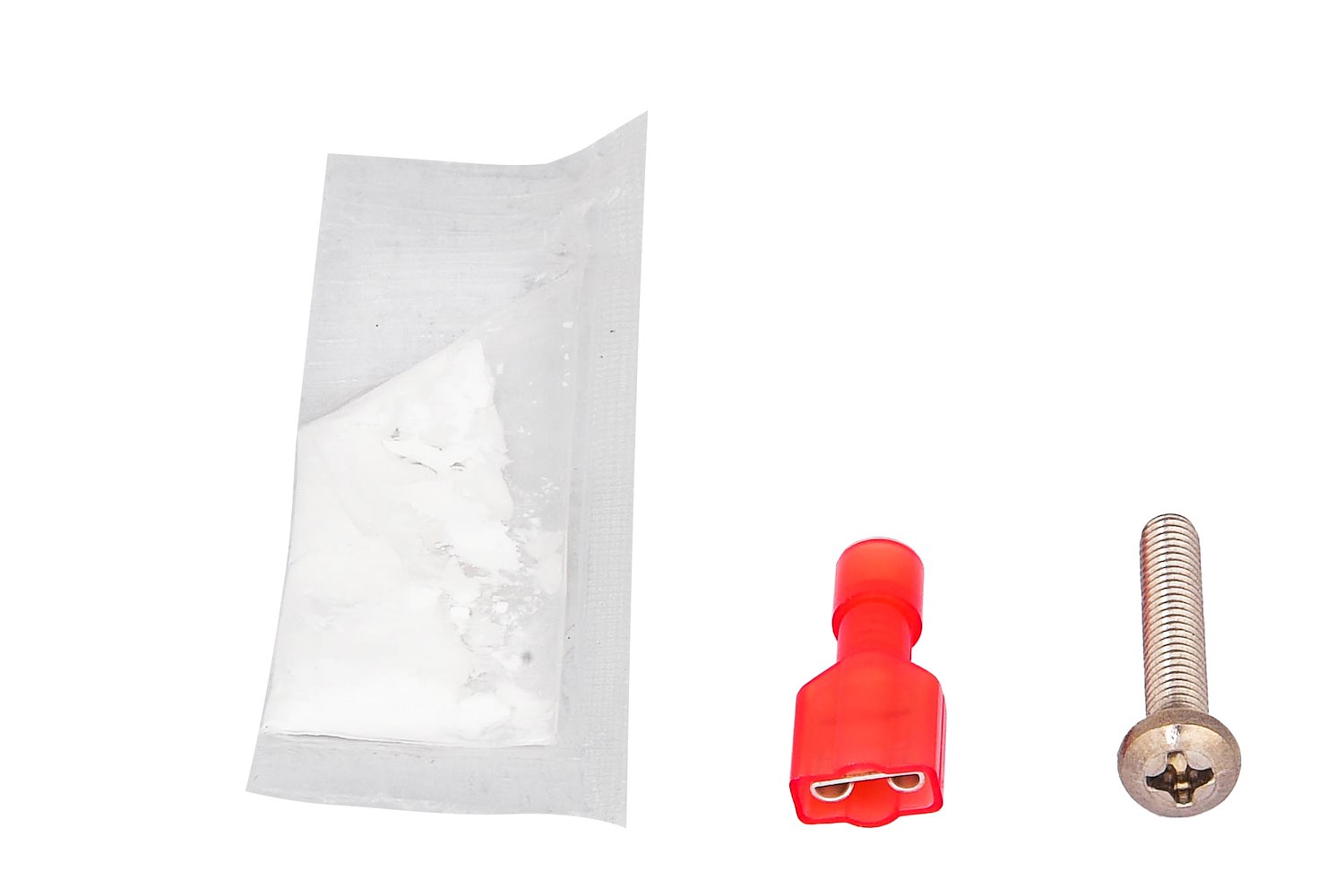

• Includes #8-32 Machine Screw, 14-18 Gauge Female Spade Connector and White Thermal Grease Pack
• Easy Plug-N-Play Installation
• Digital Output
• Maximum Output Voltage: 400 mJ
• Spark Energy w/3.5 mH pL Coil: 3.5 AMPS
• Dwell Control Maximum Current: 7.5 AMPS
• Operating Voltage: 12 to 18V
• Rev Limiter Overrev Protection is pre-set at 5,000 RPM and can be adjusted up to 9,500 RPM
  See Instructions for Rev-Limiter RPM Adjustments

JEGS 555-40062 GM HEI High-Output Module Notes:

• We recommend using a coil with more than stock turns ratio output for optimum performance in spark output. The perfect choice is a coil with at least a 70:1 turns ratio and up to a 130:1 turns ratio output.
• This HEI module assembly replaces the stock 4-pin GM module and the harness/condenser assembly in a 4, 6 (even fire only), and 8-cylinder GM HEI distributor
• DO NOT USE DIELECTRIC GREASE IN PLACE OF THE ENCLOSED WHITE THERMAL GREASE
  Dielectric grease inhibits heat transfer and will cause the module to overheat and fail.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
