CD Electronic Ignition Coils

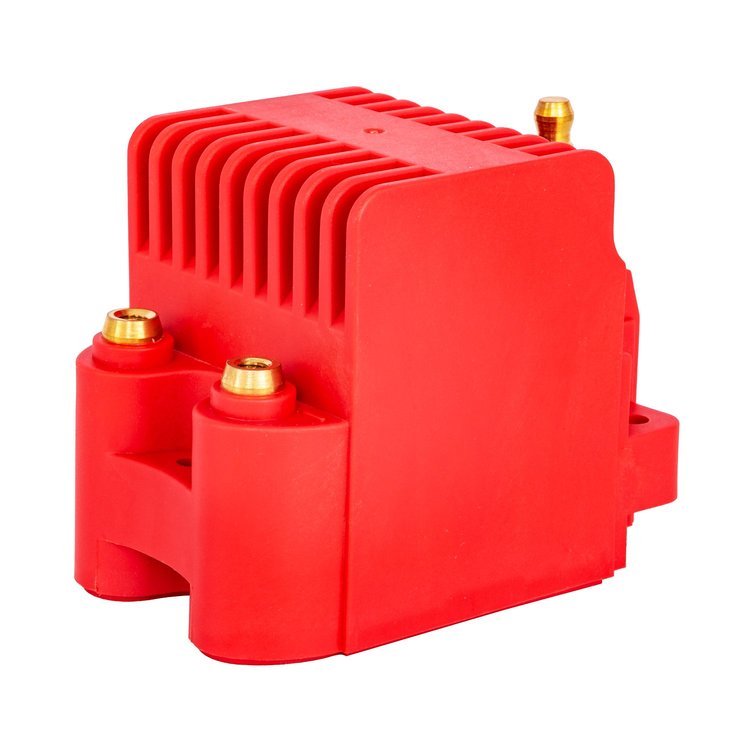

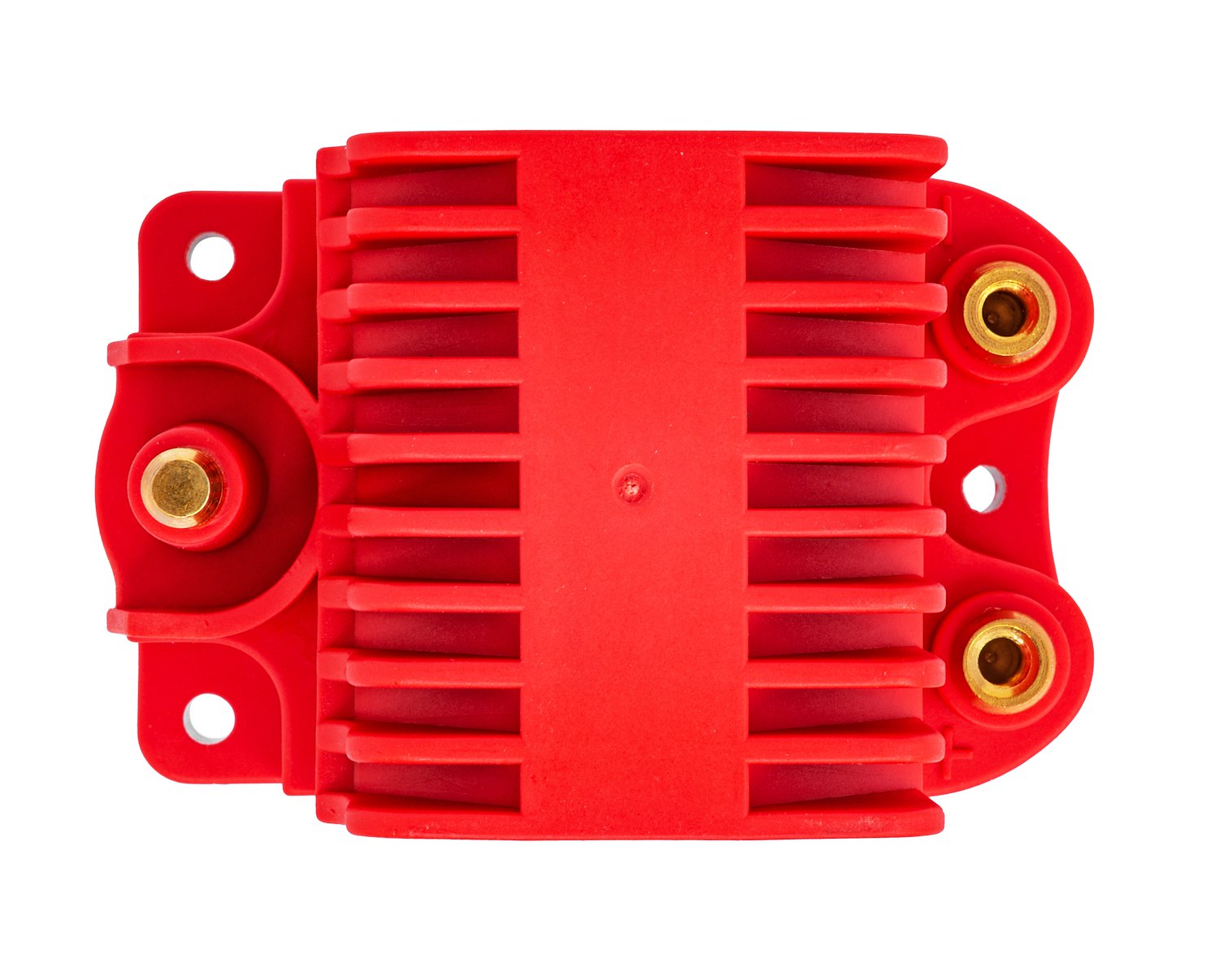

High-Output Ignition Coil
  • For Electronic and CD Ignition Systems
  • 40,000 V
  • Heavy Gauge Windings
  • Epoxy Filler
  • Glass Reinforced Polyester Housing
  • Brass Terminals
  • Red Finish
  • Includes:
    • 90-Degree Boot
    • Mounting Hardware

    • Features high output voltage, heavy gauge windings, brass terminals, and glass reinforced polyester housing
    • Designed to work specifically with the high output inductive storage ignition module in rtr distributors
    • Includes complete installation kit
    • Housing molded of glass reinforced polyester and high temperature epoxy encapsulation resists shock and vibration while providing exceptional thermal conductivity
    • Specifications: 40,000 volts, 0.4 ohms primary resistance, 5.0k ohms secondary resistance, 65:1 turns ratio, 12-volts
    • JEGS 555-40155 High-Output Ignition Coil

      Don’t let a weak spark hinder your vehicle’s performance—crank it up with a high output JEGS Ignition Coil. This coil is designed to work specifically with the high output inductive storage ignition module in RTR distributors. The heavy gauge windings are engineered to ensure ultimate power at higher RPM levels. A housing molded of glass reinforced polyester and high-temperature epoxy encapsulation resists shock and vibration while providing exceptional thermal conductivity. Brass primary contacts guarantee maximum conductivity, while the male tower offers surpassing boot/terminal retention and protection from arch over. This coil will also work with 6 Series CD ignition systems.

      JEGS 555-40155 High-Output Ignition Coil Features:

      • Primary Resistance: 0.4 OHMs
      • Secondary Resistance: 5.0K OHMs
      • Primary Inductance: 6.5 mH
      • Turns Ratio: 65:1
      • Maximum Voltage: 40,000 Volts
      • Peak current: 300 mA
      • Spark duration: 220 uS

      JEGS 555-40155 Mounting Hardware Included:

      • (3) M4-0.7 x 35 mm Bolts
      • (3) M4-0.7 Nylon Lock Nuts
      • (3) Washers
      • (2) #10-32 x 3/8 in. Screws
      • (3) Rubber Mounts
      • (2) Ring Connectors

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeIgnition Coil
    BrandJEGS
    Package Height3.6
    Package Width3.6
    Package Length4.3
    Weight1.25 PG
    Part CategoryPerformance Parts
    Carb Eo NumberN/A
    Primary Resistance0.400 ohms
    Coil Wire AttachmentMale/HEI
    Coil StyleE-core
    QuantitySold individually
    Ballast Resistor IncludedNo
    Maximum Voltage40,000 V
    Turns Ratio65:01:00
    Peak Current300 mA
    Coil ShapeSquare
    Mounting Bracket IncludedNo
    Inductance6.5 mH
    Coil ColorRed
    Coil Wire IncludedNo
    Spark Duration220 uS
    Product Height3.5 in (88.9 mm)
    Secondary Resistance5.0K ohms
    Part FitmentUniversal
    Coil Internal ConstructionEpoxy
    Diameter2.25 in (57.15 mm)
    Package Qty1
    Package TypeEA
