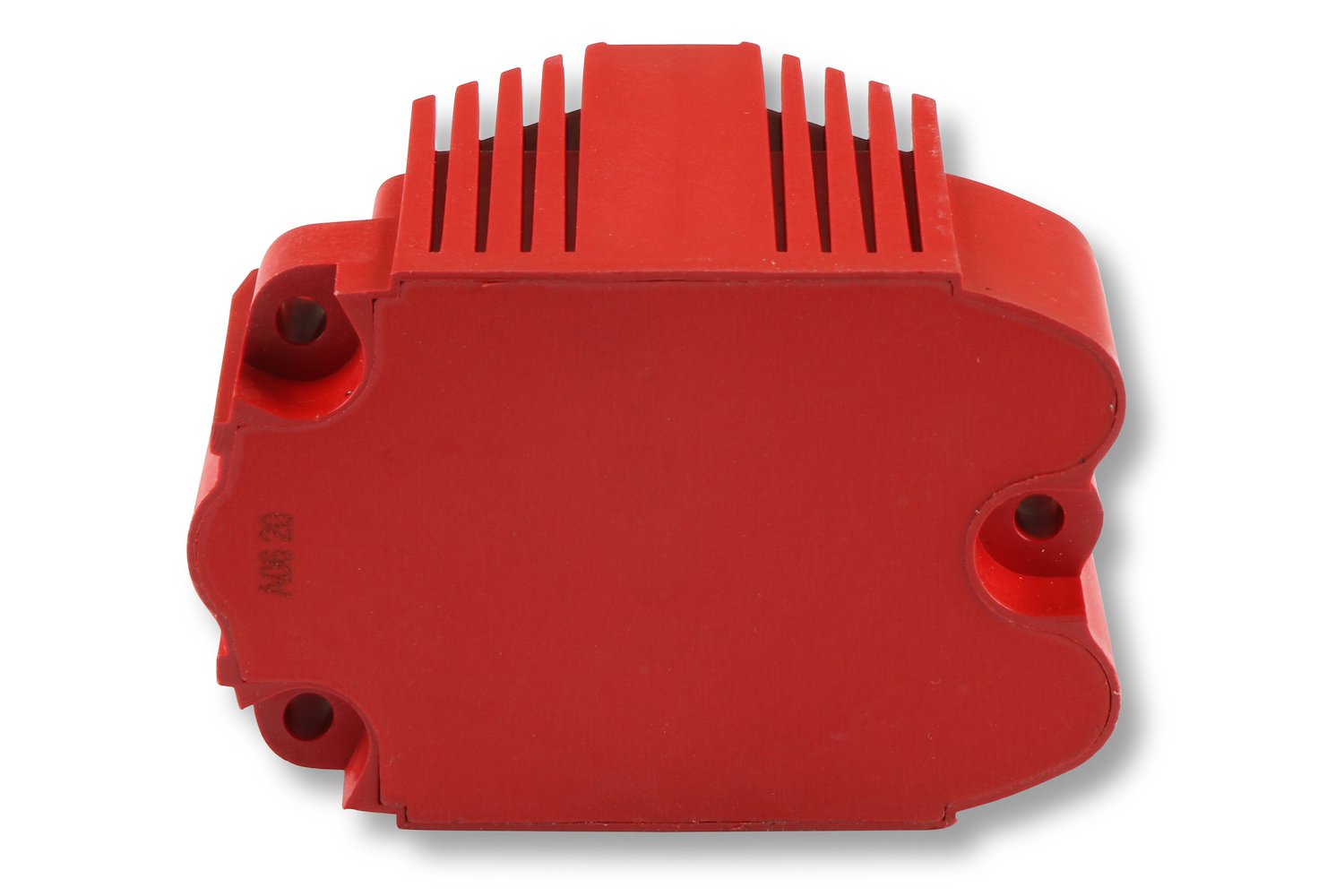

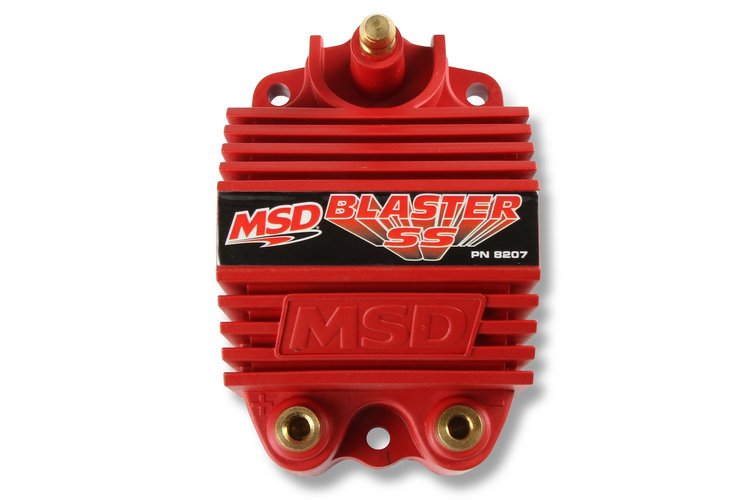

Red Blaster SS Coil For Electronic and MSD Ignitions [Brass Terminals]

Vehicle Info Needed

MSD IGNITIONPART NUMBER: 121-8207

Red Blaster SS Coil For Electronic and MSD Ignitions [Brass Terminals]

Name: Red Blaster SS Coil For Electronic and MSD Ignitions [Brass Terminals]
Brand: MSD IGNITION
SKU: 121-8207
Price: 79.95 USD
Availability: InStock

^$79⁹⁵

3 left in stock

Ships Tomorrow

Lowest Price Guarantee

Best Value

Save
^$34⁹⁶

555-40150

High-Output Ignition Coil for CD Ignition System

^$44⁹⁹

Blaster SS

For Electronic and MSD Ignitions
Brass Terminals
Rynite Housing
CARB E.O Number D-40-37

Includes:
90° Boot
Terminal
Vibration Mounts

Coil Specs:
Turns ratio: 70:1
Primary resistance: .355 OHMs
Secondary resistance: 4.4K OHMs
Inductance: 6.9 mH
Maximum voltage: 40,000 Volts (Tested with 6AL Ignition)
Peak current: 300 mA
Spark duration: 220 uS
Features:
Improved output coil for electronic ignitions, and MSD Ignitions
Efficient winding design and assembly creates a compact housing
Primary and secondary windings are encased in Ciba polyurethane
70:1 turns ratio and lower primary resistance produce high voltage output
Dupont Rynite housing with a tall tower and brass primary terminals
50 State Legal
CARB E.O Number D-40-37
Improved output coil for electronic ignitions, and MSD Ignitions
Efficient winding design and assembly creates a compact housing
Primary and secondary windings are encased in Ciba polyurethane
70:1 turns ratio and lower primary resistance produce high voltage output
Tough, rigid housing with a tall tower and brass primary terminals

Coils With High-Output Energy

MSD Blaster Coils are designed to improve spark output in stock coil, Blaster Ignition, or MSD 5, 6, & 7 Ignition Control Boxes.

Part TypeIgnition Coil

Product LineMSD Performance Blaster Coils

BrandMSD IGNITION

Package Height2.4

Package Width5.9

Package Length8.0

Weight1.3 PG

Part CategoryPerformance Parts

Carb Eo NumberD-40-37 (pdf)

Primary Resistance0.355 ohms

Coil Wire AttachmentMale/HEI

Coil StyleE-core

QuantitySold individually

Overall Length3.5 in (88.9 mm)

Ballast Resistor IncludedNo

Maximum Voltage40,000 V

Turns Ratio70:01:00

Peak Current300 mA

Coil ShapeSquare

Mounting Bracket IncludedNo

Inductance6.9 mH

Coil ColorRed

Coil Wire IncludedNo

Spark Duration220 uS

Secondary Resistance4.40K ohms

Part FitmentSemi Universal

Coil Internal ConstructionEpoxy

Vendor Part Number8207

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
