High-Output Ignition Coil for CD Ignition Systems [Black]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-40175

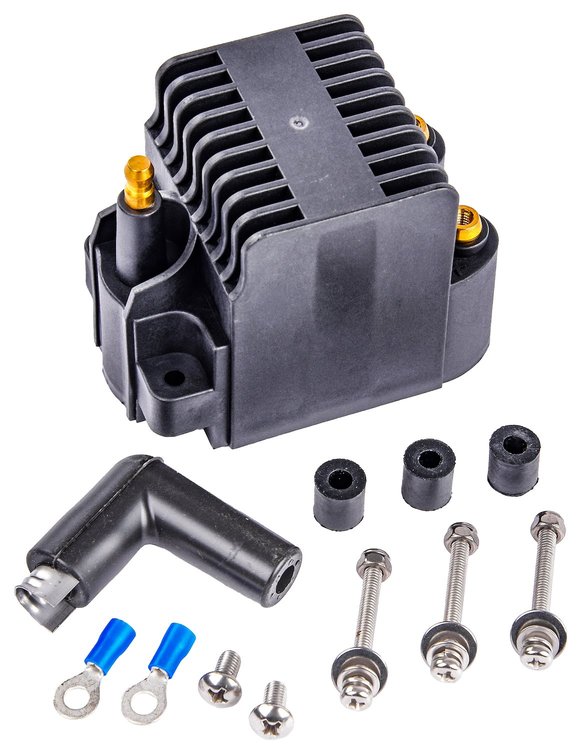

High-Output Ignition Coil for CD Ignition Systems [Black]

$4299$46.99You Save$4.00
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Hi-Temp Universal Spark Plug Wires [135-Degree Black Ceramic Boot]

JEGS

Hi-Temp Universal Spark Plug Wires [135-Degree Black Ceramic Boot]

Part Number : 555-40282
$12999$142.99
You Save$13.00
Hi-Temp Universal Spark Plug Wires [90-Degree Black Ceramic Boots]

JEGS

Hi-Temp Universal Spark Plug Wires [90-Degree Black Ceramic Boots]

Part Number : 555-40280
$13499$148.99
You Save$14.00
Hi-Temp Universal Spark Plug Wires [Straight Black Ceramic Boot]

JEGS

Hi-Temp Universal Spark Plug Wires [Straight Black Ceramic Boot]

Part Number : 555-40284
$9799$107.99
You Save$10.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00

CD Electronic Ignition Coils
Ignition Coil
  • For CD Ignition Systems
  • High-Output
  • 40,000 V
  • Epoxy Filled
  • Brass Terminals
  • Black Finish
  • Sold Individually
  • Includes:
    • 90-Degree Boot
    • Mounting Hardware

      JEGS 555-40175 CD Ignition Coil Features:

      • Efficient winding design and assembly creates a compact housing
      • Primary and secondary windings are encased in high-temperature epoxy
      • HEI-style wire attachment
      • Turns Ratio: 70:1
      • Primary Resistance: 0.2 Ohms
      • Secondary Resistance: 3.3K Ohms
      • Primary Inductance: 3.6 mH
      • Secondary Inductance: 17-18 H

      JEGS 555-40175 Mounting Hardware Included:

      • (3) M4-0.7 x 35 mm Bolts
      • (3) M4-0.7 Nylon Lock Nuts
      • (3) Washers
      • (2) #10-32 x 3/8 in. Screws
      • (3) Rubber Mounts
      • (2) Ring Connectors

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeIgnition Coil
    BrandJEGS
    Package Height2.5
    Package Width6.0
    Package Length8.0
    Weight1.34 PG
    Part CategoryPerformance Parts
    Mounting Bracket IncludedNo
    Ignition TypeCD Electronic
    Coil ColorBlack
    Coil Wire AttachmentMale/HEI
    Coil StyleE-core
    Part FitmentUniversal
    Coil Internal ConstructionEpoxy
    Maximum Voltage40,000 V
    Coil ShapeSquare
    Package Qty1
    Package TypeEA
