This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Features:
- 2.5" L x 2.5" W x 0.90" H
- For 4, 6, and 8-cylinder engines
- Compatible with accessories up to 3 amps (relay required to control circuits over 3 amps)
- RPM Range: 2,000 to 9,900
- Overcurrent protection
- Made in the USA
- Has push buttons and digital display (four LED digits) to program the unit
- No need to remove the cover to program
- Short circuit protection
- Also functions as a tachometer
- Ideal for nitrous applications because you can activate nitrous at a preset RPM and then have it shut off before peak RPM
Note: Most late model engines that don't have a distributor or have multiple coils will need a tach adapter for use with this RPM switch.

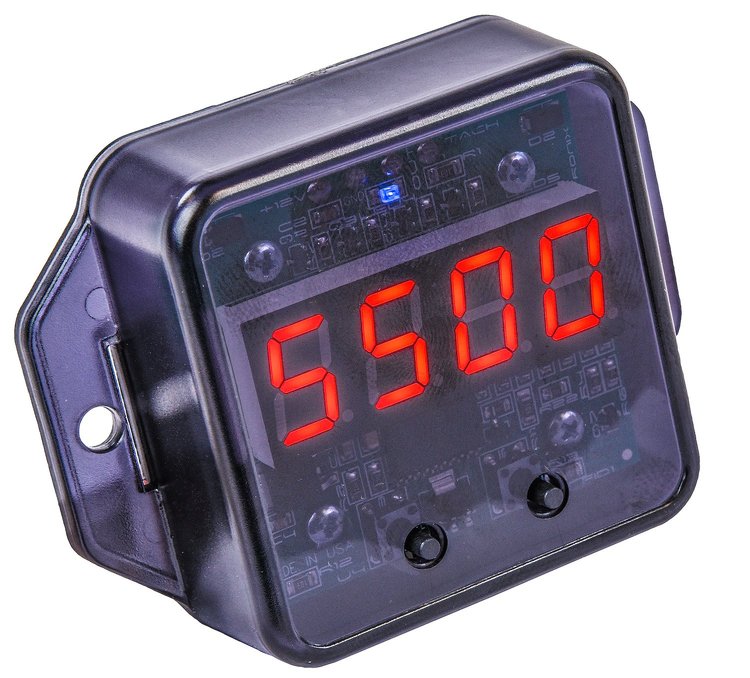

Digital Switch for RPM-Activated Accessories
JEGS RPM-Activated Switch with digital readout allows you to turn accessories on or off at a predetermined RPM. Fully digital, this unit eliminates the need for chips or modules. Ideal for nitrous applications, it allows you to activate nitrous at a preset RPM and then have it deactivate before peak RPM. This switch will work on up to a twelve-cylinder engine and operates in a range of 2,000 to 9,900 RPM. (Replaces 555-40822)
