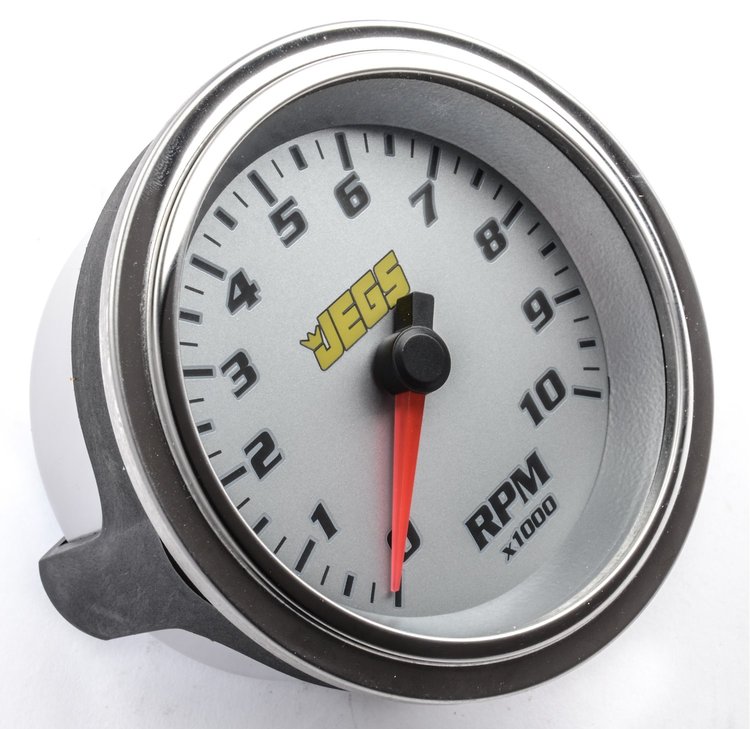

Vehicle Info Needed3-3/8" Electric Tachometer Silver
Ships Tomorrow
Lowest Price Guarantee- 3-3/8" Electric Tachometer
- Silver
- 0-10,000 RPM
- LED Lighting
- Works with 1-12 Cylinder Engines
When using these tachometers or speedometers with JEGS 2-5/8" or 2-1/16" Gauges - upgrade those gauges to LED lighting (use LED bulb 555-41210). This will provide the same style look for night driving.Speedometer works with most Hall-Effect or Magnetic Pulse sending units that meet the following conditions: - Pulse range generated proportional to vehicle speed.
- Signal with minimum 3V peak to peak signal - typical for 3-wire Hall-Effect and 2-wire vehicle speed sensor outputs.
- 4,000 to 200,000 pulses per mile (8,000 to 16,000 is typical).
A B C 3-7/8" 1-3/4" 2-3/4"
Sport Style Performance Gauges

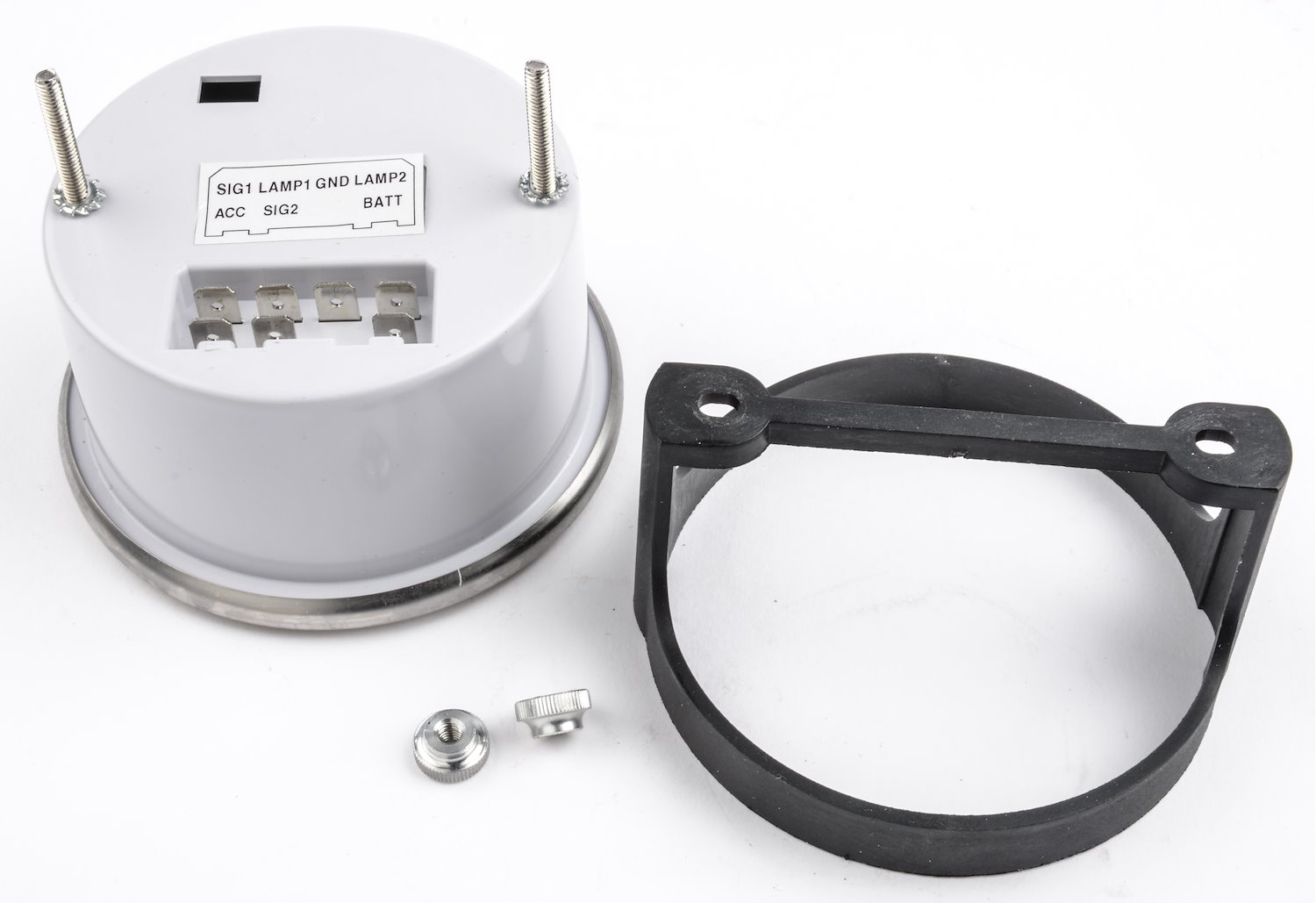

Designed for in-dash mounting, JEGS 3 3/8 in. Diameter Tachometers and Speedometers have LED lighting and high-speed stepper motor movement. The gauge dial matches JEGS 2 5/8 in. and 2 1/16 in. gauges and is available in the same colors (black, silver, or white). These gauges come with a chrome bezel, plus two aluminum trim rings (silver and black) that snap onto the bezel. The tachometer has two options for signal input with a standard inductive coil ignition or for an ignition box with a signal wire (i.e. CD-style ignition box). This tachometer does not require a tach adapter. The speedometer is programmable and allows recalibration when making changes to the tire size or gear ratio. A remote-mounted button is used to set the two trip odometers and to calibrate the speedometer. Compatible with most production electronic speedometer sending units (senders are also available separately if needed). The optional wiring connector (available in the Kit) allows for a simple reliable connection to the blade terminals on the back of the gauge.
