Vehicle Info NeededJEGSPART NUMBER: 555-48143-BT

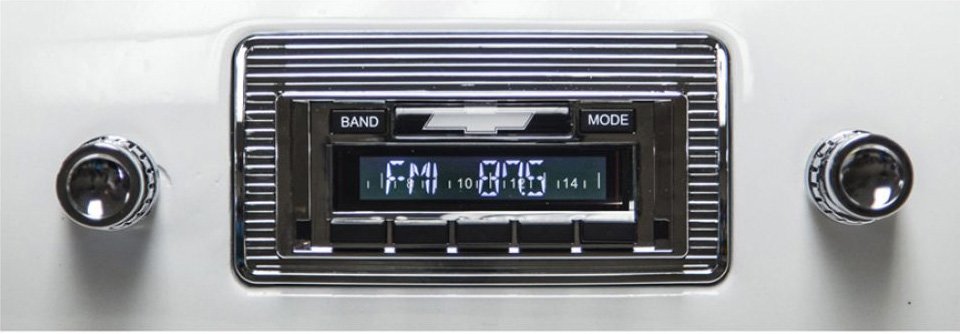

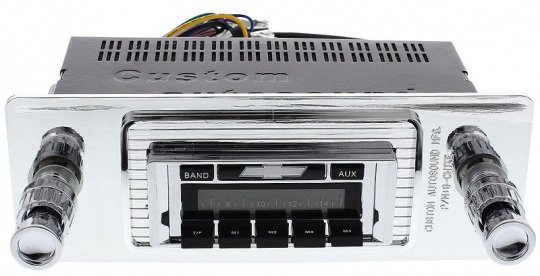

47-53 CH TRUCK 630 W/BLUE
$39999
Ships on Sep 18, 2026
Lowest Price GuaranteePart TypeRadio
BrandJEGS
Package Height4.0
Package Width9.0
Package Length9.0
Weight4.5 PG
Part CategoryAccessories
Fm S/N Ratio67dB
BluetoothYes
Fm If Frequency10.7MHz%
Tuner TypePLL (Phase-Locked Loop)
Fm T.H.D0.80%
Audio Thd (Total Harmonic Distortion1%
Audio System PowerMax 300 Watts
Chassis Dimensions7.750 in (200mm) W x 2 in (50mm) H x 5 .75 in (150mm) D
Radio Model630 Series
Power Supply12VDC Negative Ground
Fm Frequency Range87.5-107.9 MHz
Audio Response30Hz-I8KHz
Stand-By Current<2mA
Am Frequency Range530-1710KHz
Fm Quieting Sensitivity4uV
Usb Port Phone Charging CapableYes
Am If Frequency450KHz
Speaker Impedance2-8 ohm
Fm Separation35dB
Fm Capture Ratio1.5dB
Fm Usable Sensitivity12.5dBf
Am S/N Ratio50dB
QuantitySold Individually
Am Selectivity25dB
Am Sensitivity20uV
Audio Output Channels45 X 4
Audio Output Impedance4ohm per speaker
Fm Sensitivity2.6V
Rms Watts Per Channel52 watts
Part FitmentDirect Fit
Vendor Part NumberCAM-CHTKE-630P
Package Qty1
Package TypeEA
