JEGS 555-48351 Secretaudio Radio

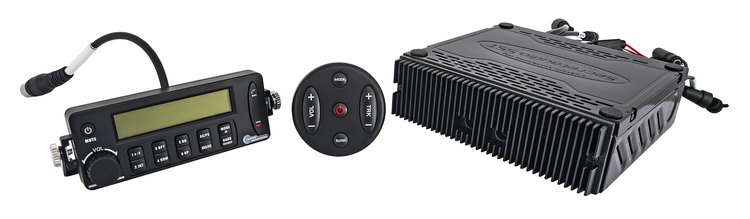

You can now bring your classic car or truck audio system into the 21st Century without having to remove the factory radio. The Secretaudio tuner/amplifier is designed to be mounted hidden away under a seat or under the dash, and the LCD panel display can be surface mounted, bracket mounted in the glove compartment, or wherever you want it. The radio frequency remote controls the system without the need for line-of-site, so your classic dash remains untouched. The system is designed to provide today's technology including multiple audio sources and controls, clear FM stereo reception, and add-on amplifier capability for powerful sound.

JEGS 555-48351 Secretaudio Radio Specifications

JEGS 555-48351 Secretaudio Radio Features:

• 200 Watts of Peak Power, 50W x 4
• AUX RCA inputs handle most any external devices
• The built-in equalizer provides selectable settings for Jazz/Rock/Pop/Classic/Techno/News/Urban/Flat/User defined
• Separate Bass/Mid/Treble controls for custom sound when not using EQ settings
• RDS (Radio Data System) Tuner for clear station reception and song/artist/station display
• 30 Station Pre-Sets - 12 AM, 18 FM
• SiriusXM Satellite radio ready with direct port connection (separate Satelite tuner and subscription required)
• Parental control function for SiriusXM mode
• The Auto-store function can automatically store the strongest stations in the pre-sets
• The 4-Channel RCA pre-outs enable an amplified speaker system if desired
• Separate Sub-Woofer pre-out
• Built-in Bluetooth function for connecting any Bluetooth-enabled device - and an included remote microphone provides hands-free calling
• Fader and Balance control
• Manual or Auto Seek function
• Connects to the existing antenna with an industry-standard connector and includes a power lead for a power antenna
• USB Port for MP3/WMA /iPod/iPhone playback control with alpha-numeric display
• USB Port can also be used to charge mobile phones
• LCD Display with adjustable contrast and alphanumeric text for artist/song titles
• Wires directly into the existing speaker system bypassing the factory radio

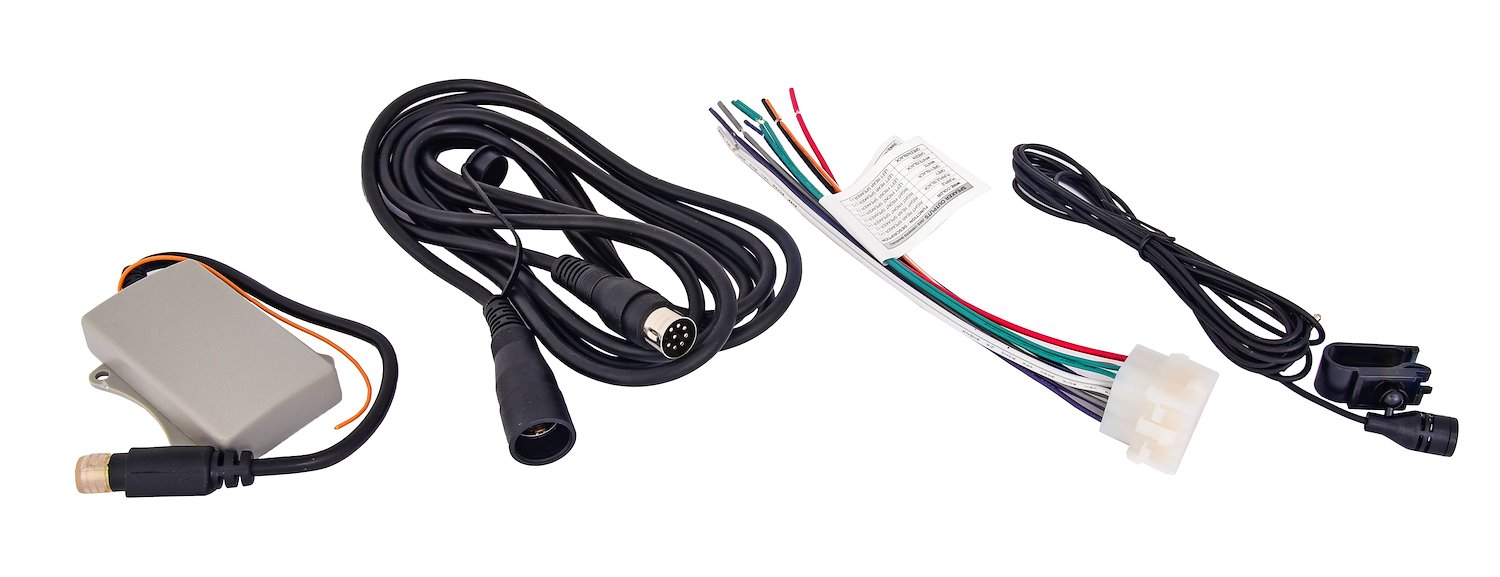

• A wiring harness, detailed wiring diagram, and directions are included for installation

JEGS 555-48351 Secretaudio Radio Notes:

• This system requires a minimum of 2 speakers - right and left channels
• RCA cables and speaker wire not included
• Additional wiring is required. See the wiring diagram below for specific wire sizes and colors.

  JEGS 555-48351 Wiring Diagram
