![Street & Strip II Oil Pan for 1955-1979 Small Block Chevy w/2-Piece Rear Main Seal [Chrome]](https://www.jegs.com/images/mini_750/500/555/555-502111.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-502111

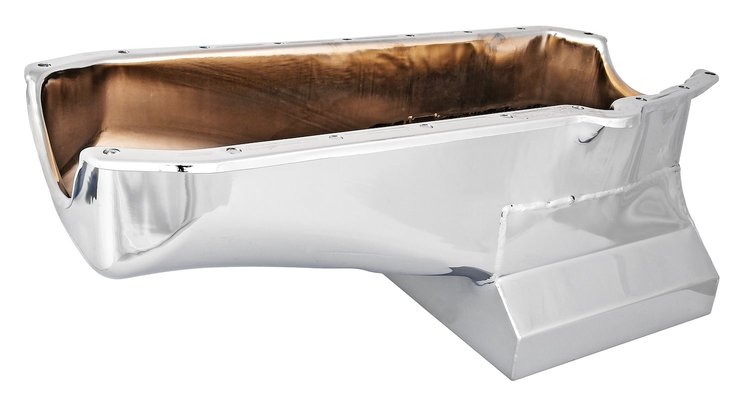

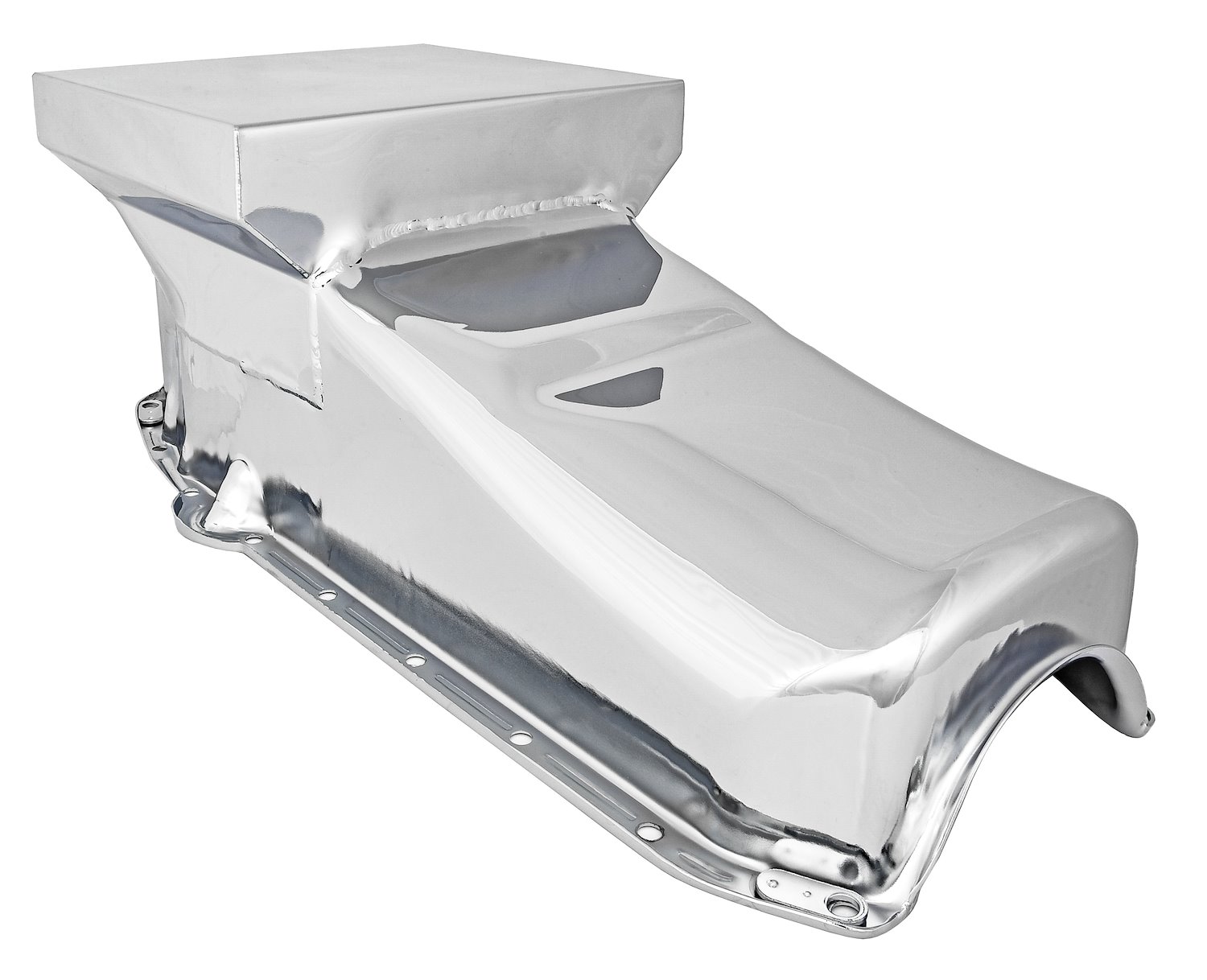

Street & Strip II Oil Pan for 1955-1979 Small Block Chevy w/2-Piece Rear Main Seal [Chrome]
$16799$184.99You Save$17.00
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeSmall Block Chevy
Street & Strip II Oil Pan1955-1979 Small Block Chevy (2-Piece Rear Main) Fits Most Chassis Except 1962-1967 Chevy II Left-Hand Dipstick 7 Quarts Plus Filter Steel Chrome Finish Sold Individually
JEGS 555-502111 Street & Strip II Oil Pan Features:
- Fits 1955-1979 Small Block Chevy with 2-piece rear main seal engines such as 283, 305, 307, 327, 350, 383 (stroker), 400, and others based on the popular platform
- Fits most chassis except 1962-67 Chevy II
- Ideal for street or strip applications with a low-profile design for more ground clearance
- Oil control baffles reduce windage for HP gains
- Steel with a Chrome-plated finish
- Oil capacity: 7 quarts plus filter
- Specifications: left hand dipstick
JEGS 555-502111 Small Block Chevy Oil Pan Notes:
- Does not fit 1962-1967 Chevrolet Chevy II
- Does not fit Chevelle's with steering behind the crossmember
- Does not fit Chevy Monza/Vega
Part TypeOil Pan
BrandJEGS
Package Height9.2
Package Width10.0
Package Length23.9
Weight10.43 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Dipstick ProvisionYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishChrome plated
Drain Plug IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.75 in (95.25 mm)
Gaskets IncludedNo
Oil Pan Depth8.5 in (215.9 mm)
Sump LocationRear
Engine ManufacturerChevrolet
Crank Scraper IncludedNo
Windage Tray IncludedNo
Oil Pan StyleStreet/Strip
Dipstick LocationDriver side
Part FitmentSemi Universal
Stroker ClearancedNo
Package Qty1
Package TypeEA
