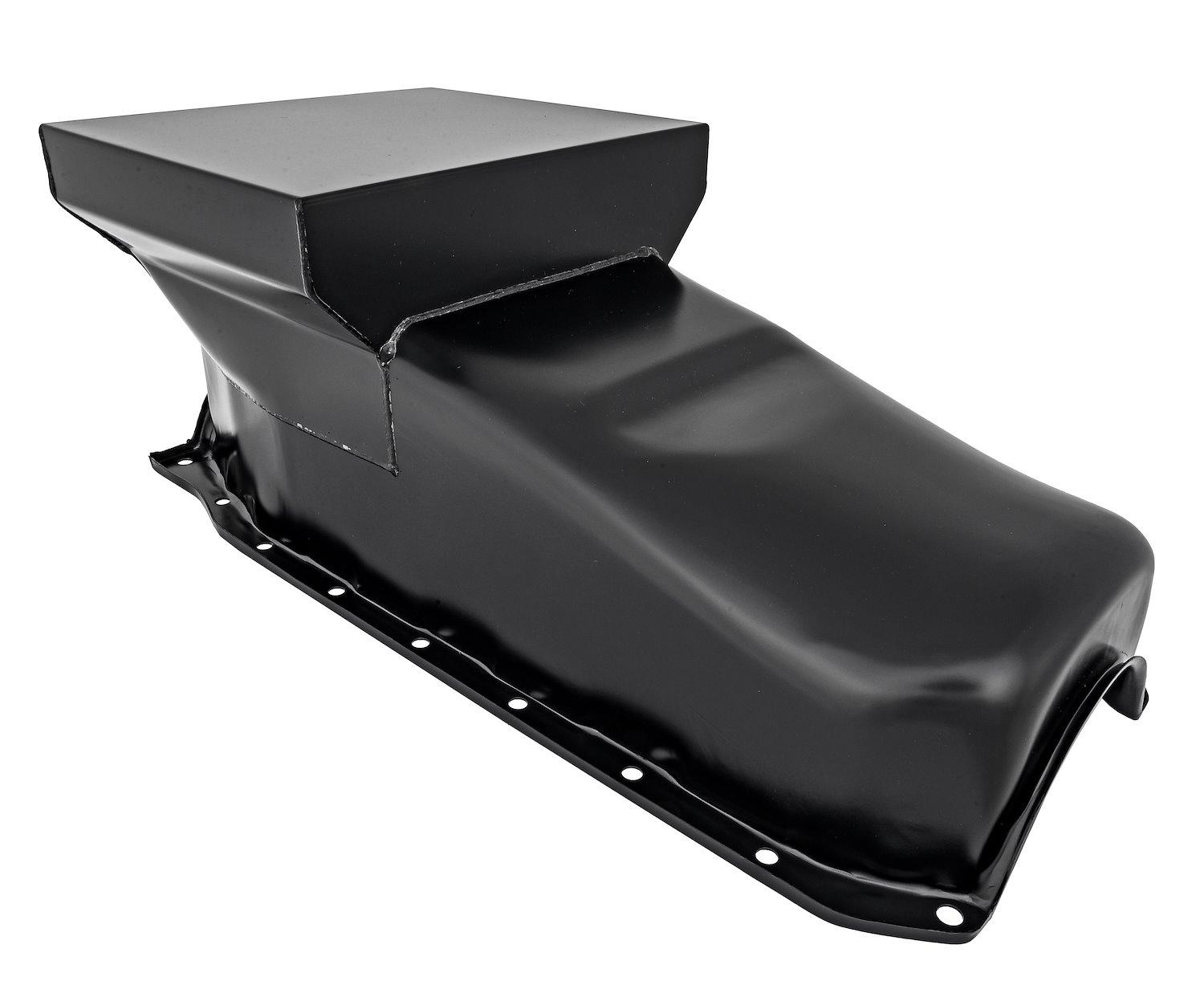

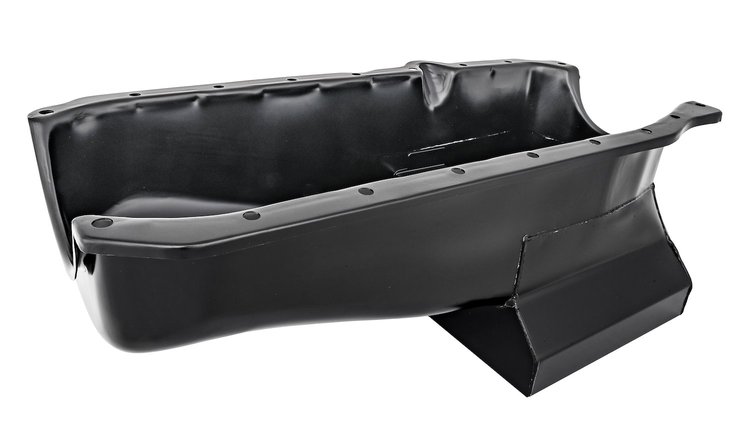

Street & Strip II Oil Pan for 1986-2002 Small Block Chevy (1-Piece Rear Main, Black)
InfoVehicle Info Needed
JEGSPART NUMBER: 555-502114

Street & Strip II Oil Pan for 1986-2002 Small Block Chevy (1-Piece Rear Main, Black)

$14299
7 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street & Strip II Oil Pan
  • 1986-2002 Small Block Chevy (1-Piece Rear Main)
  • Fits Most Chassis Except 1962-1967 Chevy II
  • Right-Hand Dipstick
  • 7 Quarts Plus Filter
  • Black Finish

    JEGS 555-502114 Street & Strip II Oil Pan Features:

    • Zinc-plated steel
    • Ideal for street or strip applications
    • Low-profile design for more ground clearance
    • Oil control baffles reduce windage for HP gains
    • 7-quart capacity plus filter

      • Low-Profile Oil Pans That Increase Horsepower

      JEGS Street & Strip II Oil Pans have a low profile that provides ground clearance and sufficient oil capacity for most high-performance engines. Oil control baffles help with windage reduction to improve horsepower.

    Part TypeOil Pan
    Product LineJEGS Street & Strip II Oil Pans
    BrandJEGS
    Package Height9.0
    Package Width12.6
    Package Length22.9
    Weight10.8 PG
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    Oil Pan TypeSteel
    QuantitySold individually
    Oil Pan FinishBlack painted
    Engine Make/SizeSmall Block Chevy
    Maximum Stroke With Oe Rod3.75 in (95.25 mm)
    Gaskets IncludedNo
    Oil Pan Depth8.25 in (209.6 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Oil Pan StyleStreet/Strip
    Dipstick LocationPassenger side
    Kicked OutYes
    Stroker ClearancedNo
    Package Qty1
    Package TypeEA
