JEGS 555-50267 Front Sump GM LS Oil Pan Dimensions

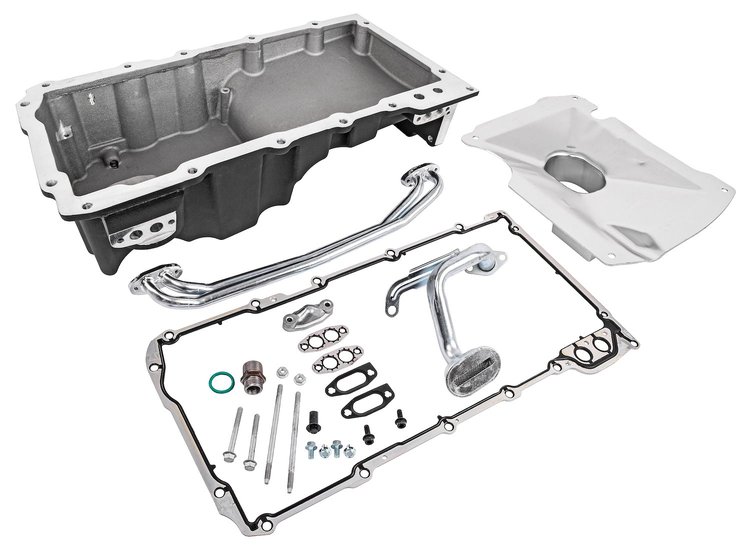

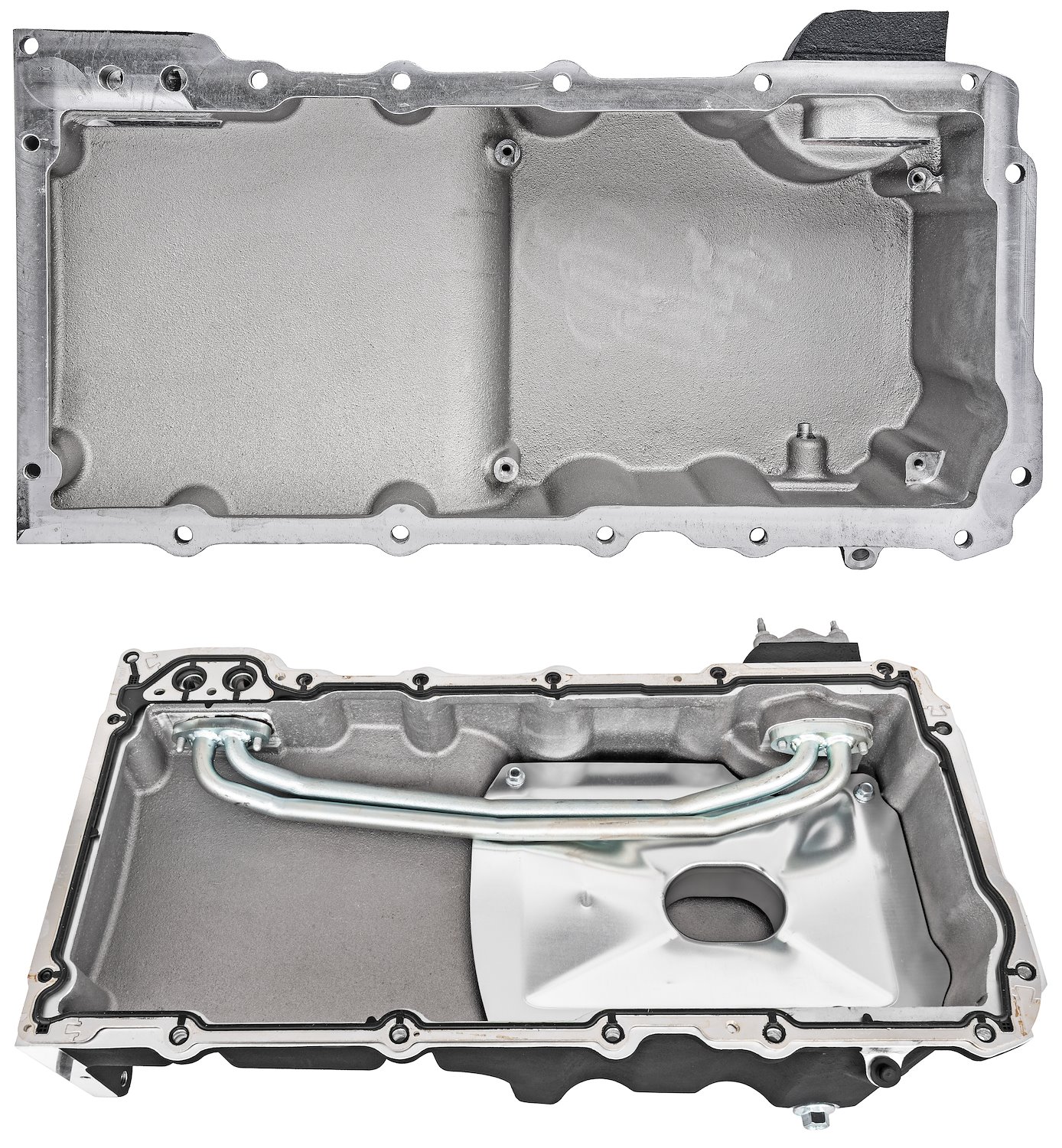

JEGS 50267 Low Profile Retrofit GM LS Front Sump Oil Pan is designed to allow increased clearance to the ground and chassis. This pan is a replacement if a standard oil pan will not fit.

JEGS 555-50267 Features:

• Sump Depth: 5.625 in.
• Maximum Stroke: 4.250 in.
• Drain Plug Thread Size: M12-1.75
• Oil Filter Fitting: M20-1.5 to M22-1.5
• (2) 3/8 in. NPT Plugs
• (1) Rubber Dipstick Hole Plug
• Requires AC Delco PF48 Oil Filter or Equivalent. We recommend JEGS oil filter 555-JG113

JEGS 555-50267 Mounting Hardware Included:

• Oil Pan:
  • (13) M8-1.25 x 30 mm (1.181 in.) Hex Head Bolts
  • (2) M6-1 x 135 mm (5.315 in.) Hex HeadBolts
• Sump Baffle:
  • (4) 1/4 in.-20 x 0.500 in. UHL Hex Head Bolts
• Oil Crossover Tube:
  • (2) M6-1 x 57 mm (2.250 in.) UHL Head Head Bolts
  • (2) M6-1 Non-Serrated Flange Nuts
  • (2) M6-1 x 115 mm (4.530 in.) L Studs
  • (2) Gaskets
• Pickup Tube:
  • (2) M6-1 x 16 mm (0.630 in.) UHL Allen Head Bolts
  • (1) O-Ring
• Oil Bypass Cover:
  • (2) M6-1 x 30 mm (1.181 in.) UHL Allen Head Bolts
  • (2) Gaskets
• Oil Cooler Block Off Hardware:
  • (2) 3/8 in. NPT Port Plugs

JEGS 555-50267 Notes:

• A standard LS Oil Pan dipstick will not work with this pan.
• Engine position may need to be adjusted for proper clearance, depending on the application.
• Does not fit LS7 or LS9 dry sump engines

Engine Fitment:

• 4.8L / 293 ci
• 5.3L / 325 ci
• 5.7L / 346 ci
• 6.0L / 364 ci
• 6.2L / 376 ci
