Intake Manifold Install Kit for Small Block Chevy
InfoVehicle Info Needed
JEGSPART NUMBER: 555-50530

Intake Manifold Install Kit for Small Block Chevy

$5699$62.99You Save$6.00
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

High-Flow 160 degree Thermostat for Pre-LT1 GM, Ford, AMC

JEGS

High-Flow 160 degree Thermostat for Pre-LT1 GM, Ford, AMC

Part Number : 555-53220
$999$10.99
You Save$1.00
High-Flow 180 degree Thermostat for Pre-LT1 GM, Ford, AMC

JEGS

High-Flow 180 degree Thermostat for Pre-LT1 GM, Ford, AMC

Part Number : 555-53221
$668$6.99
You Save$0.31
High-Flow 195 degree Thermostat for Pre-LT1 GM, Ford, AMC

JEGS

High-Flow 195 degree Thermostat for Pre-LT1 GM, Ford, AMC

Part Number : 555-53222
$1204$12.99
You Save$0.95
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Intake Manifold Install Kit
  • 1955-1985 Small Block Chevy
  • Includes:
    • Intake Manifold Gasket Set
    • Water Neck
    • Heater Hose Fitting
    • Pipe Plugs
    • Distributor Hold Down
    • Return Spring Bracket
    • Hardware

    • Contains everything you need to compliment your intake manifold installation
    • Fits 1955-1985 small block chevy engines including 283, 305, 307, 327, 350, 383 (stroker), 400, and others based on the popular platform
    • Made from high quality components and assembly
    • Includes 2 intake gaskets & 2 end seals, 12 intake bolts, distributor gasket, chrome distributor hold down with bolt , 2 of each 1/8 “ npt, 1/4 “ npt, 3/8 “ npt, & 1/2 “ npt pipe plugs, chrome thermostat housing with o-ring seal & 2 bolts, heater hose fitting, chrome throttle spring bracket, carburetor stud kit with 4 studs, 4 nuts, and 4 flat washers
    • Note: the intake gaskets in this kit do not have the heat riser port provision. these are recommended for intakes that do not have a heat riser crossover
    • Note: The Intake gaskets in this kit do not have the heat riser port provision. These are recommended for Intakes that do not have a heat riser crossover.

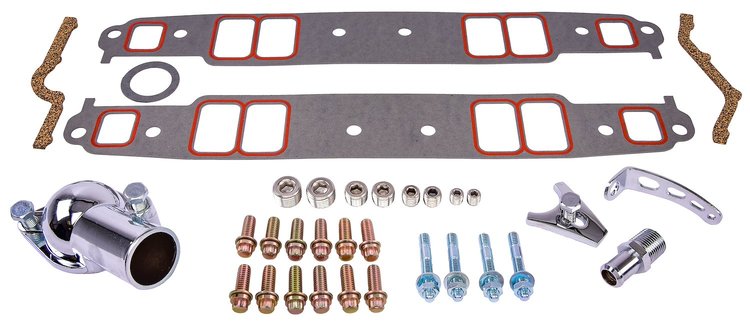

      Intake Manifold Install Kit Includes:

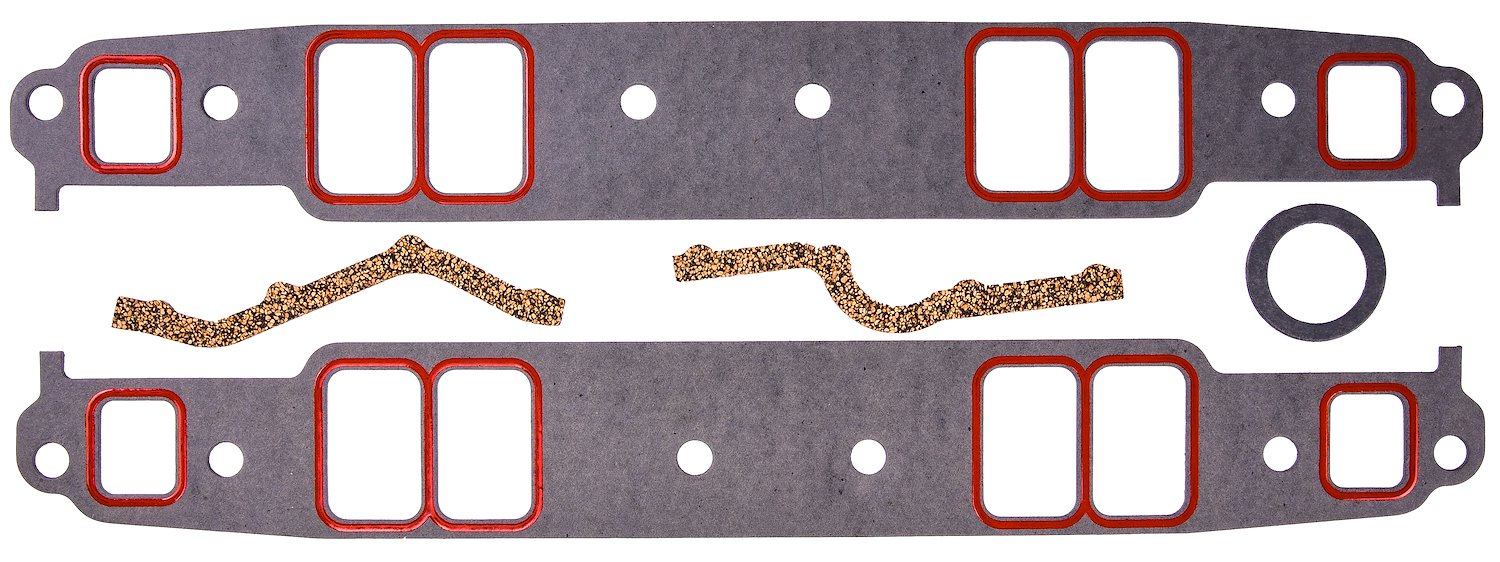

      • (2) Intake Manifold Gaskets
      • (2) Intake Manifold End Seals
      • (12) Intake Manifold Bolts: 3/8 in.-16 x 1 in. L with 12-Point 7/16 head
      • (1) Distributor Gasket
      • (1) Chrome Distributor Hold Down with 3/8 in.-16 x 1 in. L Bolt with 9/16 in. Hex Head
      • (2) 1/8 in. NPT Pipe Plugs
      • (2) 1/4 in. NPT Pipe Plugs
      • (2) 3/8 in. NPT Pipe Plugs
      • (2) 1/2 in. NPT Pipe Plugs
      • (1) Chrome Thermostat Housing with O-ring Seal and 2 Attaching Bolts
      • (1) Heater Hose Fitting: 1/2 in. NPT x 1.750 L x 5/8 in. I.D.
      • (1) Chrome Throttle Spring Bracket
      • (1) Carburetor Stud Kit:
        • (4) Studs: 5/16 in.-18 Bottom Thread x 5/16 in.-24 Top Thread x 2 in. Long
        • (4) 5/16 in.-24 Nuts
        • (4) 5/16 in. Flat Washers
    • JEGS "Ultimate" Small Block Chevy Intake Manifold Installation Kit includes many of the items needed for 1955-1985 (non-centerbolt head) installations. Includes 12-point intake bolts and washers, angled water neck, heater hose fitting, 8 pc. pipe plug assortment., distributor hold down, return spring bracket. Also includes 1-1/2" carb studs & nuts and small block Chevy intake manifold gaskets. Carb to intake gasket sold separately.

    Part TypeIntake Manifold Gasket
    Product LineJEGS Ultimate Small Block Chevy Intake Manifold Installation Kit
    BrandJEGS
    Package Height6.7
    Package Width8.6
    Package Length25.1
    Weight3.6 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
