![Aluminum Radiator & Fan Combo for Select 1965-1966 Mopar A Bodies With Big Block Engines [16 in. Fan]](https://www.jegs.com/images/mini_750/500/555/555-511407.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-511407
Aluminum Radiator & Fan Combo for Select 1965-1966 Mopar A Bodies With Big Block Engines [16 in. Fan]
$46499$511.99You Save$47.00
Ships on 09/30/2026
Lowest Price GuaranteeMopar A-Body
Reproduction Aluminum Radiator & Fan Combo1965-66 Dodge Dart, Duster 1965-66 Plymouth Baracuda, Valiant Big Block Single 16 in. Fan Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Semi-Polished
JEGS 555-511407 Reproduction Aluminum Radiator & Fan Combo Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets

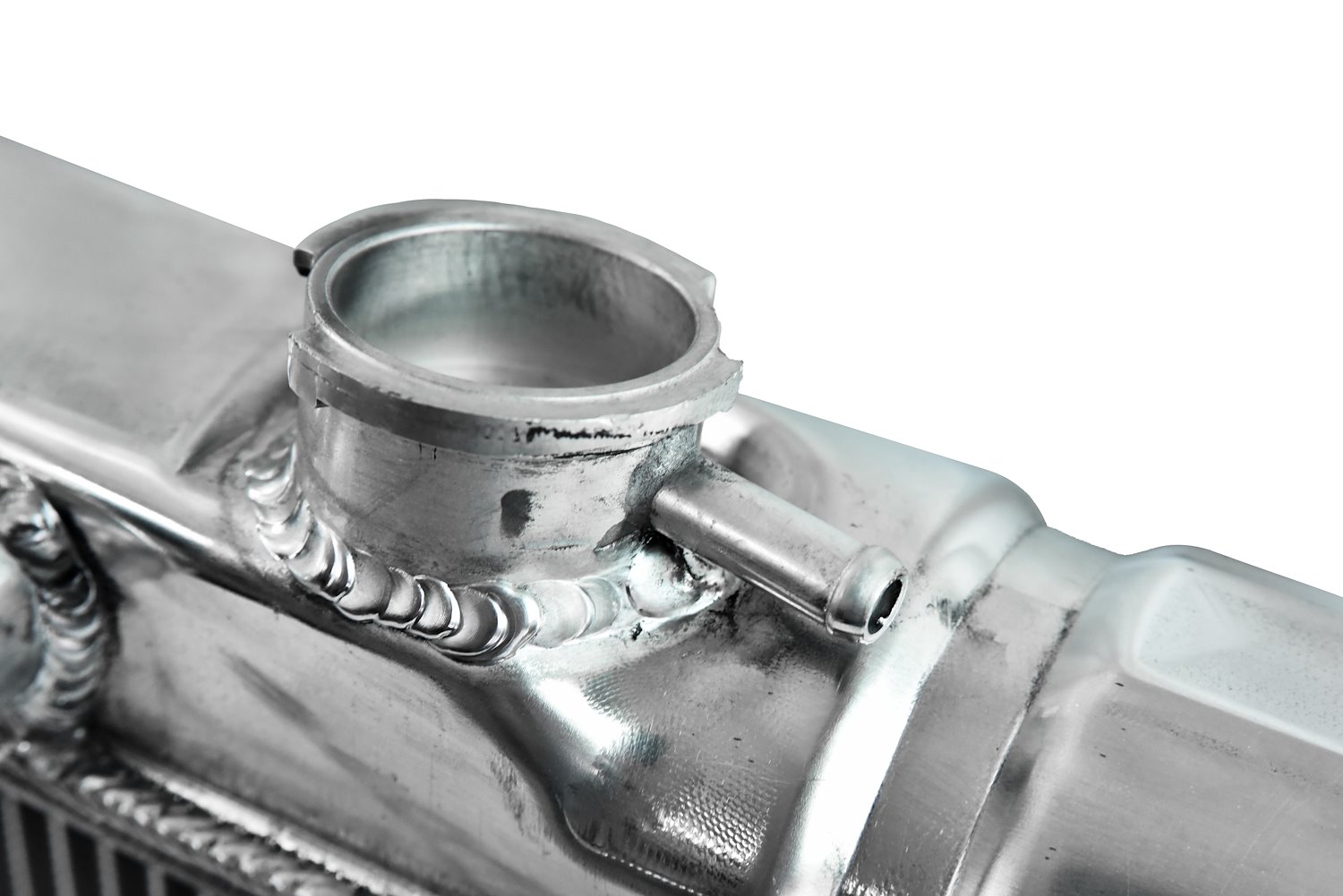

- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core: 17 in. Wide x 21 in. High x 2 3/4 in. Thick
- Overall Height: 23 in.
- Overall Width: 25 1/2 in.
- Inlet: 1 1/2 in. Diameter Center/Upper
- Outlet: 1 3/4 in. Diameter Left/Driver Side Lower
- Built-in Transmission Cooler
- Single 16 in. Fan
- Semi-Polished Finish That Can Be Easily Painted
JEGS 555-511407 Aluminum Radiator & Fan Combo Notes:
- Will Work With Automatic or Manual Transmissions
Part TypeRadiator
BrandJEGS
Package Height7.0
Package Width25.0
Package Length27.0
Weight30.0 PG
Part CategoryReplacement Parts
Overall Thickness4 in (101.6 mm)
Overall Height23 in (584.2 mm)
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper center
2 Row Core Thickness2.75 in (69.85 mm)
Core Height17 in (431.8 mm)
Core Thickness2.75 in (69.85 mm)
Fan Diameter16
Core Width21 in (533.4 mm)
Row Quantity2
Overall Width25.5 in (647.7 mm)
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleDownflow
Package Qty1
Package TypeEA
