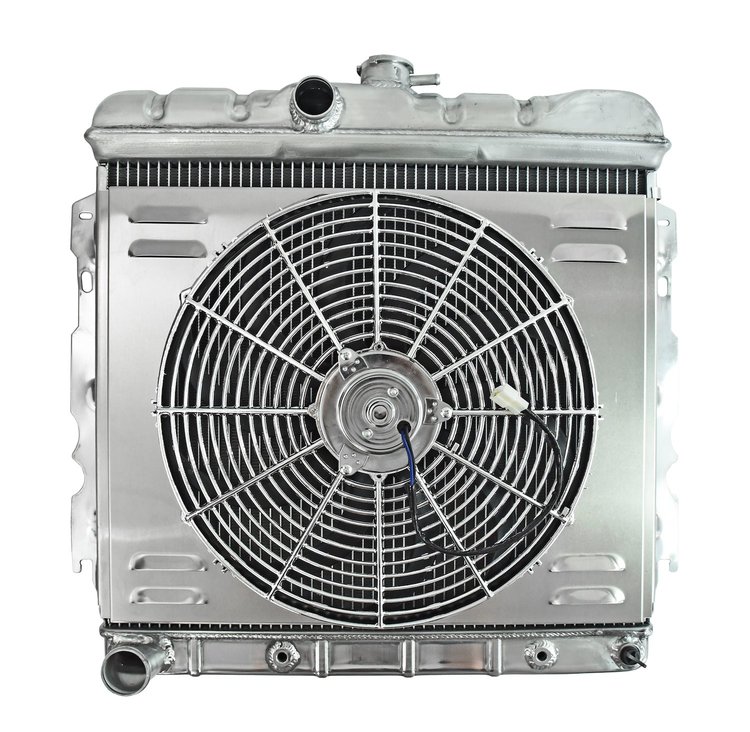

Aluminum Radiator & Fan Combo for Select 1966-1969 Mopar B-Bodies With Big Block Engines [16 in. Fan]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511413

Aluminum Radiator & Fan Combo for Select 1966-1969 Mopar B-Bodies With Big Block Engines [16 in. Fan]

$43999$483.99You Save$44.00
ShippingShips on 02/02/2027
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00

Mopar B-Body
Aluminum Radiator & Fan Combo
  • 1966-1969 Mopar B-Bodies
  • With 440 & 383 Engine
  • See Fitment Tab For All Models
  • 16 in. Single Fan
  • Direct Fitment
  • Improved Cooling Efficiency
  • 2-Row 1 1/8 in. High Flow Tubes
  • Aluminum
  • Semi-Polished

    JEGS 555-511413 Reproduction Aluminum Radiator & Fan Combo Features:

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"

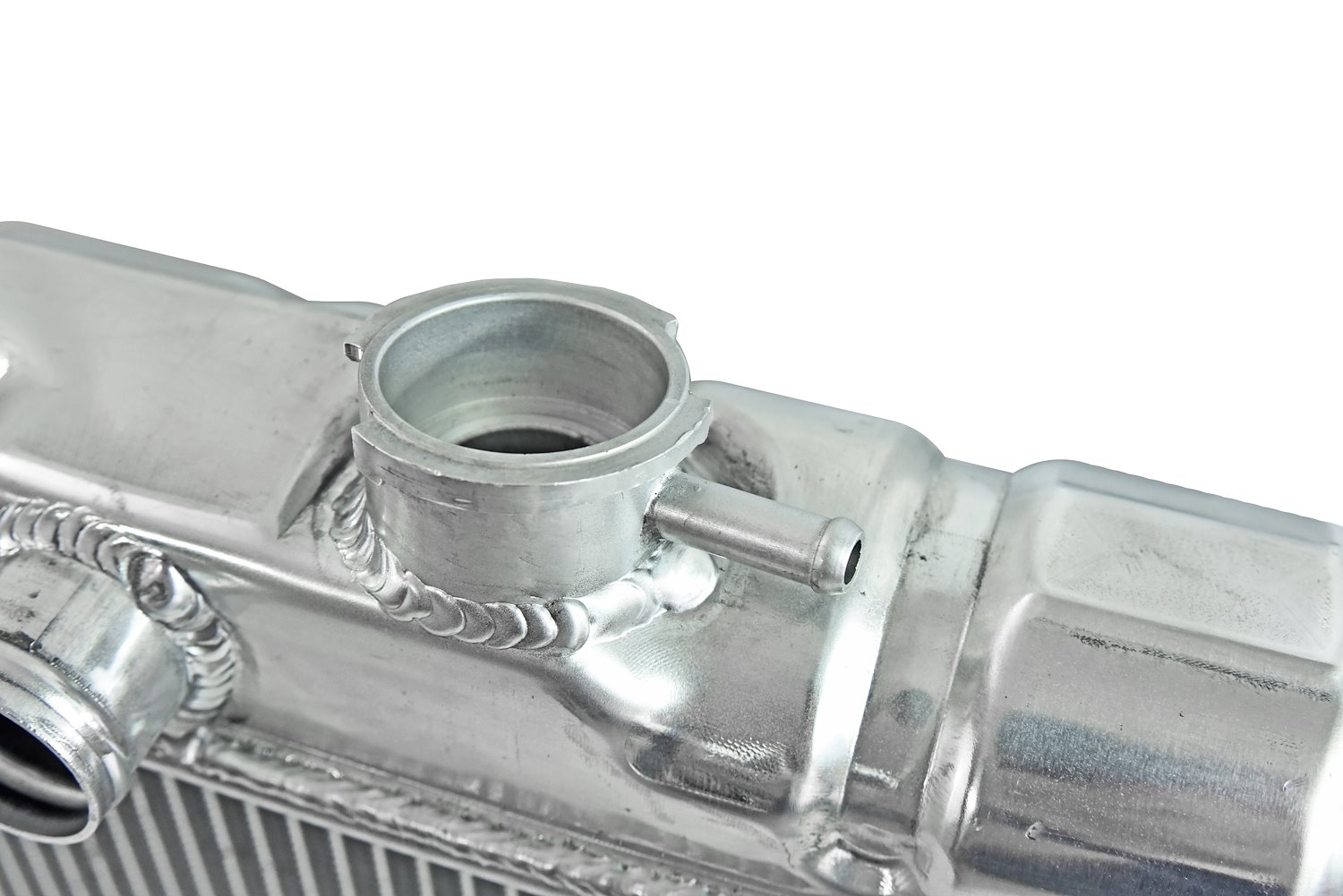

    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 21 in. Wide x 17 3/4 in. High x 2 3/4 in. Thick
    • Overall Height: 23 3/4 in.
    • Overall Width: 25 1/2 in.
    • Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
    • Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • 16 in. Single Fan
    • Semi-Polished Finish That Can Be Easily Painted

    JEGS 555-511413 Reproduction Aluminum Radiator & Fan Combo Notes:

    • Will Work With Automatic or Manual Transmissions

    • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height7.0
    Package Width25.0
    Package Length27.0
    Weight30.0 PG
    Part CategoryReplacement Parts
    Overall Thickness4 in (101.6 mm)
    Overall Height23.75 in (603.3 mm)
    Inlet Size1.500 in.
    Fan QuantitySingle
    Inlet LocationUpper driver side
    2 Row Core Thickness2.75 in (69.85 mm)
    Core Height17.75 in (450.85 mm)
    Core Thickness2.75 in (69.85 mm)
    Fan Diameter16
    Core Width21 in (533.4 mm)
    Fan IncludedYes
    Transmission CoolerYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
