Aluminum Radiator & Fan Combo for 1942-1948 Chevrolet Passenger Car w/Chevy V8 Engine Conversion
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511419

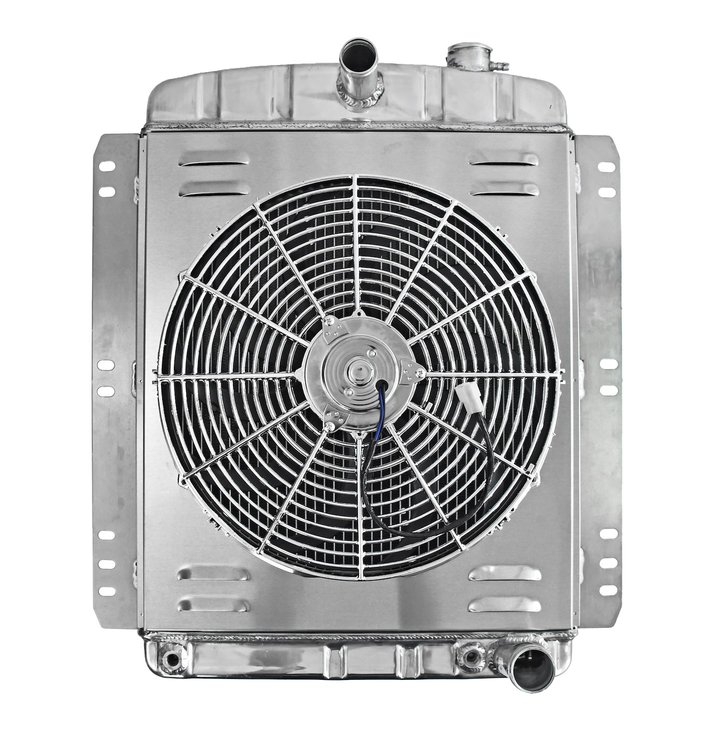

Aluminum Radiator & Fan Combo for 1942-1948 Chevrolet Passenger Car w/Chevy V8 Engine Conversion

$42999$472.99You Save$43.00
ShippingShips on 02/15/2027
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00

GM Cars w/Chevy V8 Engine
Aluminum Radiator & Fan Combo
  • 1942-1948 Chevrolet Passenger Cars w/Chevy V8 Engine Conversion
  • w/16 in. Single Electric Fan & Shroud
  • Direct Fitment
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum Construction
  • Semi-Polished Finish

    JEGS 555-511419 Aluminum Radiator & Fan Combo Features:

    • Designed to Fit 1942-1948 Chevrolet Passenger Cars with Chevy V8 Engine Conversion
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"

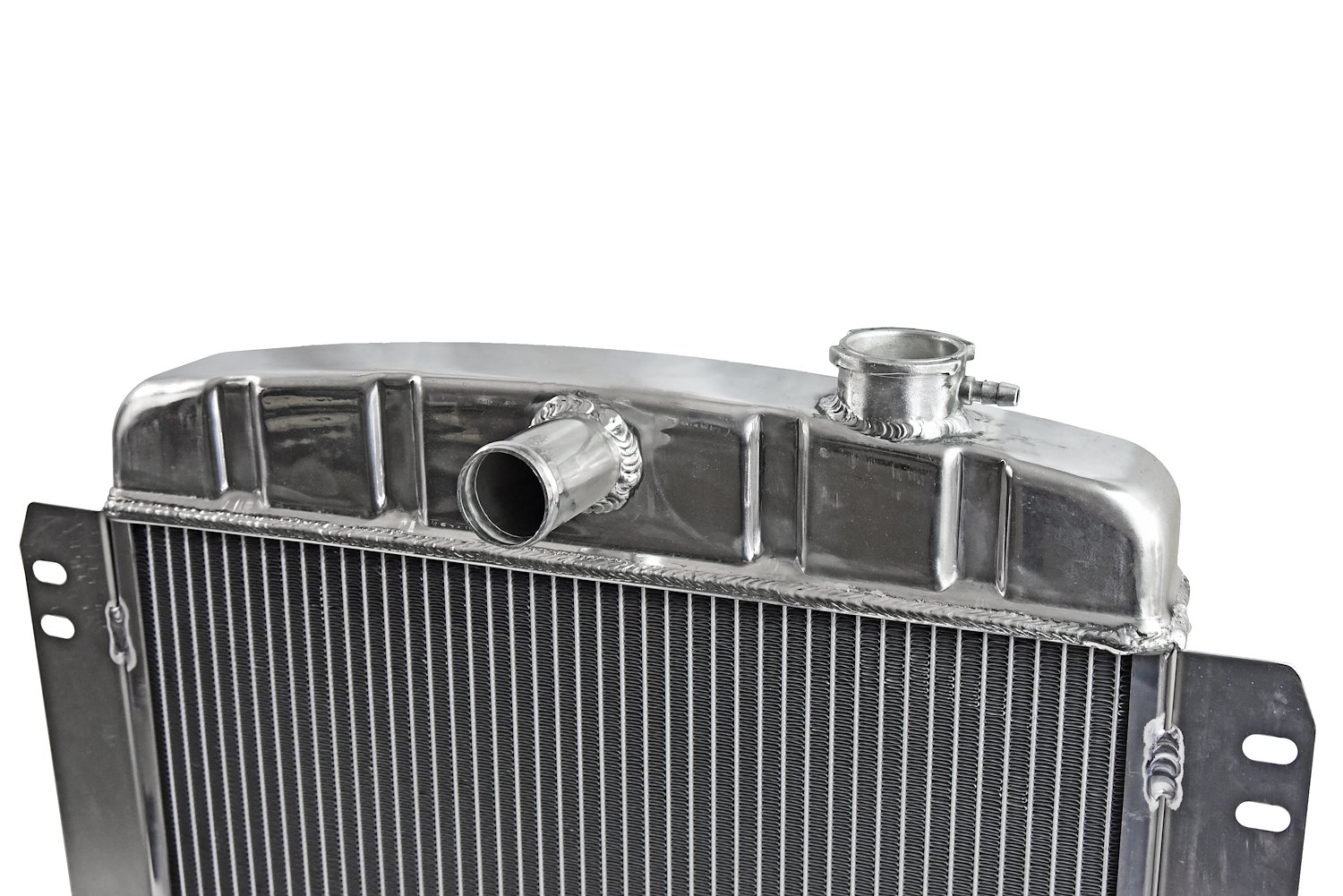

    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core Width: 18 1/4 in.
    • Core Height: 20 5/8 in.
    • Core Thickness: 2 1/2 in.
    • Overall Dimensions at Widest Point
      • Overall Width: 22 3/8 in.
      • Overall Height: 26 3/4 in.
      • Overall Thickness: 3 in.
    • inlet size: 1 1/2 in. Diameter
    • Inlet Location: Center Upper
    • Outlet Size: 1 3/4 in. Diameter
    • Outlet Location: Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference
    • Includes 2600 CFM 16 in. Diameter Single Blade Electric Fan with Aluminum Fan Shroud
    • Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
    • Fan Shroud Dimensions:
      • Width: 18 1/2 in.
      • Height: 20 3/8 in.
      • Thickness: 3 1/2 in.

    JEGS 555-511419 Aluminum Radiator & Fan Combo Notes:

    • Will Work with Automatic or Manual Transmission Applications
  • Efficient Cooling for Your Engine Conversion

    JEGS Aluminum Conversion Radiators for Cars, Jeeps, and Trucks are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your ride with a clean look.

    JEGS also offers other Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods, and Ready-Fit Radiators for Cars and Trucks. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Aluminum Conversion Radiators for Cars, Jeeps and Trucks
    BrandJEGS
    Package Height8.0
    Package Width25.0
    Package Length28.0
    Weight30.0 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height26.75 in (679.5 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Shroud MaterialAluminum
    Inlet LocationCenter upper
    Core Width18.25 in (463.55 mm)
    Row Quantity2
    Overall Width22.375 in (568.3 mm)
    Tube Size1.125 in (28.575 mm)
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Maximum Fan Cfm2,600 cfm
    Shroud ColorSemi-Polished
    Radiator StyleDownflow
    Outlet Size1.75 in (44.5 mm)
    Fan QuantitySingle
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    Trans CoolerYES
    QuantitySold as a Kit
    Mounting Hardware IncludedNo
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height20.625 in (523.875 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Fan Diameter16 in (406.4 mm)
    Mounting Brackets IncludedYes
    Outlet LocationLower passenger side
    Radiator TypeEngine Conversion
    Fan IncludedYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
