![Reproduction Aluminum Radiator & Fan Combo for 1960-1965 Cadillac Models [16 in. Fan]](https://www.jegs.com/images/mini_750/500/555/555-511430.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-511430

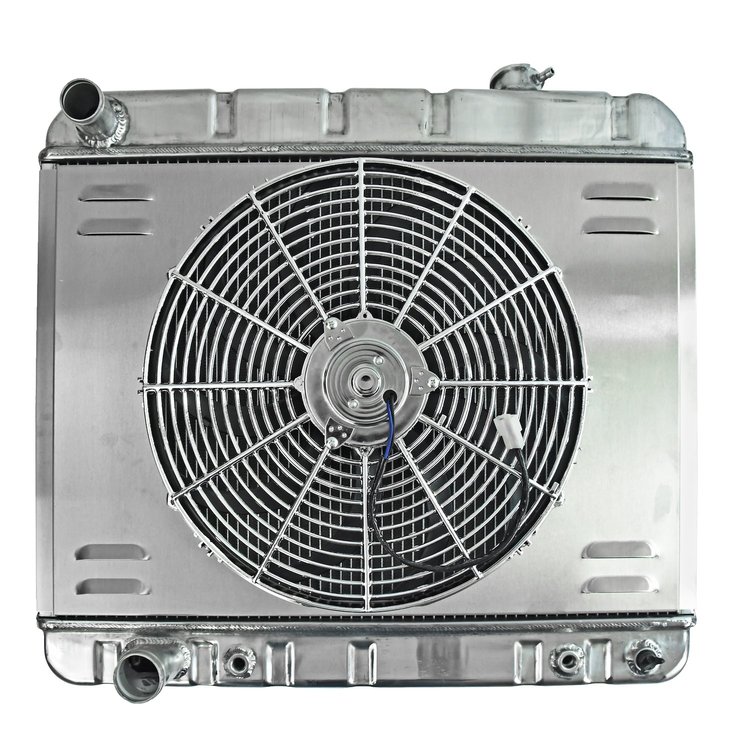

Reproduction Aluminum Radiator & Fan Combo for 1960-1965 Cadillac Models [16 in. Fan]
$42999$472.99You Save$43.00
Ships on 09/16/2026
Lowest Price GuaranteeCadillac
Reproduction Aluminum Radiator & Fan Combo1960-1965 Cadilliac Single 16 in. Fan Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 511430 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core Width: 25.00 in.
- Core Height: 17.00 in.
- Core Thickness: 2.5 in.
- Overall Width: 25.25 in.
- Overall Height: 23.25 in.
- Inlet size: 1.500 in.
- Inlet Location: Left/Driver Side Upper
- Outlet Size: 1.75 in.
- Outlet Location: Left/Driver Side Lower
- Single 16 in. Fan
- Semi-Polished Finish That Can Be Easily Painted
Part TypeRadiator
BrandJEGS
Package Height7.0
Package Width25.0
Package Length27.0
Weight30.0 PG
Part CategoryReplacement Parts
Overall Thickness3 in (76.2 mm)
Overall Height23.25 in (590.6 mm)
Inlet Size1.500 in.
Wiring IncludedNo
Radiator Cap IncludedNo
Shroud MaterialAluminum
Inlet LocationUpper driver side
Core Width25 in (635 mm)
Row Quantity2
Radiator FinishSemi-Polished
Transmission CoolerYes
Maximum Fan Cfm2,600 cfm
Shroud ColorNatural
Radiator StyleDownflow
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold as a set
Overall Length25.25 in (641.4 mm)
2 Row Core Thickness2.5 in (63.5 mm)
Core Height17 in (431.8 mm)
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/4-18 NPT
Fan Diameter16 in (406.4 mm)
Radiator TypePerformance Replacement
Fan IncludedYes
Part FitmentDirect Fit
Package Qty1
Package TypeEA
