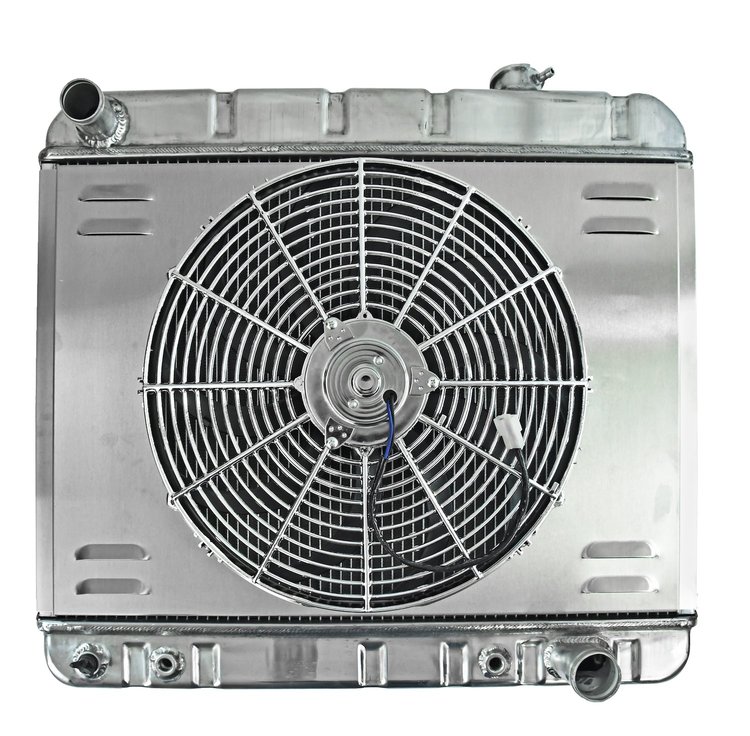

Reproduction Aluminum Radiator & Fan Combo for 1963-1966 Chevrolet & GMC Trucks [16 in. Fan]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511434

Reproduction Aluminum Radiator & Fan Combo for 1963-1966 Chevrolet & GMC Trucks [16 in. Fan]

$40999$450.99You Save$41.00
ShippingShips on 11/25/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00

Chevrolet & GMC Pickup
Aluminum Radiator & Fan Combo
  • 1963-1966 Chevrolet & GMC Trucks
  • Direct Fitment
  • Improved Cooling Efficiency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum Construction
  • Semi-Polished Finish
  • w/16 In. Diameter Single Electric Fan

    JEGS 511434 Reproduction Aluminum Radiator & Fan Combo Features:

    • Designed to Fit 1963-1966 Chevrolet & GMC Trucks
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"

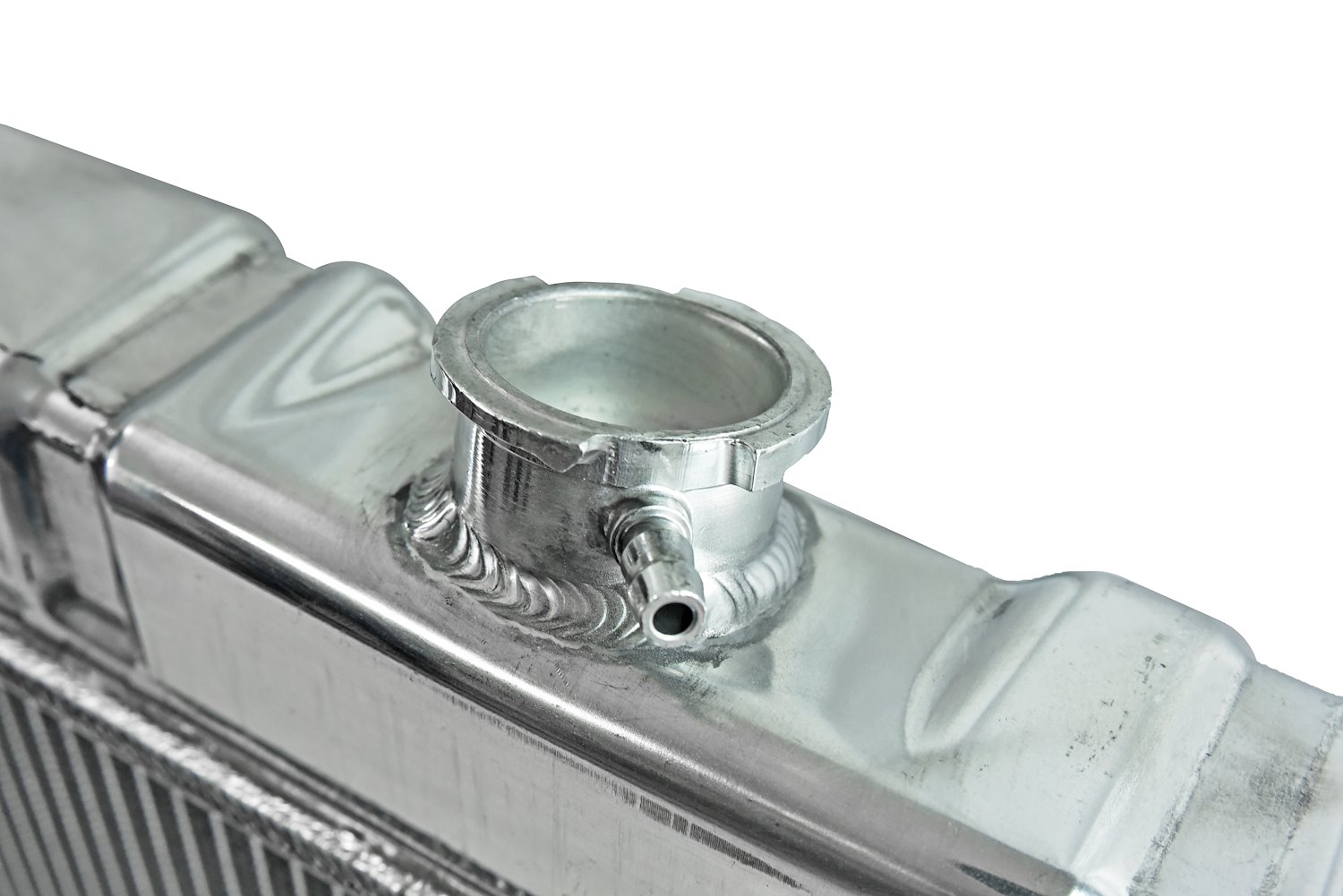

    • Original Style Stamped Tanks
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core Width: 25 in.
    • Core Height: 17 in.
    • Core Thickness: 2 1/2 in.
    • Overall Dimensions at Widest Point
      • Overall Width: 25 1/4 in.
      • Overall Height: 23 1/4 in.
      • Overall Thickness: 3 in.
    • inlet size: 1 1/2 in. Diameter
    • Inlet Location: Left/Driver Side Upper
    • Outlet Size: 1 3/4 in. Diameter
    • Outlet Location: Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference
    • Includes 2600 CFM 16 in. Diameter Single Blade Electric Fan with Aluminum Fan Shroud
    • Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
    • Fan Shroud Dimensions:
      • Width: 25 1/8 in.
      • Height: 16 1/2 in.
      • Thickness: 3 1/2 in.

    JEGS 555-511434 Reproduction Aluminum Radiator & Fan Combo Notes:

    • Will Work with Automatic or Manual Transmission Applications
  • Improved Cooling for Your Classic Truck

    JEGS Reproduction Aluminum Radiators for Classic Trucks are designed to replace your factory OE copper brass radiator and look like the original unit. These radiators provide an OE look with increased cooling efficiency and are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Trucks
    BrandJEGS
    Package Height8.0
    Package Width26.0
    Package Length30.0
    Weight30.0 PG
    Part CategoryReplacement Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height23.25 in (590.6 mm)
    Inlet Size1.500 in.
    Wiring IncludedNo
    Radiator Cap IncludedYes
    Shroud MaterialAluminum
    Inlet LocationUpper driver side
    Core Width25 in (635 mm)
    Row Quantity2
    Overall Width25.25 in (641.4 mm)
    Tube Size1.125 in (28.575 mm)
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Maximum Fan Cfm2,600 cfm
    Shroud ColorSemi-Polished
    Radiator StyleDownflow
    Outlet Size1.75 in (44.5 mm)
    Fan QuantitySingle
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold as a Kit
    Mounting Hardware IncludedNo
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height17 in (431.8 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Mounting Brackets IncludedNo
    Outlet LocationLower passenger side
    Fan IncludedYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
