Aluminum Radiator & Fan Combo for 1964-1965 Pontiac GTO, LeMans, & Tempest Without Air Conditioning [16 in. Fan]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511439

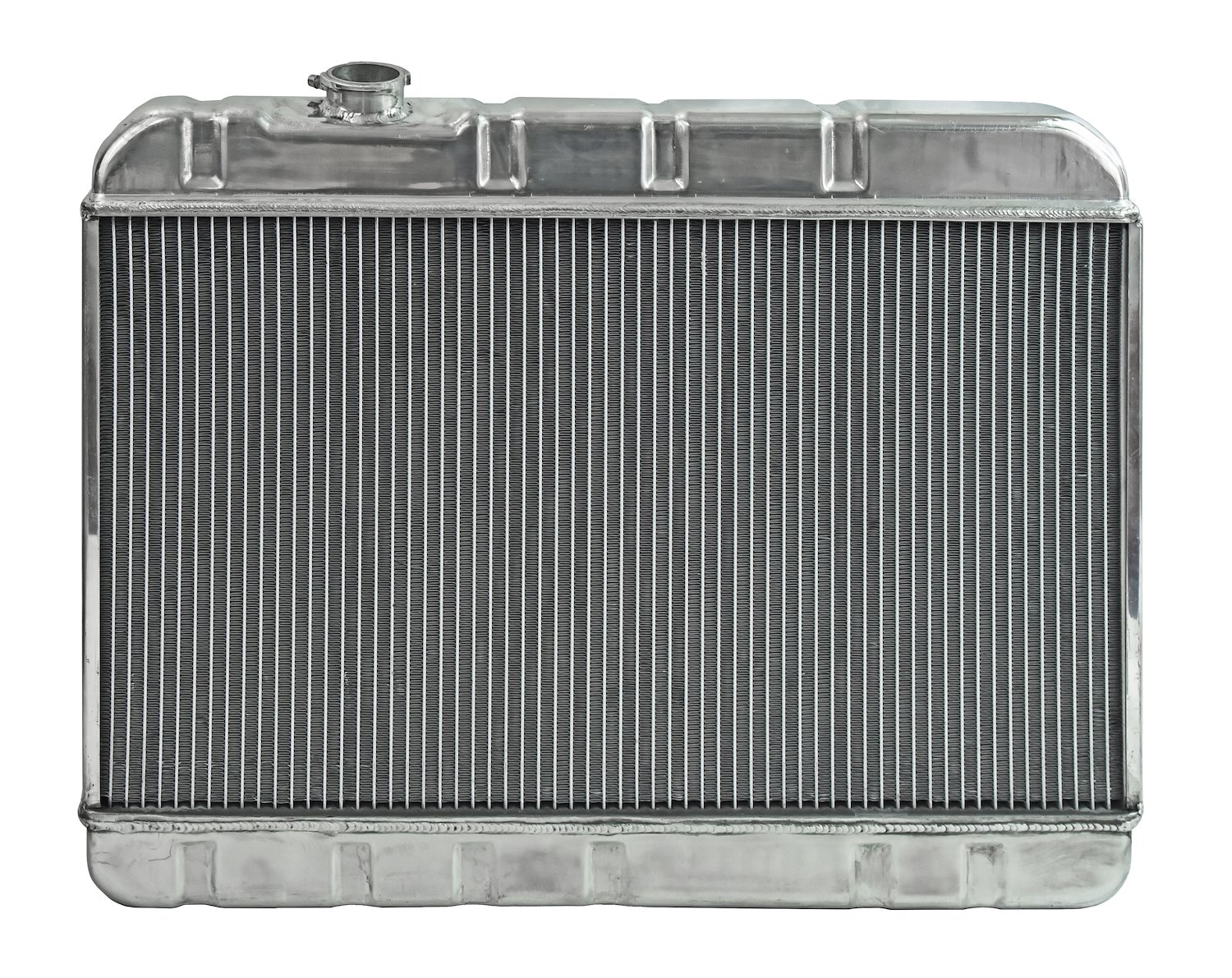

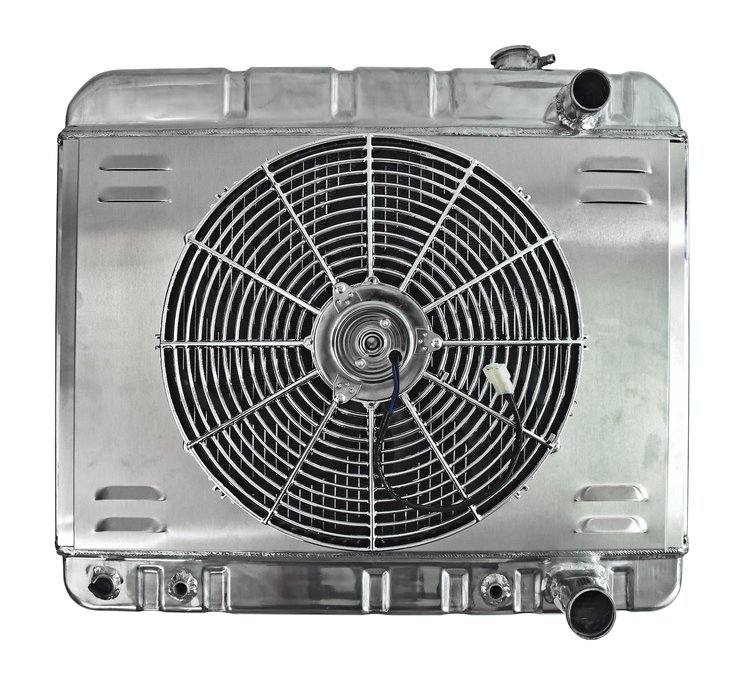

Aluminum Radiator & Fan Combo for 1964-1965 Pontiac GTO, LeMans, & Tempest Without Air Conditioning [16 in. Fan]

$42999$472.99You Save$43.00
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Pontiac
Aluminum Radiator & Fan Combo
  • 1964-1965 Pontiac GTO, LeMans, & Tempest
  • Single 16 in. Fan
  • Direct Fitment
  • Improved Cooling Efficency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum Construction
  • Semi-Polished Finish

    JEGS 511439 Reproduction Aluminum Radiator & Fan Combo Features:

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Downflow Design
    • Core Width: 24.75 in.
    • Core Height: 15.75 in.
    • Core Thickness: 2.5 in.
    • Overall Width: 25.50 in.
    • Overall Height: 22.50 in.
    • Inlet size: 1.500 in.
    • Inlet Location: Right/Passenger Side Upper
    • Outlet Size: 1.750 in.
    • Outlet Location: Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • Single 16 in. Fan
    • Semi-Polished Finish That Can Be Easily Painted
    • Part TypeRadiator
    BrandJEGS
    Package Height7.0
    Package Width24.0
    Package Length29.0
    Weight30.0 PG
    Part CategoryReplacement Parts
    Overall Height22.5 in (571.5 mm)
    Inlet Size1.500 in.
    Fan QuantitySingle
    Radiator Cap IncludedNo
    Radiator MaterialAluminum
    Inlet LocationUpper passenger side
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height15.75 in (400.05 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Fan Diameter16
    Core Width24.75 in (628.65 mm)
    Fan IncludedYes
    Transmission CoolerYes
    Part FitmentDirect Fit
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
