![Aluminum Radiator & Fan Combo for 1970-1981 Chevrolet Camaro & Pontiac Firebird [16 in. Fan]](https://www.jegs.com/images/mini_750/500/555/555-511446.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-511446

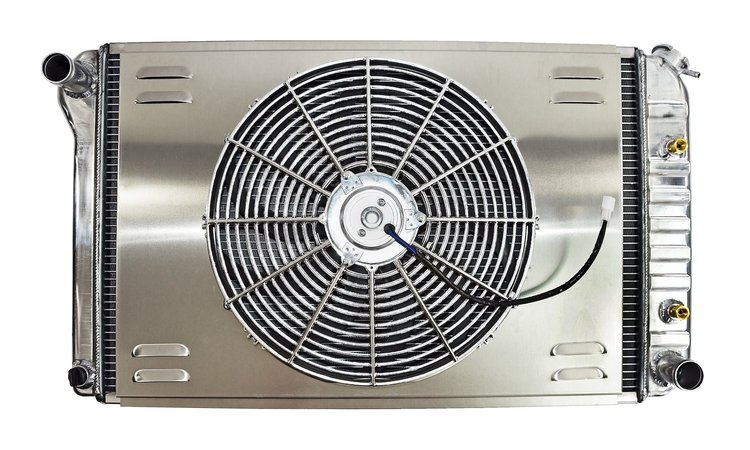

Aluminum Radiator & Fan Combo for 1970-1981 Chevrolet Camaro & Pontiac Firebird [16 in. Fan]
$42999$472.99You Save$43.00
Ships on 09/17/2026
Lowest Price GuaranteeChevrolet Camaro & Pontiac Firebird
Aluminum Radiator & Fan Combo1970-1981 Chevrolet Camaro & Pontiac Firebird 16 in. Single Fan Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 555-511446 Reproduction Aluminum Radiator & Fan Combo Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets

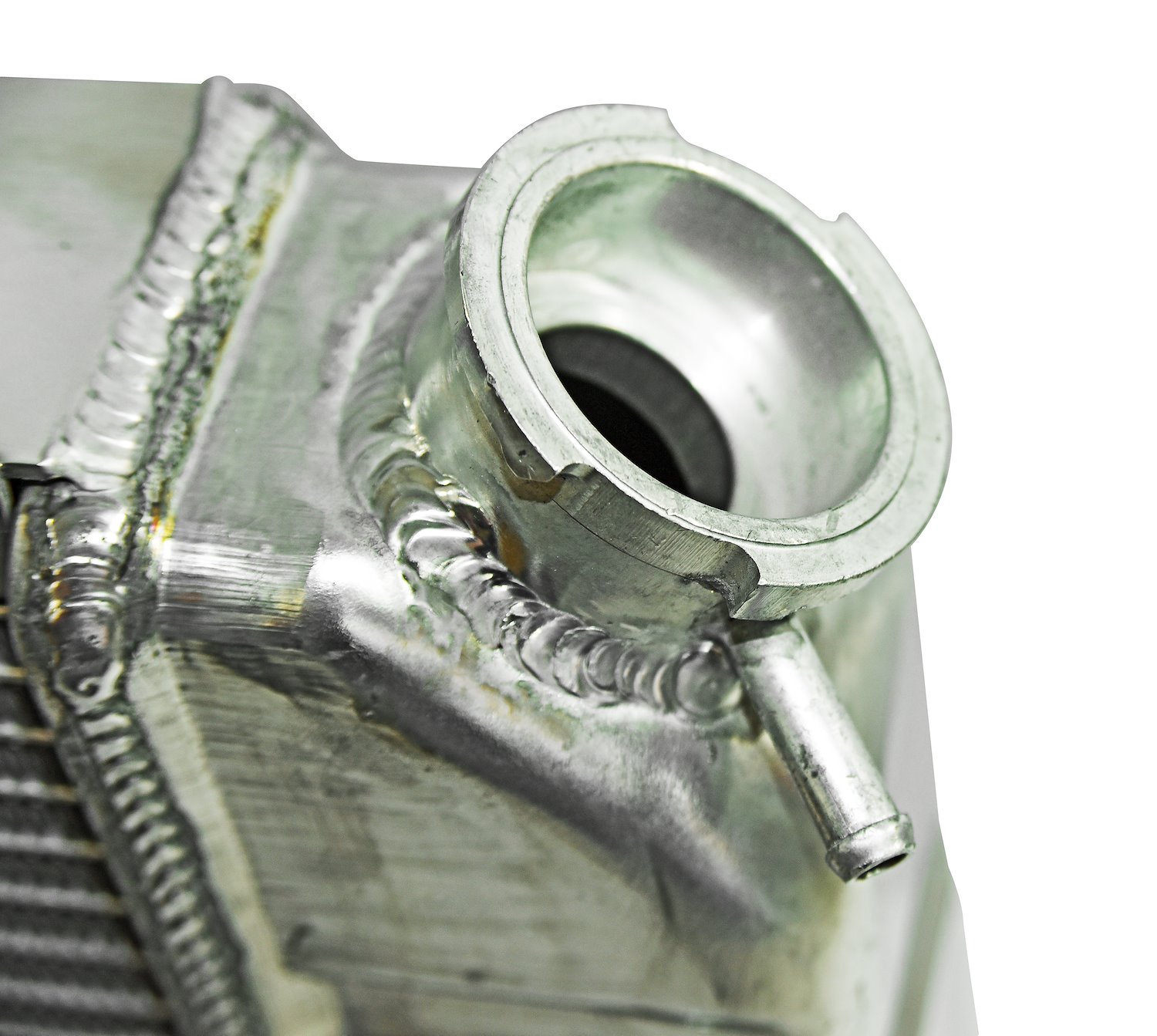

- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Crossflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core: 27 3/8 in. Wide x 17 1/2 in. High x 2 1/2 in. Thick
- Overall Height: 19 in.
- Overall Width: 33 1/2 in.
- Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
- Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
- Built-in Transmission Cooler
- 16 in. Single Fan
- Semi Polished Finish that can be easily painted
JEGS 555-511446 Aluminum Radiator & Fan Combo Notes:
- Will Work With Automatic or Manual Transmissions
Performance Cooling for Your Classic Car
JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.
JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
BrandJEGS
Package Height7.0
Package Width22.0
Package Length26.0
Weight32.0 PG
Part CategoryReplacement Parts
Overall Height19 in (482.6 mm)
Inlet Size1.500 in.
Fan QuantitySingle
Inlet LocationUpper driver side
2 Row Core Thickness2.5 in (63.5 mm)
Core Height17.5 in (444.5 mm)
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/2-20 FINE
Fan Diameter16
Core Width27.375 in (695.325 mm)
Overall Width33.5 in (850.9 mm)
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Package Qty1
Package TypeEA
