Aluminum Radiator & Fan Combo for Select 1970-1987 Chevrolet Models
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511453

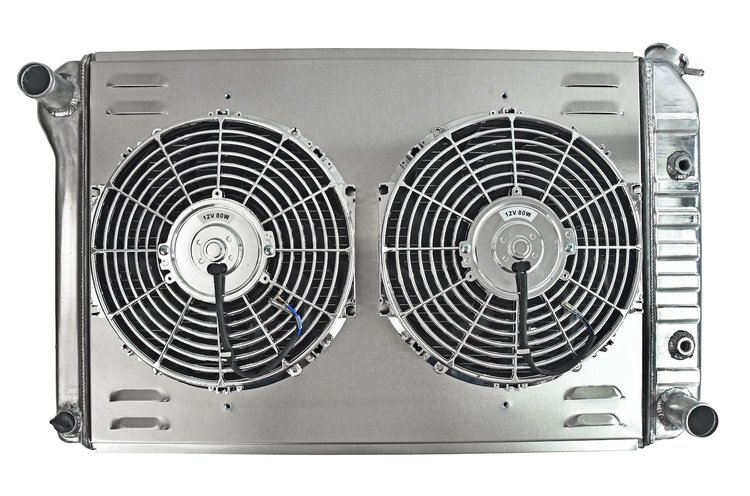

Aluminum Radiator & Fan Combo for Select 1970-1987 Chevrolet Models

$40999$450.99You Save$41.00
ShippingShips on 11/27/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off]

JEGS

Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off]

Part Number : 555-10570
$6599$71.29
You Save$5.30

Chevrolet
Aluminum Radiator & Fan Combo
  • 1970-1981 Chevy Camaro
  • 1978-1987 Chevy Chevelle, El-Camino, Monte Carlo V8
  • 12 in. Dual Fans
  • Direct Fitment
  • Improved Cooling Efficency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum
  • Semi-Polished

    JEGS 555-511453 Aluminum Radiator & Fan Combo Features:

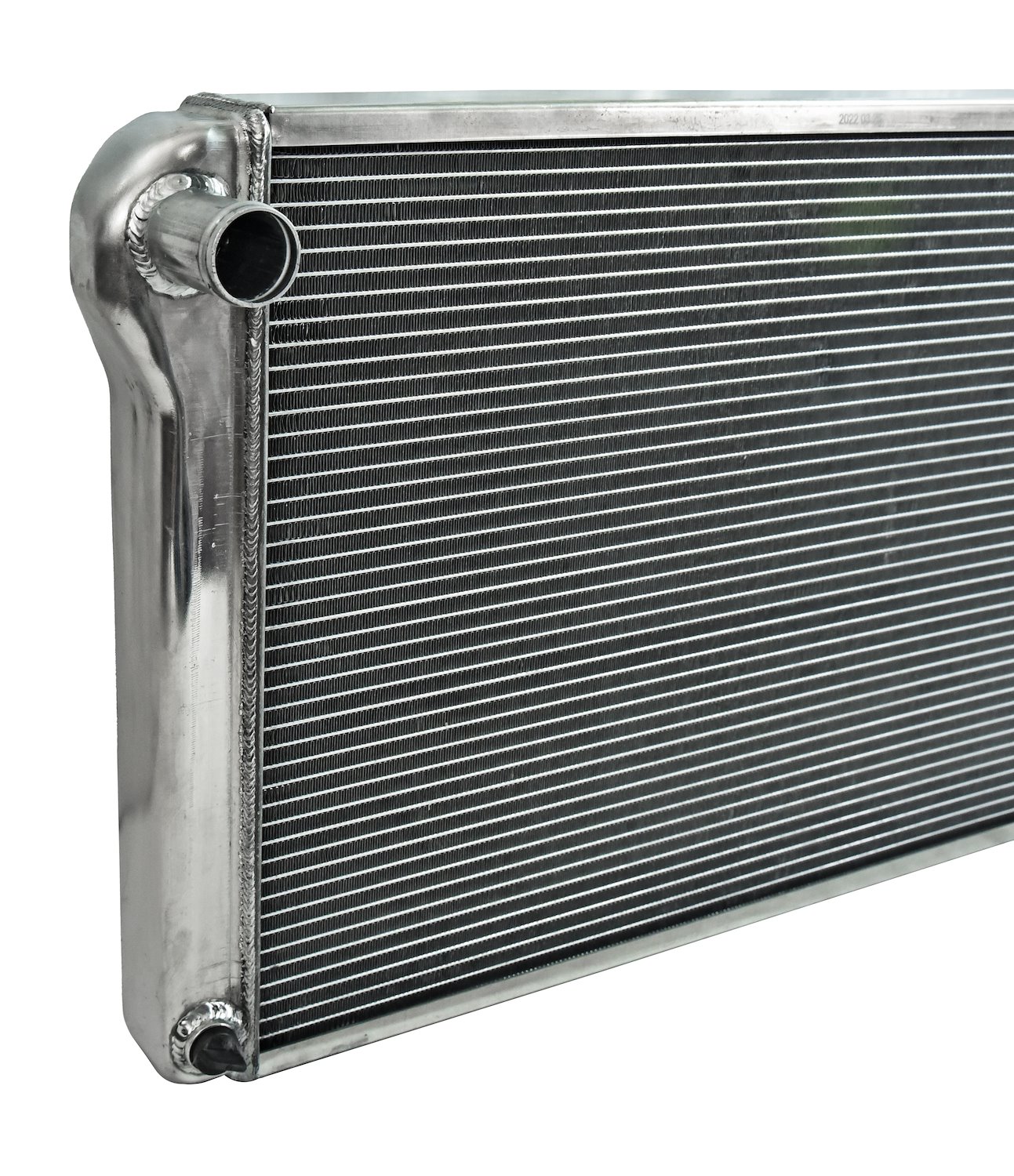

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Crossflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 26 1/4 in. Wide x 17 1/2 in. High x 2 1/4 in. Thick
    • Overall Height: 18 3/4 in.
    • Overall Width: 32 in.
    • Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
    • Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • 12 in. Dual Fans
    • Semi-Polished Finish that Can Be Easily Painted

    JEGS 555-511453 Aluminum Radiator & Fan Combor Notes:

    • Will Work with Automatic or Manual Transmission Applications
    • Contains a mesh screen in transmission cooler port toprevent large debris from entering the system
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height7.0
    Package Width22.0
    Package Length35.0
    Weight32.0 PG
    Part CategoryReplacement Parts
    Inlet Size1.500 in.
    Fan QuantityDual
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    QuantitySold as a Kit
    Inlet LocationUpper driver side
    2 Row Core Thickness2.25 in (57.15 mm)
    Core Height17.5 in (444.5 mm)
    Core Thickness2.25 in (57.15 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Fan Diameter12
    Core Width26.25 in (666.75 mm)
    Overall Width32 in (812.8 mm)
    Fan IncludedYes
    Transmission CoolerYes
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
