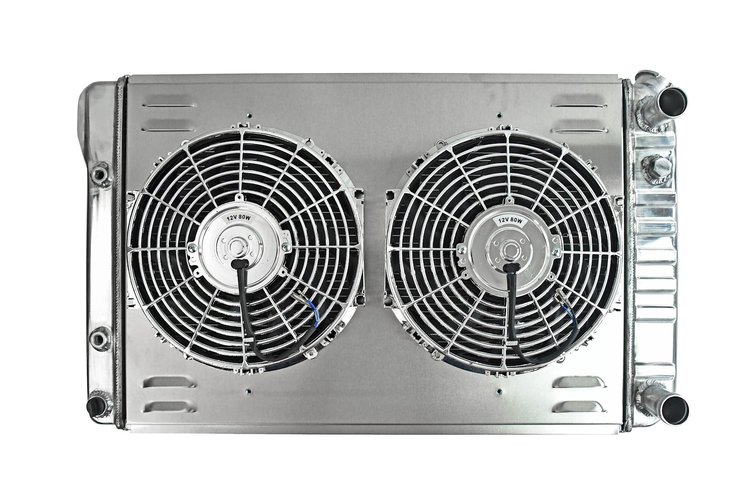

JEGS 555-511456 Aluminum Radiator & Fan Combo for GM LS Engine Conversion Features:

• Designed to Fit Select 1973-1987 Buick, Chevy & Oldsmobile Models w/GM LS Engine Conversion
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Inlet and Outlet Attached for Specific Engine Conversion

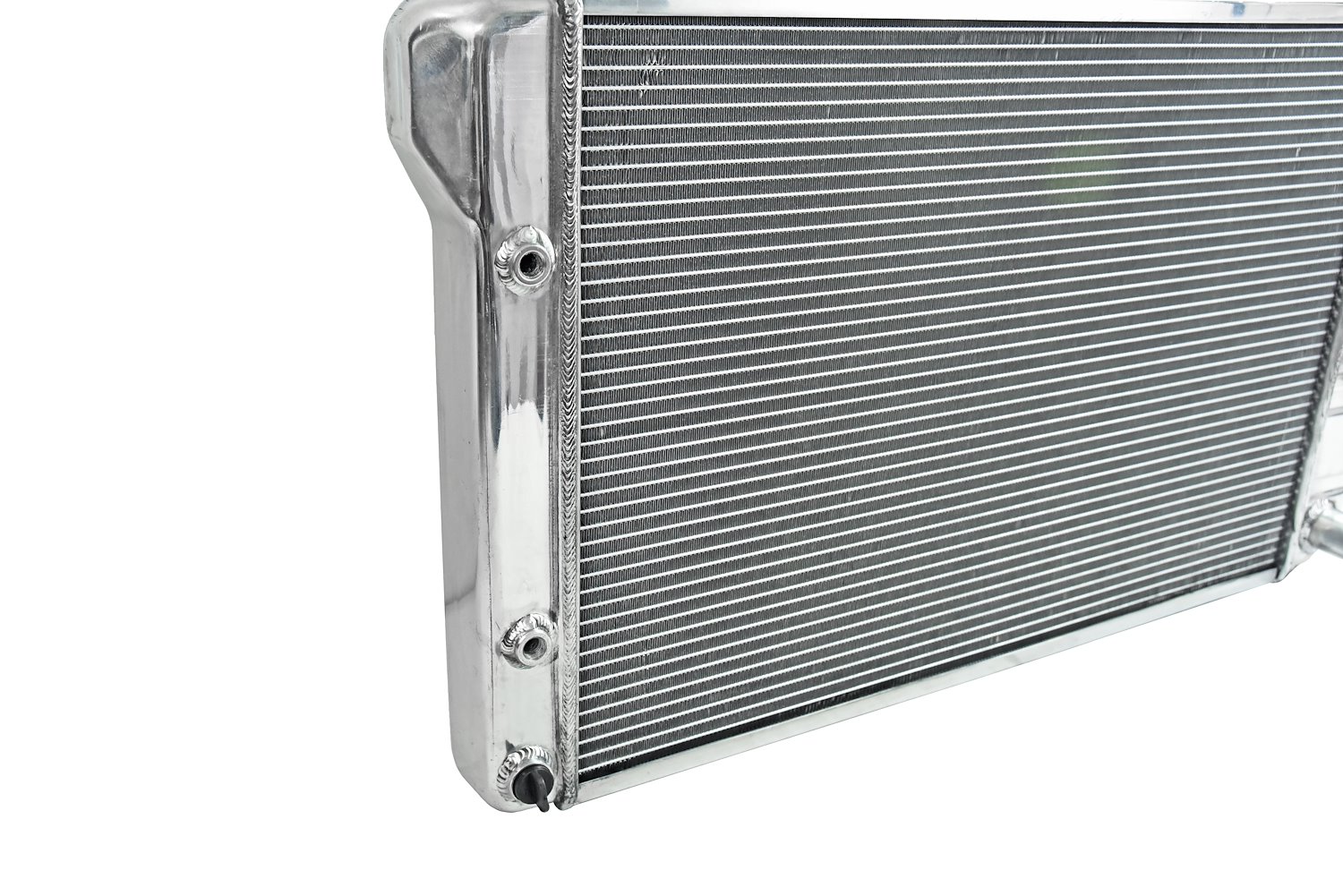

• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Crossflow Design w/Double Pass Coolant Flow
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core Width: 26 1/4 in.
• Core Height: 17 1/2 in.
• Core Thickness: 2 1/2 in.
• Overall Dimensions at Widest Point
  • Overall Width: 32 in.
  • Overall Height: 18 3/4 in.
  • Overall Thickness: 3 in.
• Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
• Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower
• Built-in Provision on Right/Passenger Side Tank for LS Engine Steam Port
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference
• Includes 2600 CFM 16 in. Diameter Single Blade Electric Fan with Aluminum Fan Shroud
• Fan Installation Requires Wiring Harness and Mounting Screws Which are Not Included and are Available Separately
• Fan Shroud Dimensions:
  • Width: 26 in.
  • Height: 19 in.
  • Thickness: 3 1/2 in.

JEGS 555-511456 Aluminum Radiator & Fan Combo for GM LS Engine Conversion Notes:

• Will Work with Automatic or Manual Transmission Applications
• A High Volume Water Pump is Also Suggested
